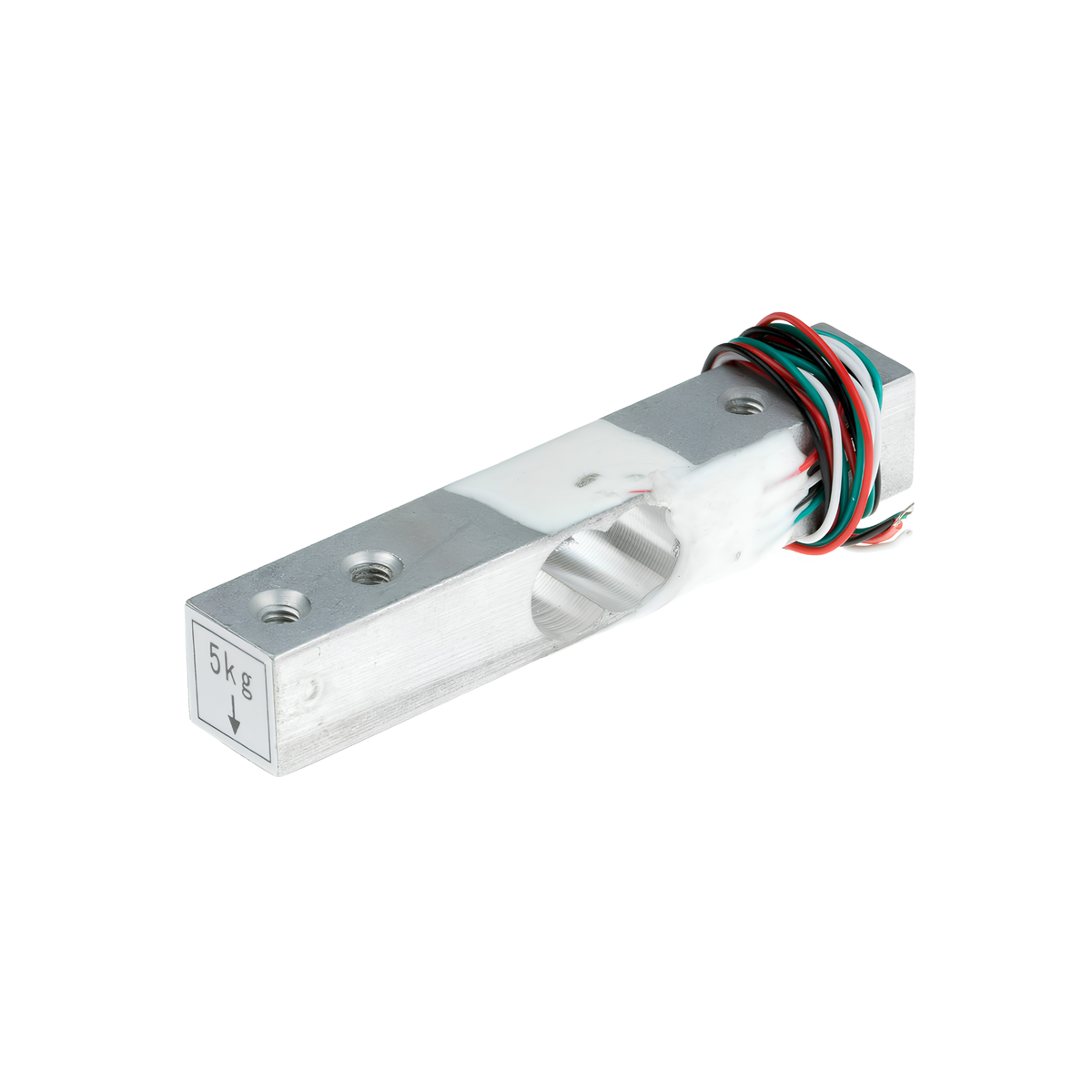

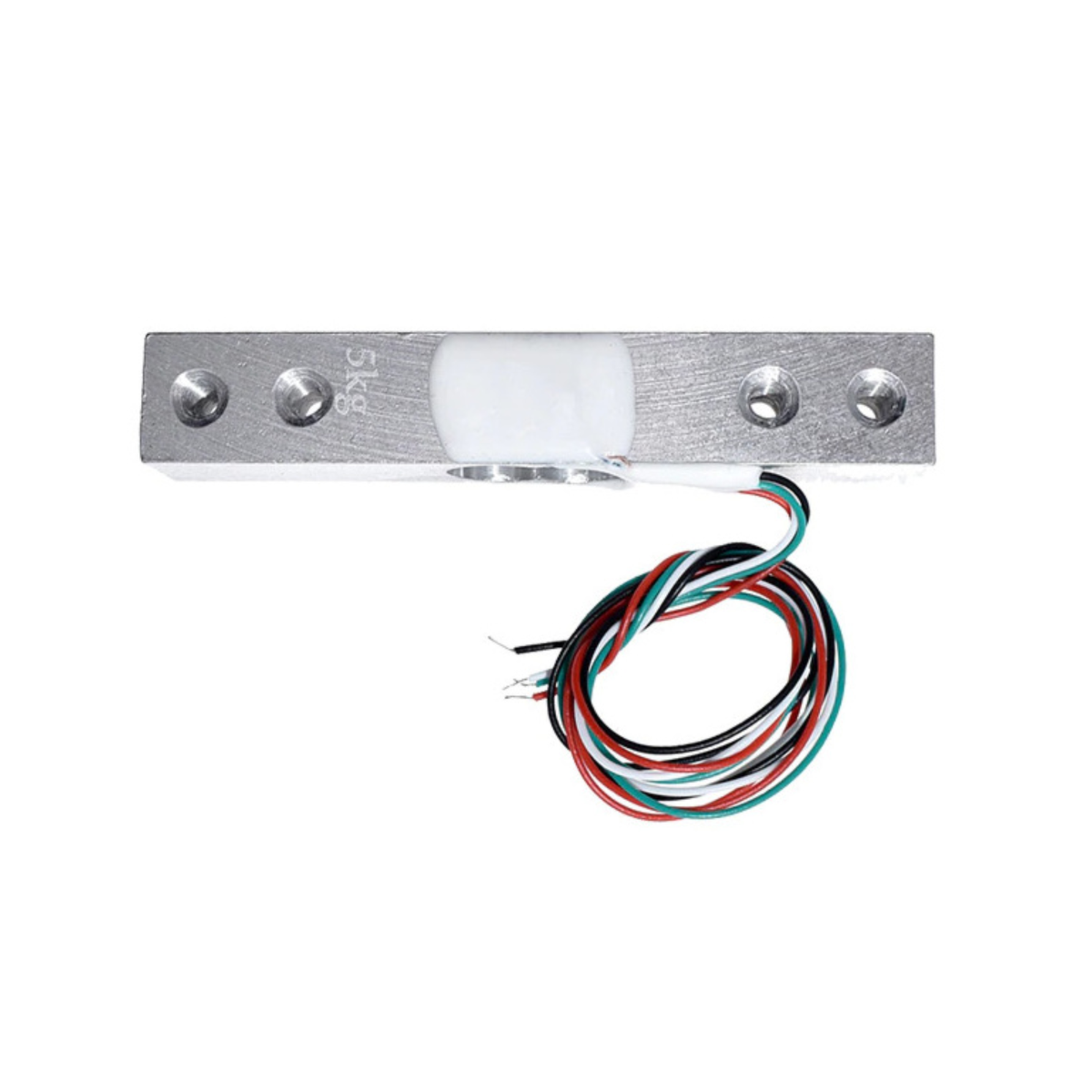

The 5Kg YZC131 Miniature Load Cell is a compact strain gauge weight sensor designed for measuring force and weight up to 5 kg. It converts mechanical deformation caused by an applied load into a small electrical signal that can be processed using a suitable load cell amplifier such as the HX711. Its compact aluminium bar construction makes it suitable for electronic weighing systems, DIY scales, automation projects and embedded measurement applications.

The 5Kg YZC131 Miniature Load Cell features a four-wire connection and a compact beam-type design for easy installation in space-constrained weighing systems. When correctly mounted and calibrated, it can provide stable and repeatable measurements for small platform scales, laboratory projects, dispensing systems and microcontroller-based weighing applications.

Technical Features:

• Model: YZC131
• Sensor Type: Strain Gauge Load Cell
• Rated Capacity: 5 kg

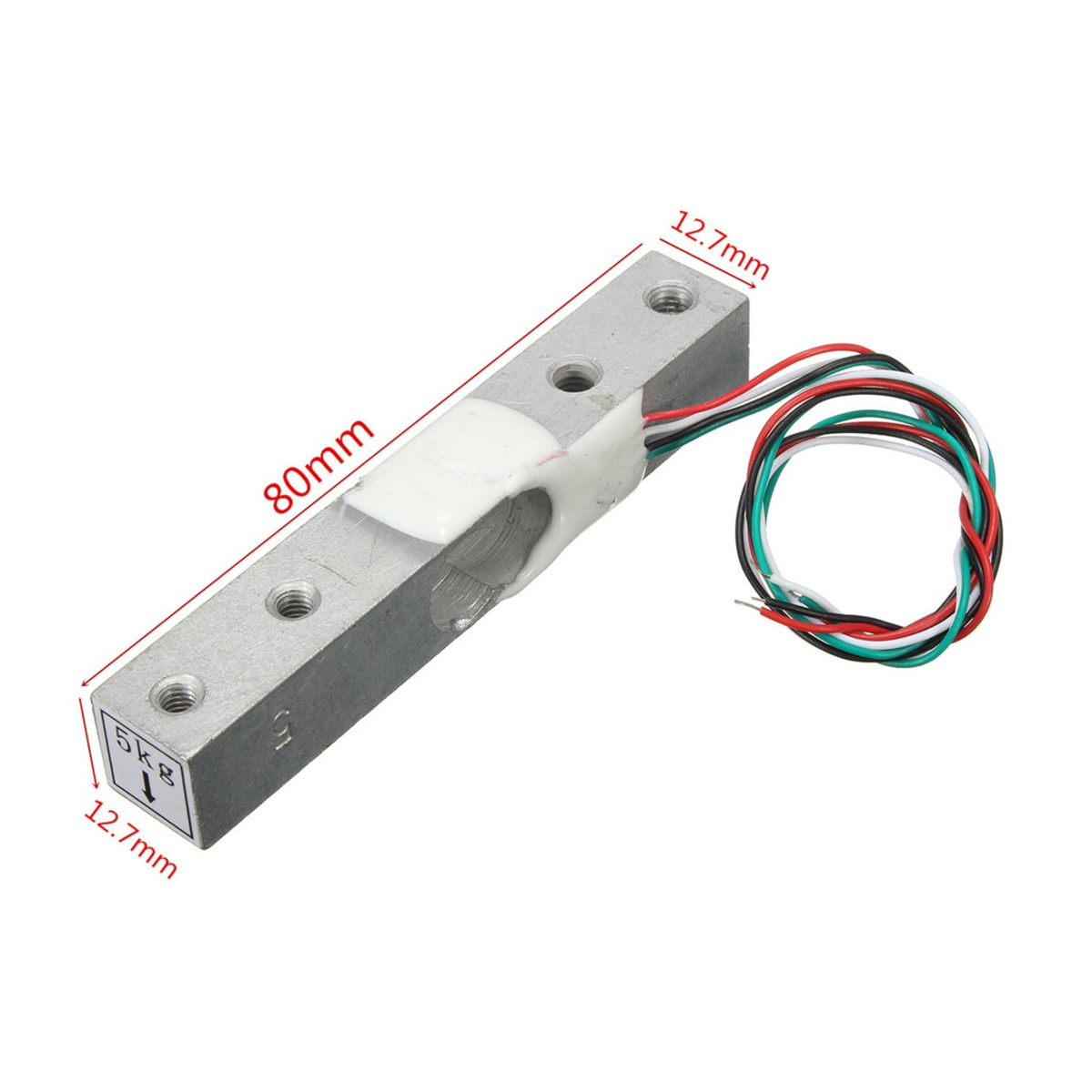

• Approx. Size: 80 x 12.7 x 12.7 mm
• Construction: Aluminium Alloy
• Connection: 4-Wire Output
• Output Type: Analog Differential Signal
• Compact bar-type load cell construction
• Compatible with load cell amplifier modules such as HX711

Features:

• Measures loads up to 5 kg
• Compact and lightweight design
• Four-wire strain gauge configuration
• Suitable for electronic weighing applications
• Easy integration with Arduino and other microcontrollers
• Suitable for compact weighing and force measurement systems
• Designed for stable and repeatable measurements

Applications:

• Digital weighing scales
• Small platform scales
• Kitchen weighing systems
• Arduino and microcontroller projects
• Force measurement systems
• Automatic dispensing machines
• Industrial weighing prototypes
• Laboratory and educational projects
