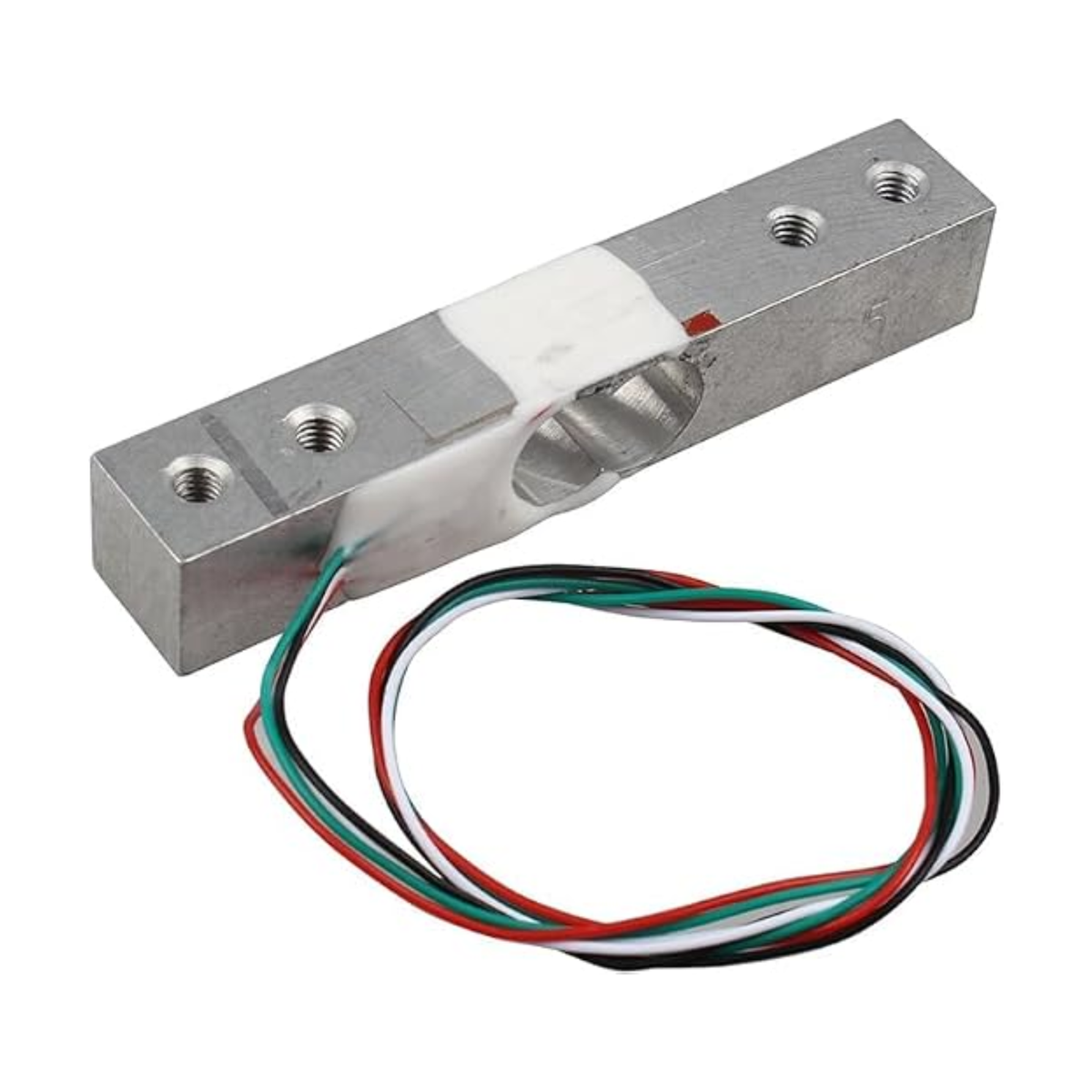

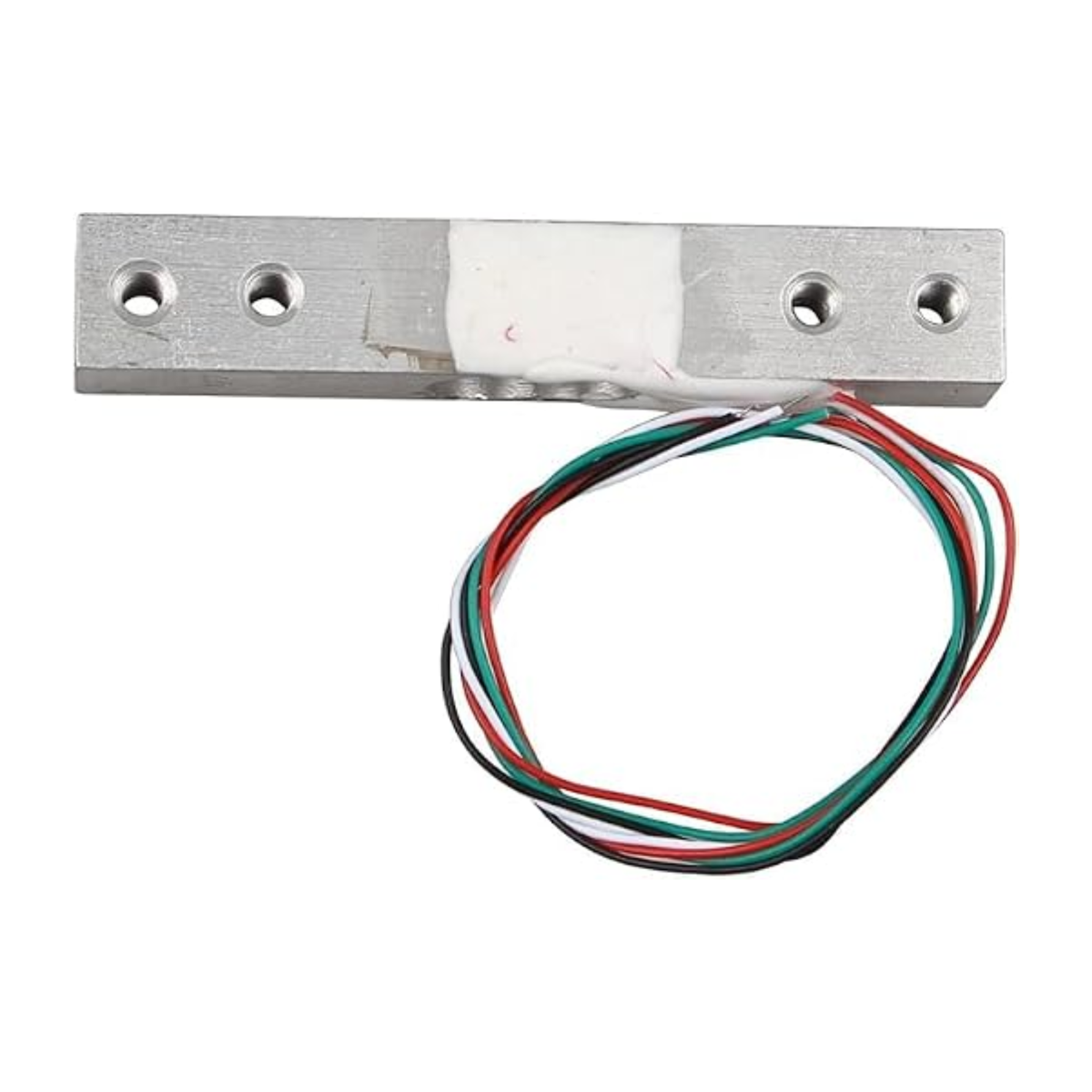

YZC-131 20Kg Weighing Load Cell Sensor

The YZC-131 20Kg Weighing Load Cell Sensor is a compact strain-gauge load sensor designed for accurate weight and force measurement up to 20 kg. It converts mechanical load or deformation into a small electrical signal that can be amplified and processed by a load-cell amplifier such as the HX711. Its durable aluminium construction, four-wire connection and compact bar design make it suitable for electronic weighing scales, DIY weighing systems, automation projects and embedded measurement applications.

Technical Features:

• Model: YZC-131
• Rated Load Capacity: 20 kg
• Sensor Type: Strain Gauge Load Cell
• Rated Output: Approximately 1.0 mV/V
• Recommended Excitation Voltage: 5V DC
• Connection: 4-Wire Wheatstone Bridge
• Material: Aluminium Alloy
• Output Type: Low-Level Analog Differential Signal
• Compatible ADC: HX711 or similar load-cell amplifier
• Operating Principle: Resistance change caused by mechanical strain

Features:

• Measures loads up to 20 kg
• Compact and lightweight bar-type construction
• Provides stable millivolt-level output
• Four-wire interface for easy connection
• Suitable for precision weighing applications
• Easy integration with Arduino and other microcontrollers using HX711
• Durable aluminium body
• Suitable for DIY and industrial weighing projects

Applications:

• Electronic weighing scales
• Kitchen and platform scales
• DIY digital weighing systems
• Force and load measurement
• Arduino and microcontroller projects
• Industrial weighing equipment
• Robotics and automation systems
• IoT-based weight monitoring systems
