Description

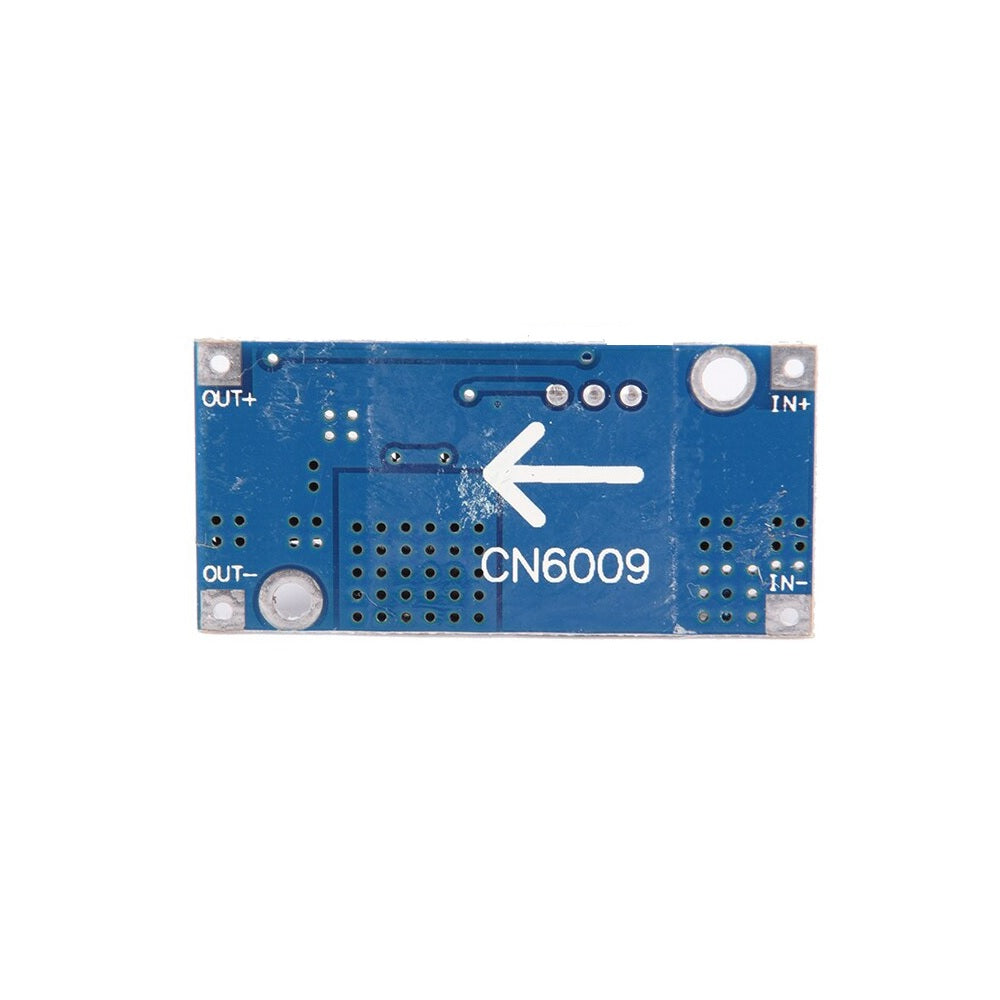

This DC-DC switching boost converter is capable of driving a 4A load with excellent line and load regulation. The main switching component XL6009 IC is available in fixed output voltages of 3.3 V, 5V, 12V, and an adjustable output version. It is an efficient switching regulator and the output efficiency is significantly higher in comparison with the popular boost regulators. At higher input voltages, the regulator operates at a switching frequency of 400kHz thus allowing the overall board size to be smaller and space-saving
Technical Specification:
- Input voltage: 3 - 32V
- Output voltage: 5 - 35V (adjustable)
- Load regulation: 0.5%
- Voltage regulation: 0.5%
- Size: 45mm*20mm*14 mm (L*W*H)
Features:
- Adjustable potentiometer onboard for output voltage adjustment
- Non - isolated constant voltage module
- Non - synchronous rectification
- Short circuit proportion: current limiting since the recovery
Applications:
- DIY based power supply
- To serve the power requirements of Audio-based circuits
- High current applications with small space
