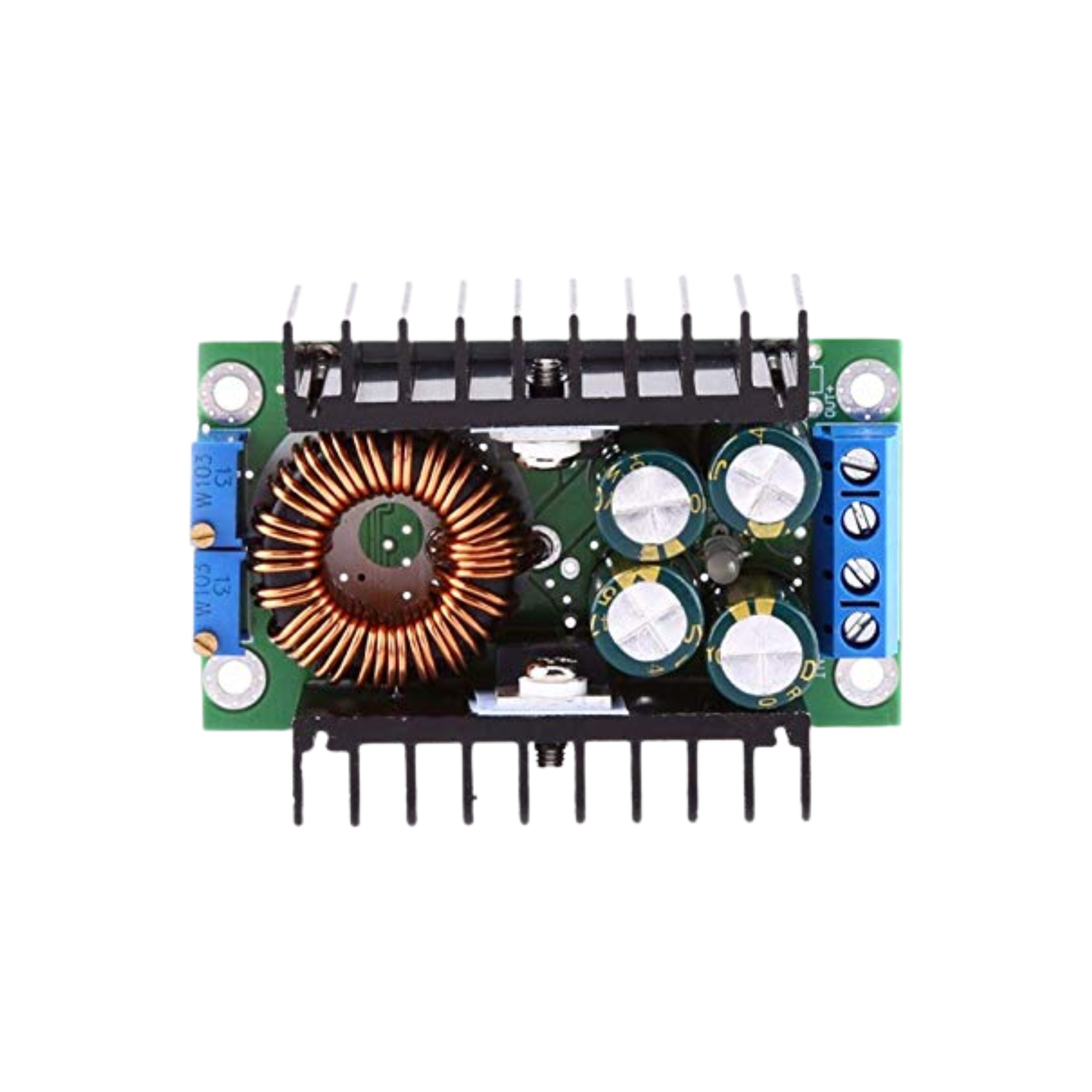

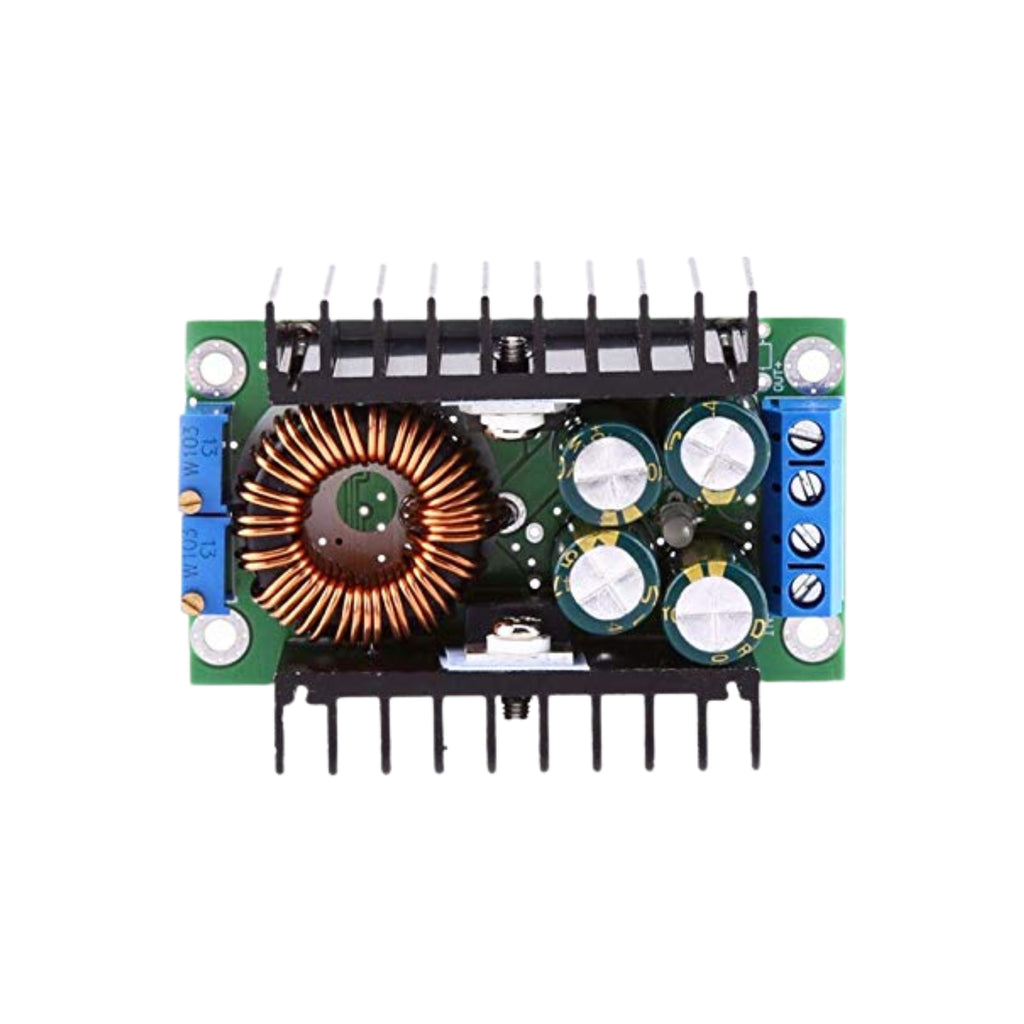

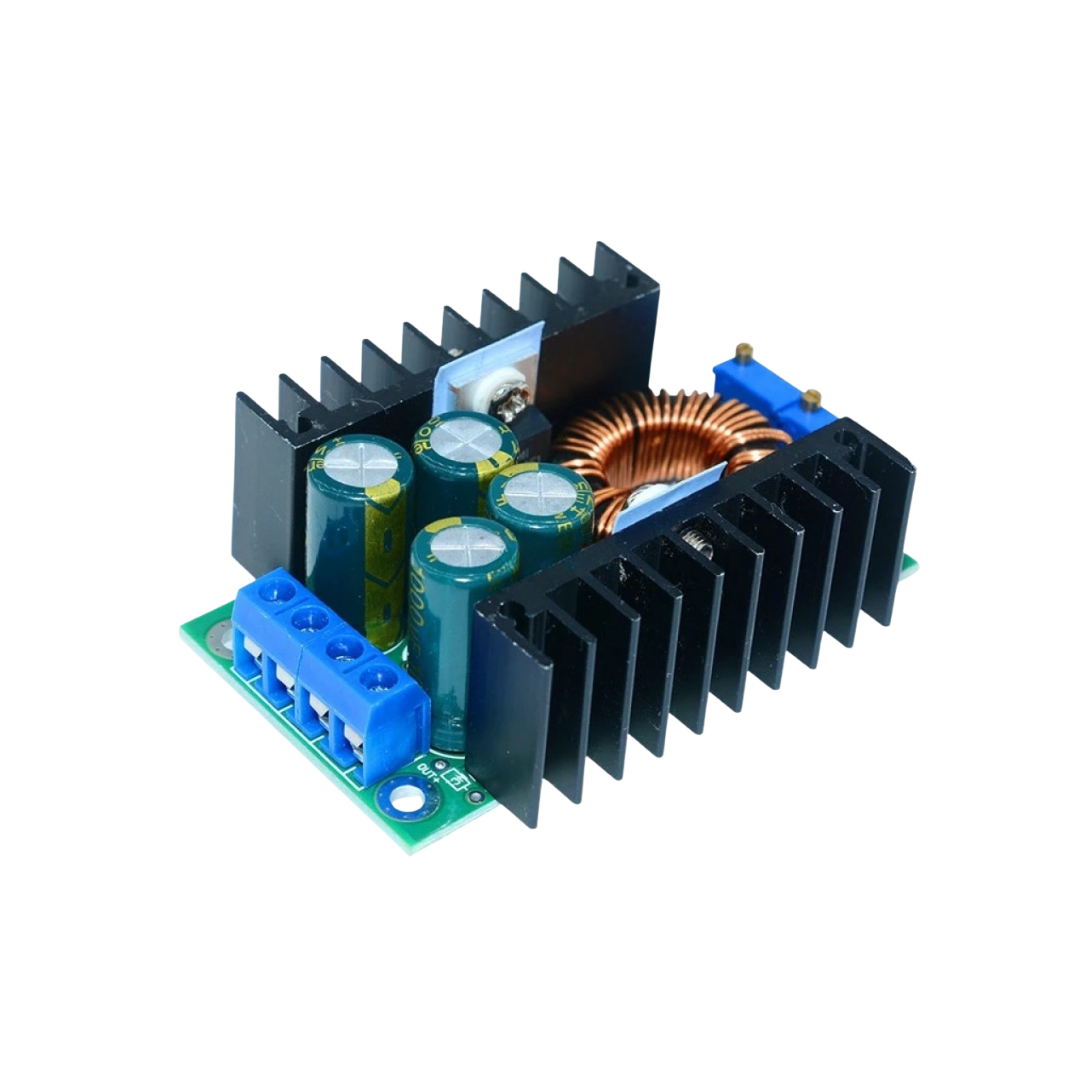

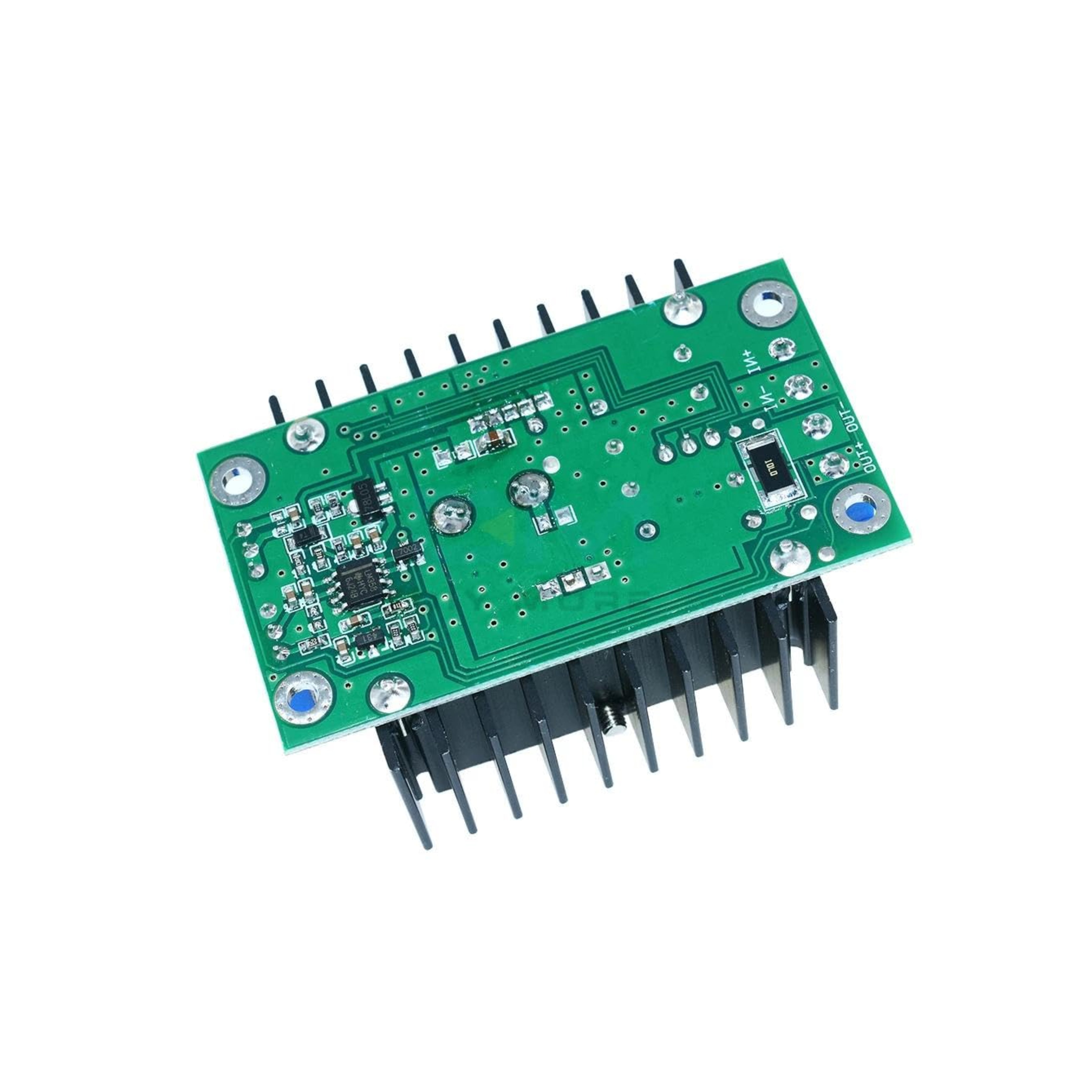

XL4016E1 DC-DC 300W 10A Step Down Module

The XL4016E1 DC-DC Step Down Module is a high-power buck converter designed to efficiently reduce higher DC voltages to lower adjustable output voltages. Based on the XL4016E1 switching regulator IC, the module supports high current output and high conversion efficiency, making it suitable for power supply applications, battery charging systems, LED drivers, robotics, and industrial electronics.

The module includes large heat sinks and high-current components to ensure stable operation under heavy loads. Adjustable voltage and current settings allow flexible use in a wide range of DC power conversion applications.

Technical Specifications:

• Module Type: DC-DC Buck (Step Down) Converter

• Controller IC: XL4016E1

• Input Voltage Range: 8V to 40V DC

• Output Voltage Range: 1.25V to 36V DC adjustable

• Maximum Output Current: 10A

• Maximum Output Power: 300W

• Conversion Efficiency: Up to 95%

• Switching Frequency: Approximately 180KHz

Features:

• High power 300W DC-DC step down converter

• Supports output current up to 10A

• Adjustable output voltage and current

• High conversion efficiency up to 95%

• Integrated heat sinks for better thermal management

• Stable and reliable switching performance

• Compact module design for embedded applications

• Suitable for battery charging and power regulation

• Supports continuous heavy-load operation

• Easy screw terminal connections for input and output

Applications:

• Battery charging systems

• Solar power systems

• LED power supplies

• Industrial automation equipment

• Robotics and motor control

• Embedded electronics power regulation

• DIY laboratory power supplies

• Automotive DC voltage conversion

• Communication equipment power management

• Portable electronic devices
