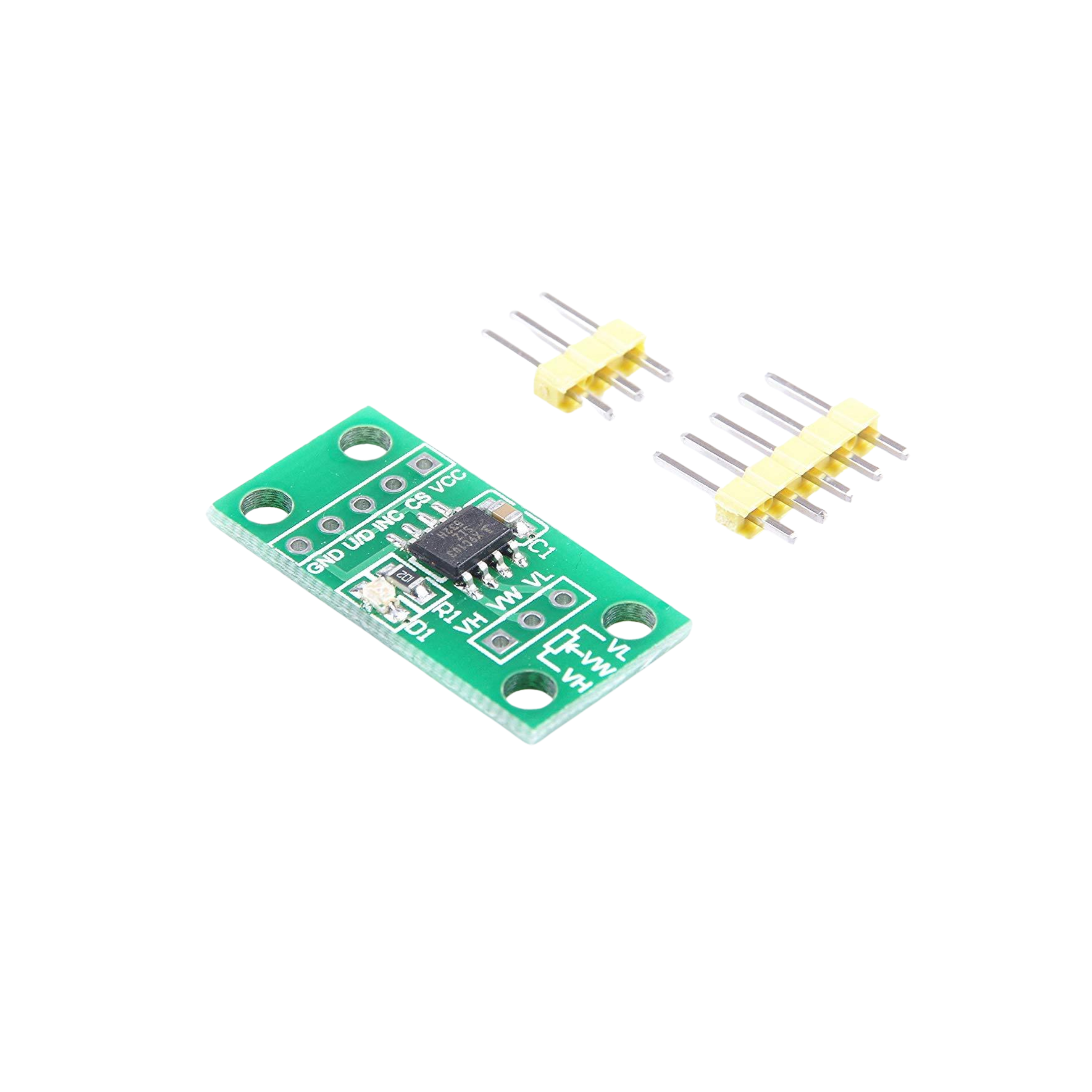

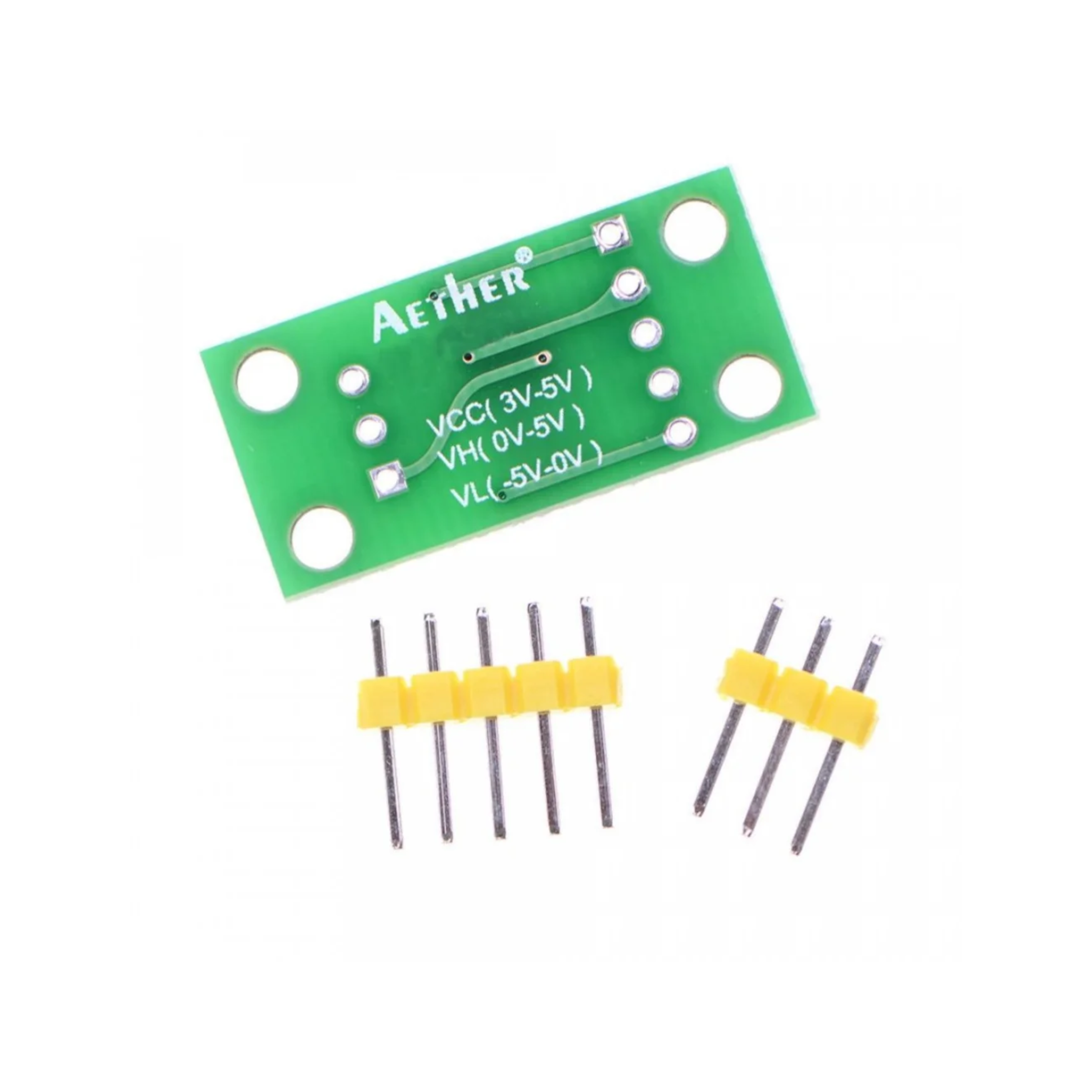

X9C103S Digital Potentiometer Module

The X9C103S Digital Potentiometer Module is a programmable 10KΩ digital resistor module with 100 adjustment steps. It allows electronic resistance control using digital signals instead of manual rotation. The module features non-volatile memory to retain settings after power loss and is compatible with Arduino, ESP32, ESP8266, STM32, and other microcontrollers for signal adjustment, calibration, and automation applications.

Technical Specifications:

• Product Type: X9C103S Digital Potentiometer Module
• Potentiometer IC: X9C103S
• Resistance Value: 10KΩ
• Resolution: 100 Tap Positions
• Interface Type: Digital Up/Down Control

Electrical Specifications:

• Operating Voltage: 3V to 5V DC
• End-to-End Resistance: 10KΩ
• Wiper Resistance: Typical 40Ω
• Non-Volatile Memory: Stores Last Wiper Position
• Increment/Decrement Control: Via INC, U/D, and CS Pins

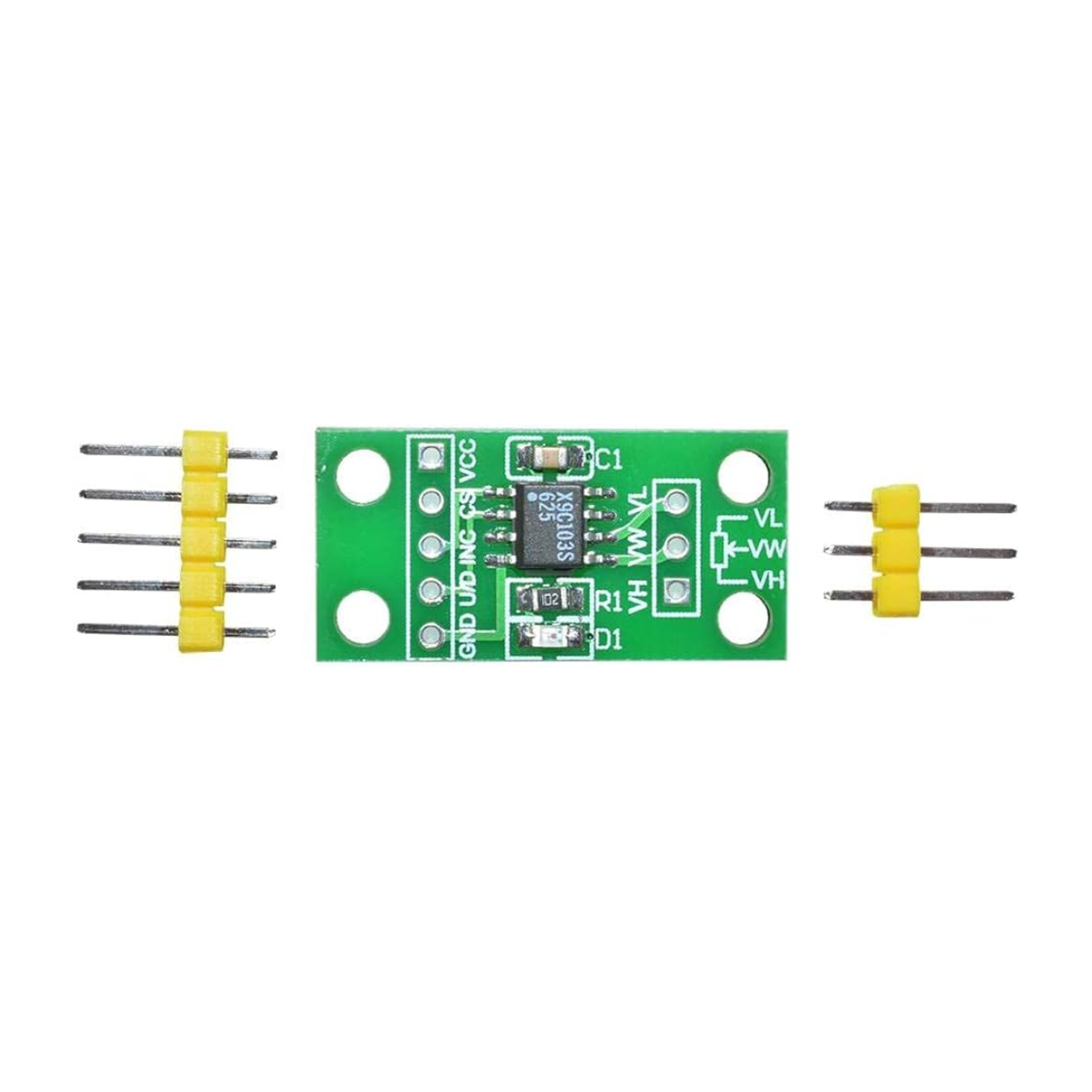

Interface Pins:

• VCC – Power Supply
• GND – Ground
• INC – Increment Input
• U/D – Up/Down Direction Control
• CS – Chip Select
• VH – High Terminal
• VW – Wiper Terminal
• VL – Low Terminal

Features:

• 100-Step Digital Resistance Adjustment
• Non-Volatile Wiper Storage
• Low Power Consumption
• Compact PCB Design
• Easy MCU Interfacing

Physical Specifications:

• PCB Mount Type: Through Hole
• Mounting Holes: 4
• Compact Module Size
• Includes Header Pins

Applications:

• Volume Control
• Contrast Adjustment
• Signal Calibration
• Programmable Gain Circuits
• Sensor Calibration Systems
• Embedded Electronics Projects
