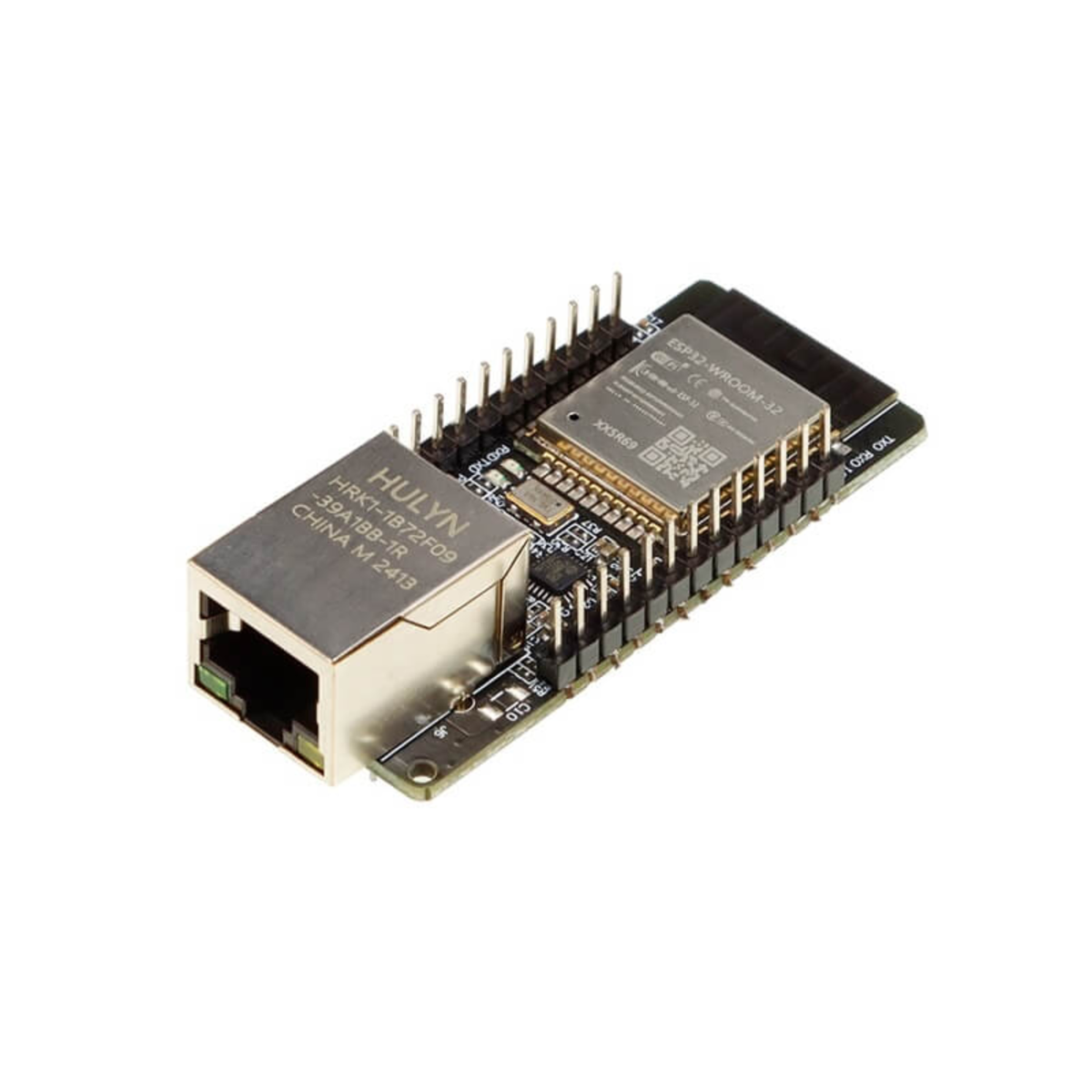

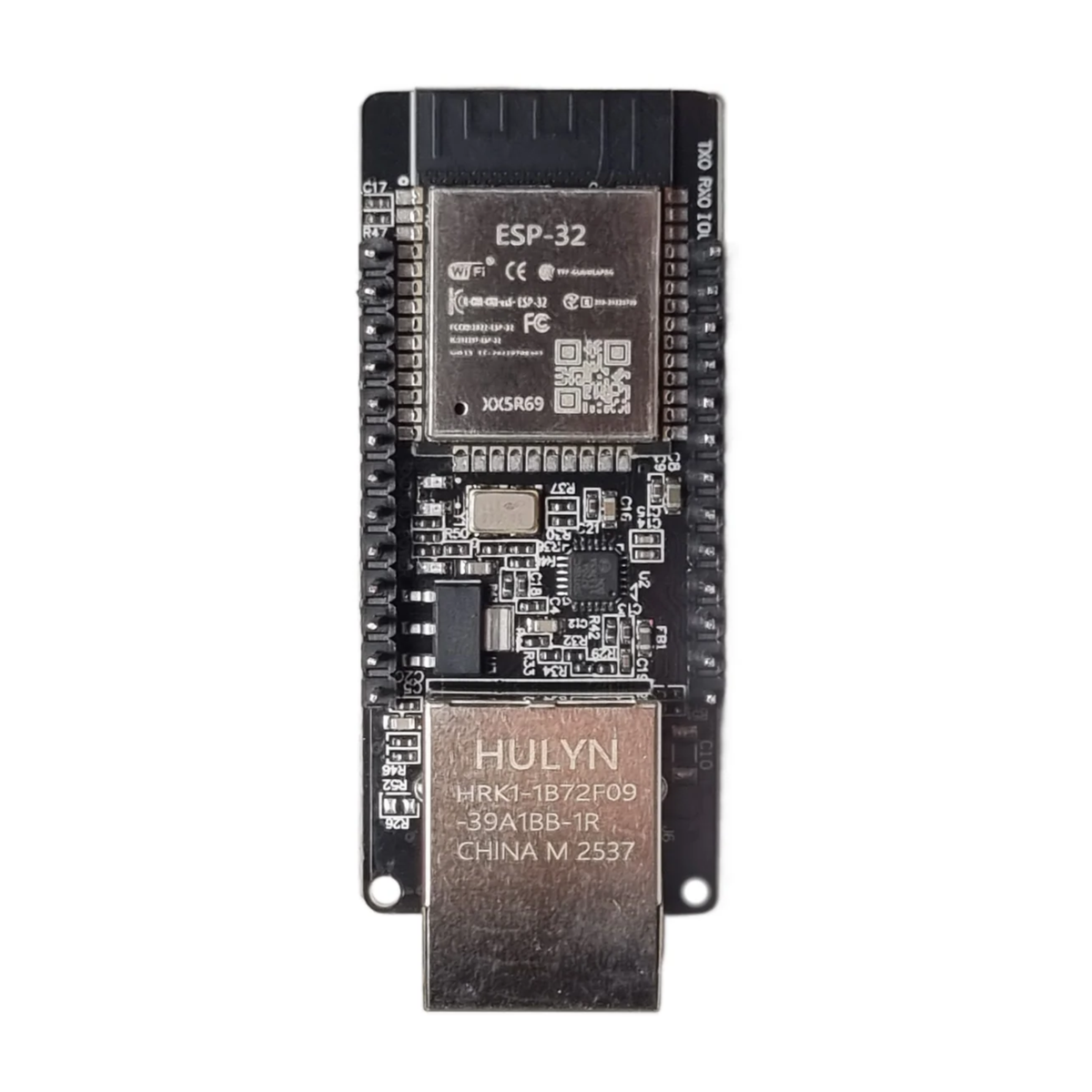

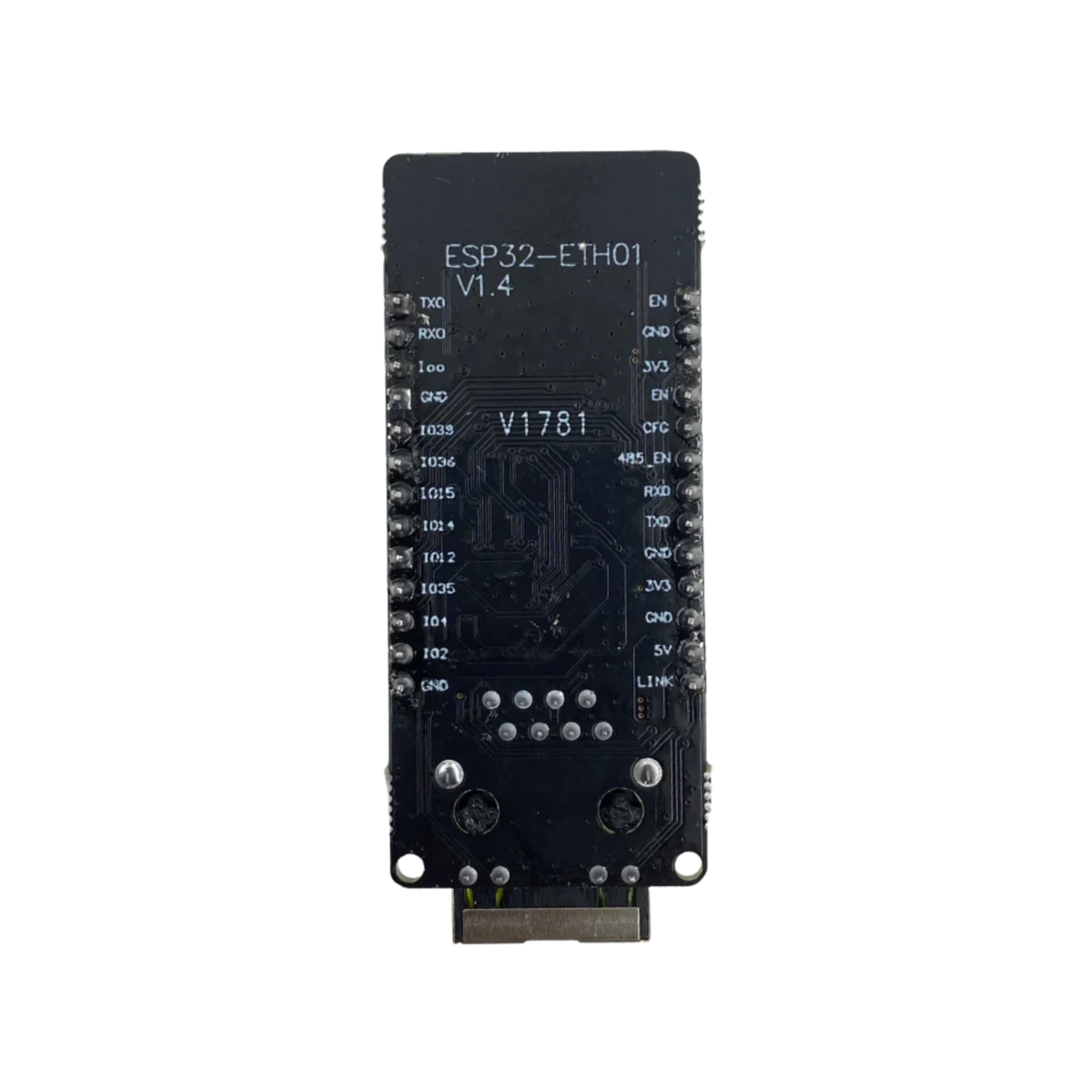

WT32-ETH01 ESP32 Ethernet Module with LAN8720

The WT32-ETH01 ESP32 Ethernet Module with LAN8720 is a compact development module that combines an ESP32 microcontroller with an onboard LAN8720 Ethernet PHY and RJ45 connector. It supports both wired Ethernet and 2.4 GHz Wi-Fi connectivity, making it suitable for stable networked IoT and automation applications. The module provides accessible GPIO, UART and power pins for connecting sensors, relays and other peripherals. Its Ethernet capability makes it useful where a reliable wired network connection is preferred over Wi-Fi.

Technical Specifications:

• Controller: ESP32 dual-core processor, up to 240 MHz
• Ethernet PHY: LAN8720A
• Ethernet: 10/100 Mbps RJ45 connection
• Flash Memory: 4 MB
• Power Supply: 5V or 3.3V

Features:

• Integrated LAN8720 Ethernet PHY
• Built-in RJ45 Ethernet connector
• Supports Wi-Fi and Bluetooth connectivity
• Provides GPIO and UART expansion pins
• Compact design for embedded networking projects

Applications:

• Wired IoT devices and gateways
• Home and industrial automation
• Ethernet-connected sensor systems
• Network monitoring and control projects
• ESP32 web servers and embedded applications
