Description

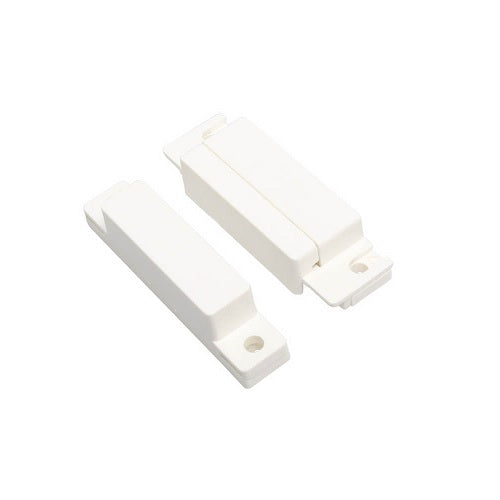

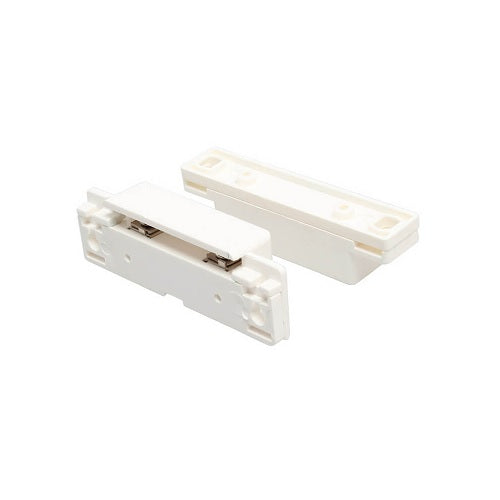

These devices are made up of two parts, which form a circuit when they’re kept parallel to each other. When someone opens the door, the two parts separate and break the circuit, which triggers the control panel to sound an alarm.
Technical Specification:
- Switch pattern: NO Normally Open
- Max Voltage: 100V DC, 0.3A
- Max Rated power: 10W
- Sensing Distance: 10-15mm Approx. if you need a longer range please use an external stronger magnet.
- Mounting method: SMD (by screws or double-sided tapes)
- Color: White
- Dimension: 64mm*20mm*13 mm (L*W*H)
Features:
- Easy to install
- Strong concealment
Applications:
- Magnet sensing applications
- Door lock sensors
- Drawer lock sensors
- Window Lock Sensors
