MS2 Wired Door Window Sensor Magnetic NO/NC Switch Home Alarm System

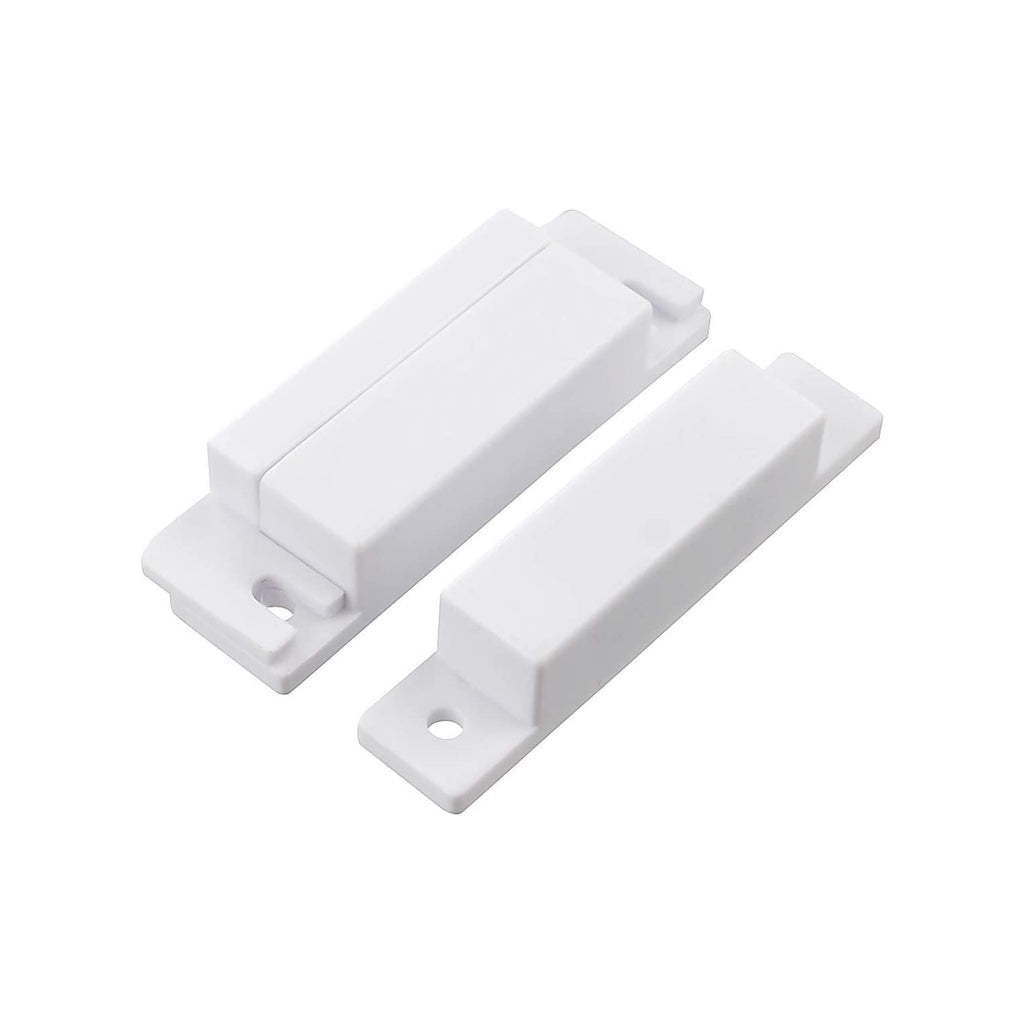

The MS-2 Magnetic Reed Switch (NC/NO) is a surface-mount rectangular contact sensor designed for security and automation systems. It consists of two units: a reed switch with wire terminals and a magnet. This model supports dual wiring modes – NC (Normally Closed) and NO (Normally Open) – offering flexibility for different security system requirements. When the door/window is closed, the magnet keeps the reed contact stable; when opened, the circuit changes state, triggering an alarm or controller.
Technical Specifications:
- Model: MS-2 (NC/NO)
- Type: Magnetic Reed Switch (Selectable NC/NO)
- Housing Material: ABS plastic
- Shape: Rectangular surface-mount with screw holes
- Color: White

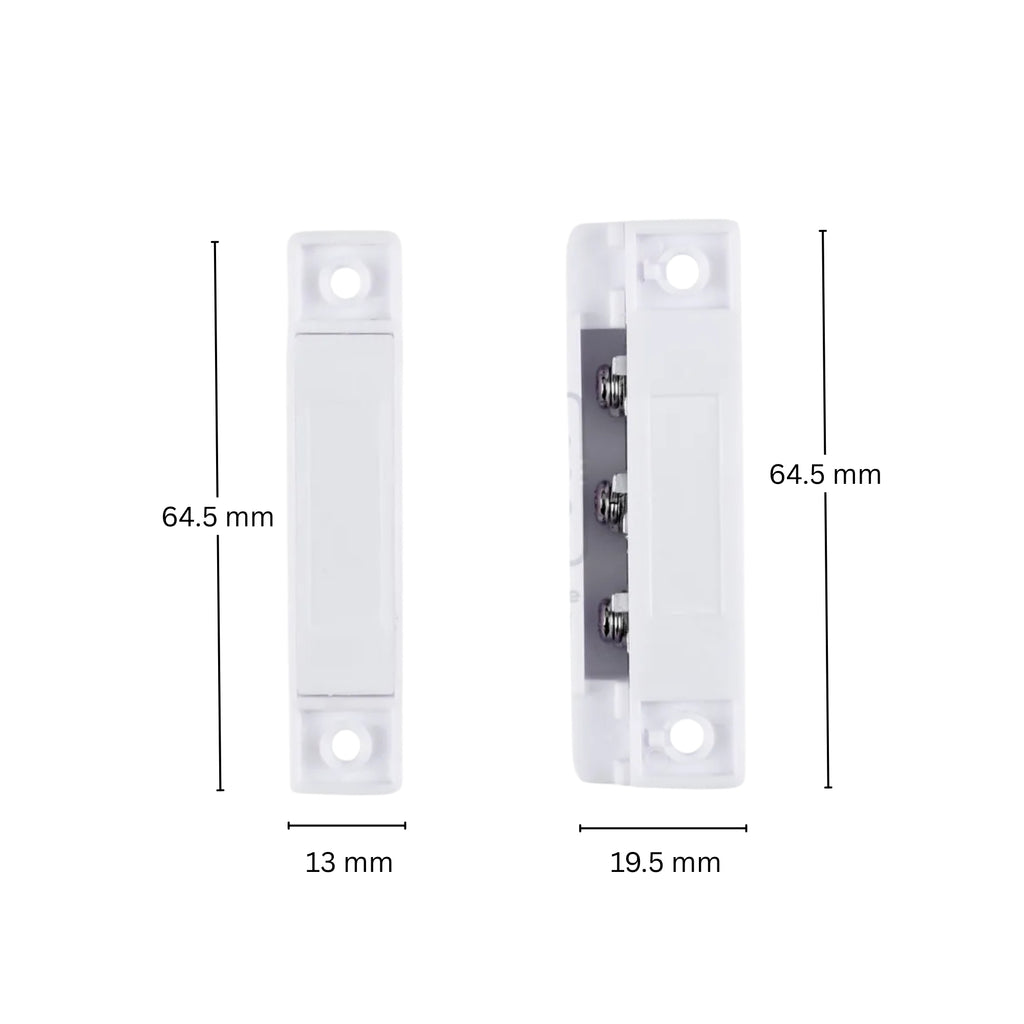

- Dimensions:
- Switch Part: 64.5 mm × 19.5 mm
- Magnet Part: 64.5 mm × 13 mm
- Contact Rating: 100 mA @ 100 V DC (typical)
- Operating Gap (Sensing Distance): 20–30 mm
- Wire Connection: Screw terminals with 3-wire option for NC/NO
- Switch Type: Reed contact (dual mode NC or NO)
- Installation: Surface mount with screws (included)
Features:
- Dual operation: NC (Normally Closed) and NO (Normally Open) via wiring
- Large surface-mount rectangular design for robust applications
- Wide sensing distance for reliable detection
- Screw terminals for secure wire connection
- ABS housing ensures durability and long service life
- Easy installation with mounting screws
- Works with most wired alarm and automation systems
Applications:
- Home Security: Detects unauthorized door/window openings
- Commercial Use: Offices, shops, and showrooms with access control systems
- Industrial Use: Cabinets, rolling shutters, and entry gates
- Retail Stores: Monitoring of showcases and storerooms
- Automation Systems: Integration with smart home and IoT-based security systems
