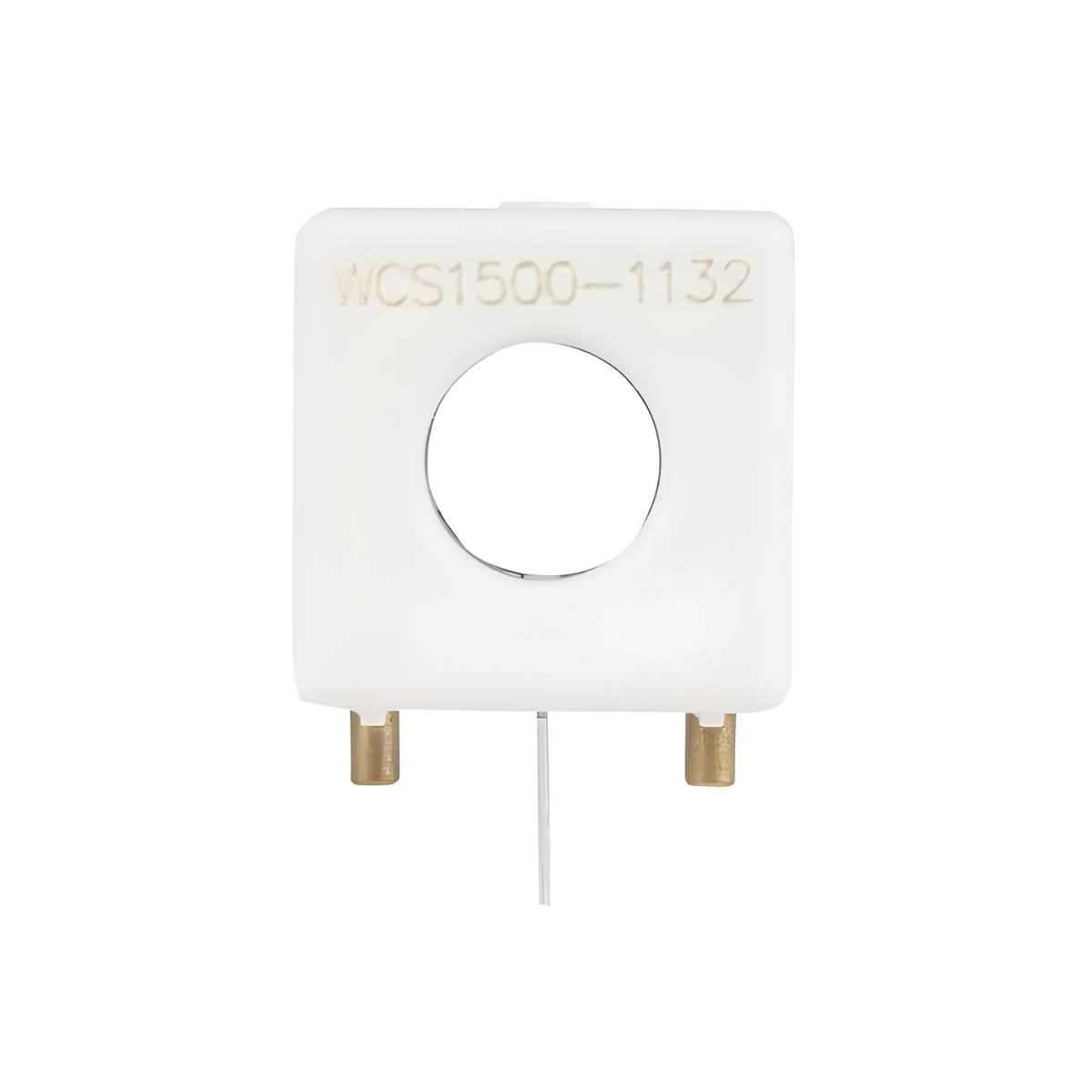

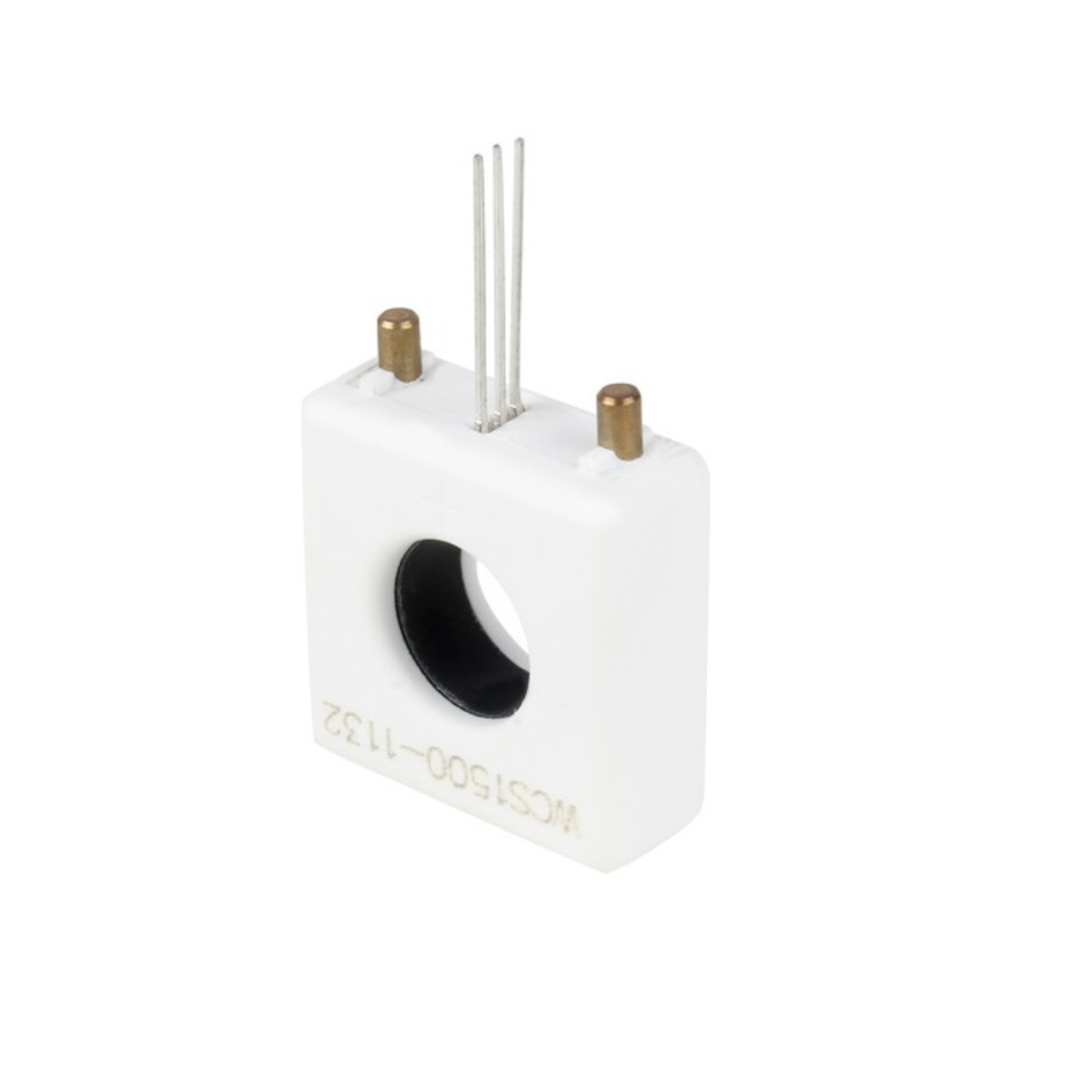

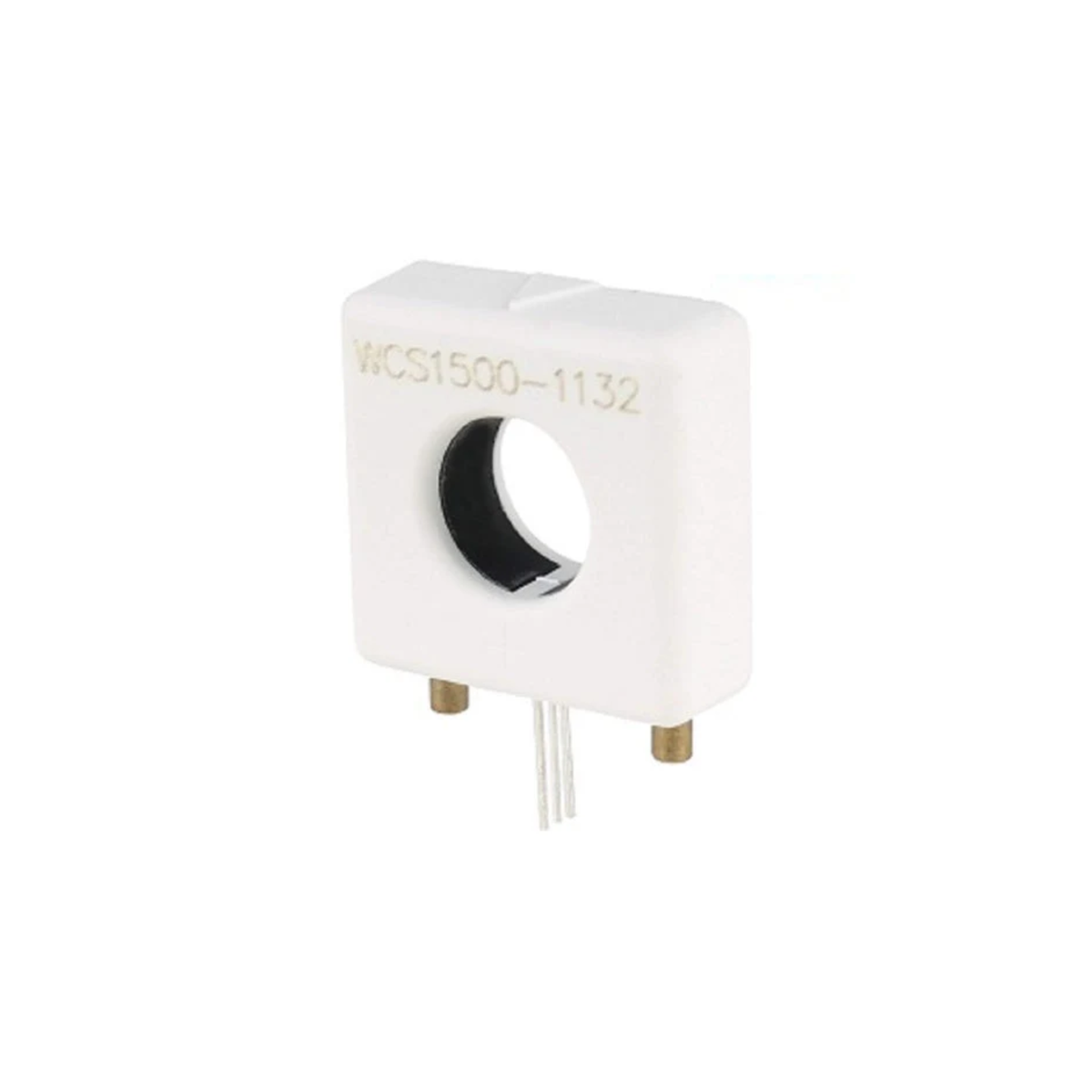

WCS1500 200A Current Sensor

The WCS1500 200A Current Sensor is a Hall-effect based linear current sensor designed for measuring both AC and DC current. It features a 9 mm conductor through-hole, allowing the current-carrying wire to pass directly through the sensor without interrupting the circuit. The sensor provides an analog output voltage proportional to the measured current, making it suitable for monitoring, protection and power-management applications.

Technical Specifications:

• Model: WCS1500
• Sensor Type: Hall Effect Linear Current Sensor
• DC Current Range: Up to ±200A
• AC Current Range: Up to 150A RMS
• Operating Voltage: 3V to 12V
• Sensitivity: Approx. 12mV/A
• Conductor Through-Hole Diameter: 9mm
• Bandwidth: Approx. 23kHz
• Operating Temperature: -20°C to +125°C
• Isolation Voltage: 4000V

Features:

• Measures both AC and DC current
• Analog output proportional to current
• Wide current sensing range
• Electrical isolation between current path and sensor circuitry
• Large 9mm opening for conductor routing
• Low operating current
• Ratiometric output referenced to supply voltage
• PCB-friendly mounting design

Applications:

• Motor current monitoring
• Over-current protection systems
• Load detection and management
• Battery and power monitoring
• Industrial control systems
• Smart energy monitoring
• Power supplies and converters
• Current measurement and test equipment
