Description

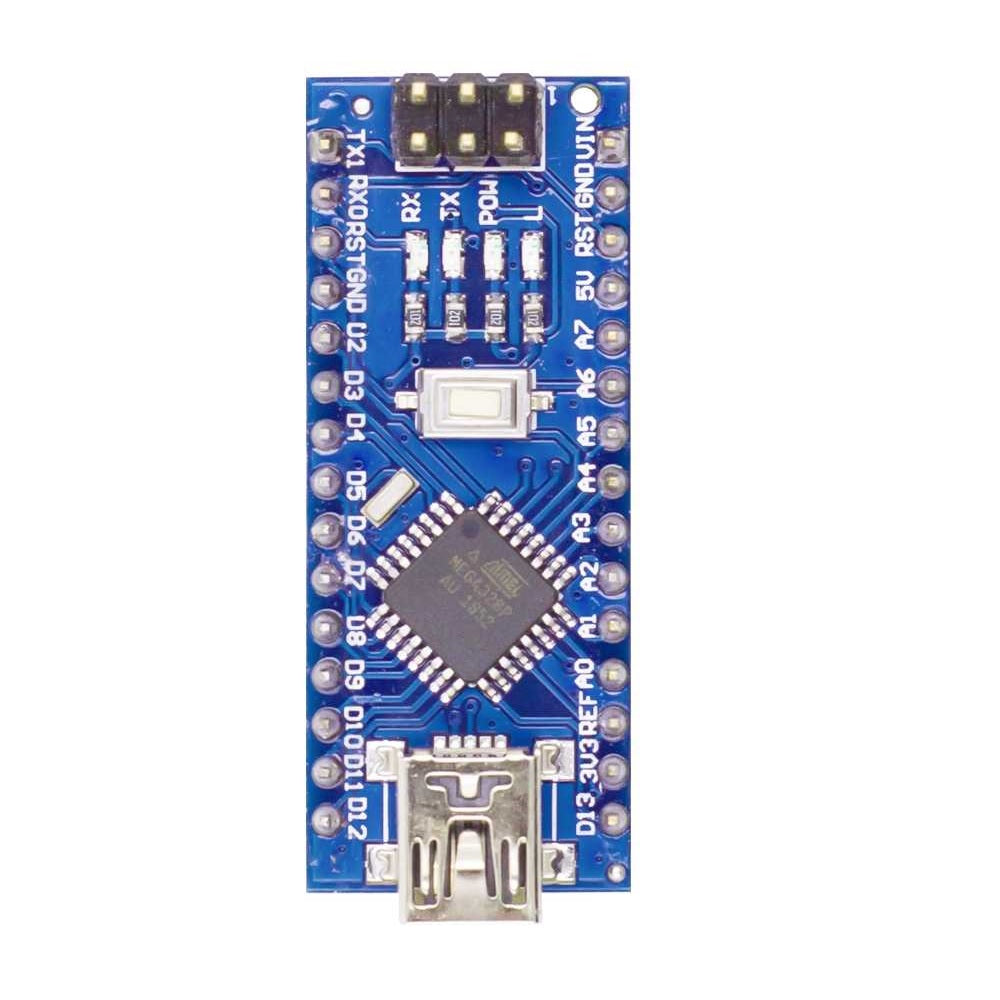

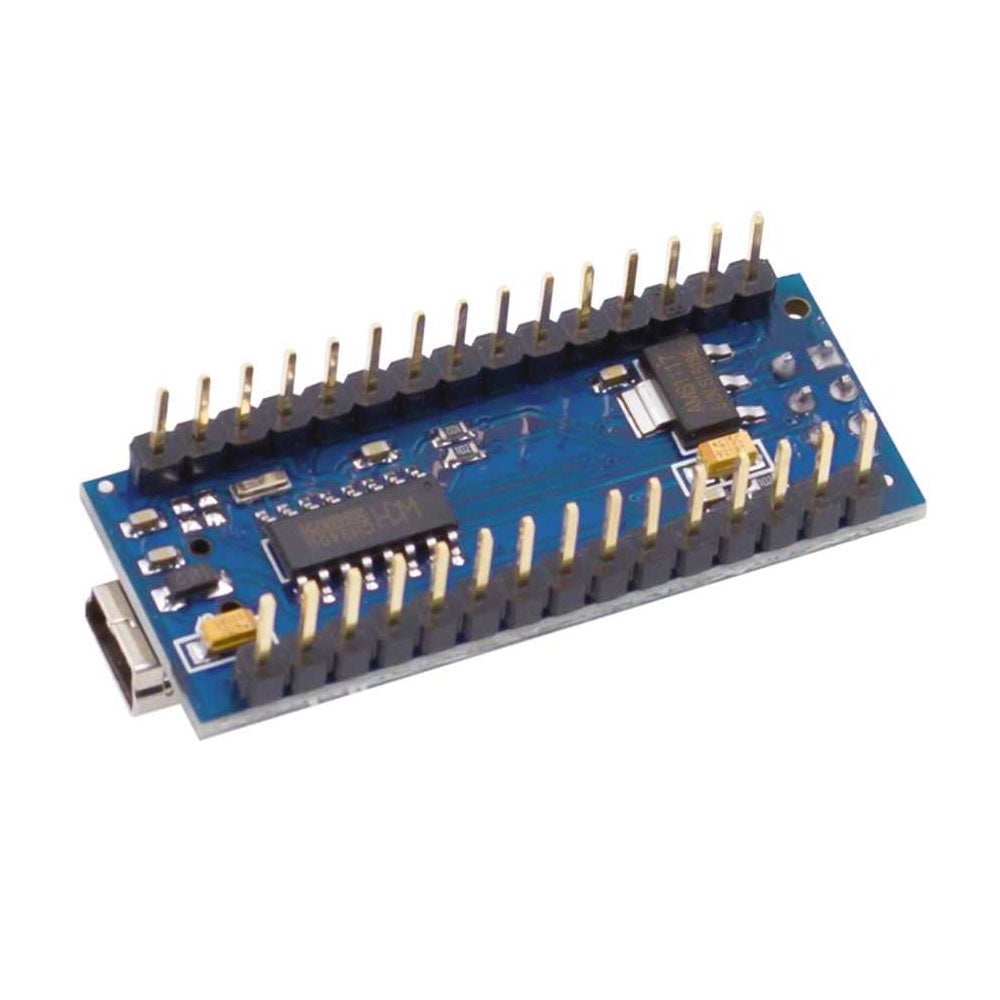

The Viduino Nano CH340G without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint.
The Nano board compatible with arduino equips a low-cost USB-Serial Chip that makes it reliable and suitable for projects based around arduino. The Nano microcontroller board is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3).
The CH340 Nano microcontroller board can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
Technical Specification:
- Model Type: Nano
- Color: Blue
- Microcontroller: ATmega328
- Operating Voltage: 5 V
- Input Voltage (Recommended): 7-12 V
- Power Consumption: 19 mA
- Analog I/O Pins: 8
- Digital I/O Pins: 22
- PWM Output Pins: 6
- Architecture: AVR
- Clock Speed: 16 MHz
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB of which 2 KB used by bootloader
- EEPROM: 1KB
- SRAM: 2KB
- Dimensions (mm) LxWxH: 45x18x5
- Weight (gm): 8
Features:
- Operating Voltage (logic level): 5V
- 8 analog inputs ports: A0 ~ A7
- 14 Digital input / output ports: TX, RX, D2 ~ D13
- 1 pair of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- There is a bootloader installed in it
- Standard 0.1” spacing DIP (breadboard friendly).
- Manual reset switch.
Pin Description:
Applications:
- Samples of electronic systems & products
- Medical Instruments
- Industrial Automation
- Android Applications
- GSM Based Projects
- Embedded Systems
- Automation and Robotics
- Home Automation and Defence Systems
- Virtual Reality Applications
