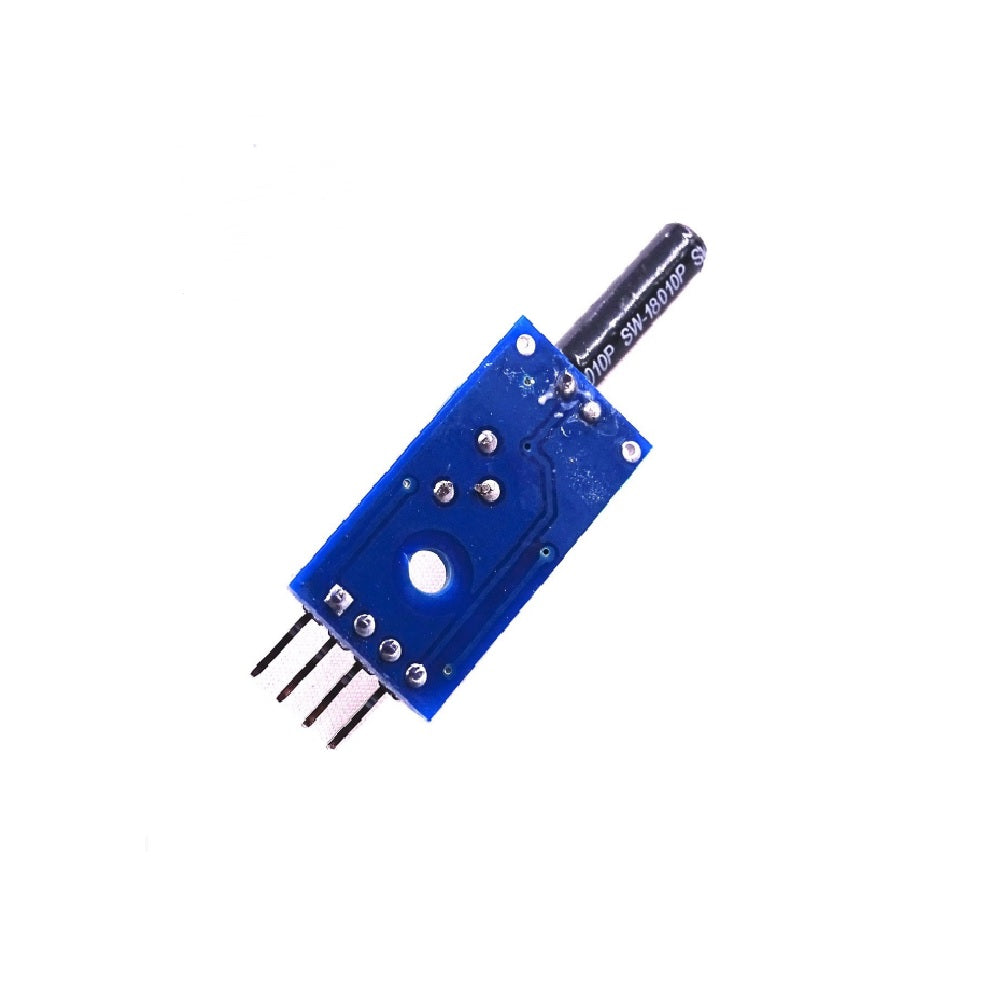

Vibration Sensor Module SW-1801P

SKU: VM14

Send Inquiry

Description

The Vibration Sensor Module is commonly being used for tilt detection.  The output is digital. This sensor is ball rolling type. It has a mounting hole due to which it is easy to attach to any object. The module comes with power LED and status LED for the visual indicator. The module will give output logic as LOW when the module is not tilted until the threshold angle and it will output logic as HIGH when it is tilted over the threshold angle.

Technical Specification:

  • Operating voltage: 3V ~ 5V
  • Output format: digital switching output (0 and 1)
  • Dimensions (mm): 32 x 14 (mm)

Features:

  • The use of wide voltage LM393 comparator.
  • Using the company’s high-sensitivity vibration switch, the default with SW-1801P vibration sensor.
  • The comparator output, the signal clean, good waveform, driving ability, more than 15mA
  • With a fixed bolt hole, easy to install.

Module Description :

Pin Description:

  • VCC: positive pole of power supply
  • GND: the negative pole of the power supply
  • DO: digital signal output
  • AO: with this vibration sensor, this function is invalid

Applications:

  • Anti-theft alarm
  • Smart Home systems
  • Automotive devices
  • Home electrical devices
  • Air condition / Air warm blower fall prevention protect switches
  • Communication devices
  • Electronic Scale
  • Instruments / Toys
  • Meters / Lamps
  • Digital Shoes
  • Sport Equipment's
