Description

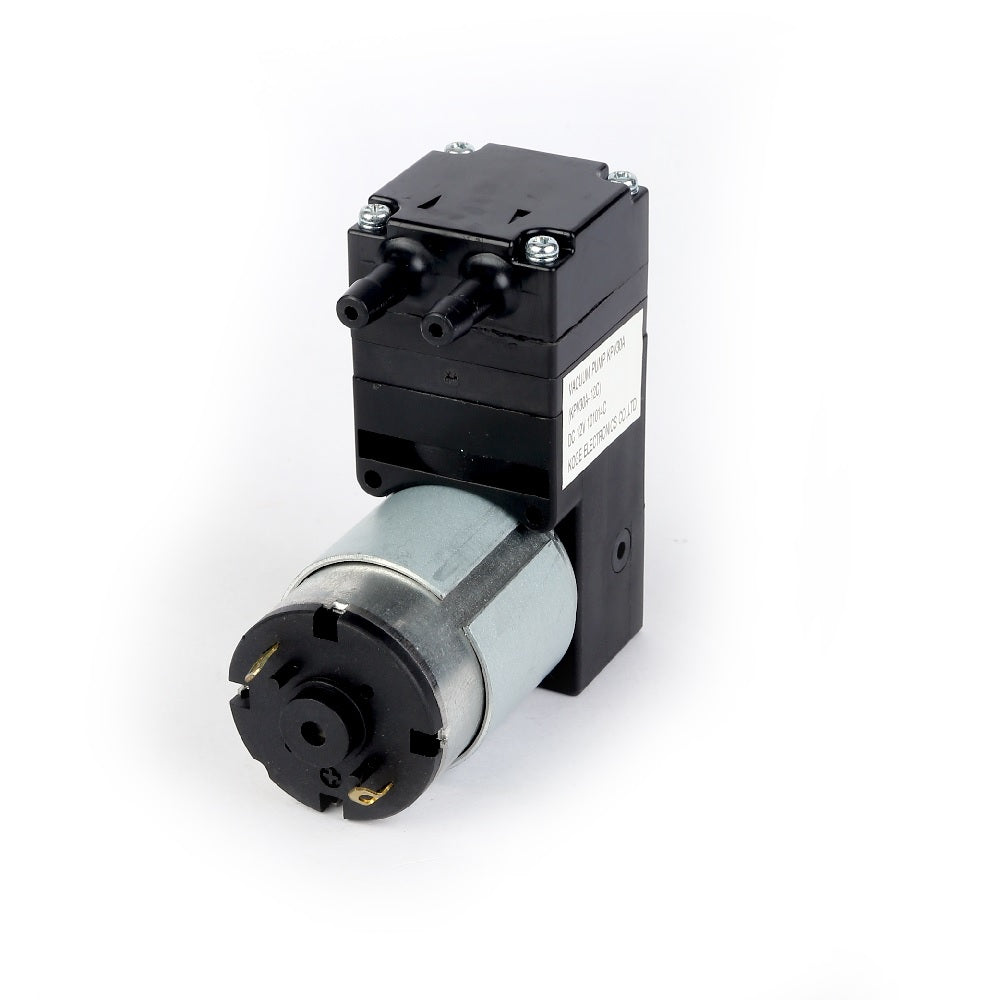

This micro-pump is powered miniature DC motor drive, drive internal mechanical eccentric motion, driven by an eccentric movement inside the diaphragm reciprocates.
Technical Specification:
- Rated voltage: DC 12.0V
- Rated current: <970mA
- Air flow: >8.5L/M
- Maximum pressure: >90Kpa
- Vacuum pressure: <-65Kpa
- Noise: <70dB
- Pipe diameter: 5.0mm
- Size: 85.5mm*64.5mm*40mm
Features:
- Small, stable and reliable
- Suitable for high negative environmental requirements
- Hand-held instrument for pump-priming, low noise, low power consumption
Applications:
- Massage equipment
- Beauty products
- Vacuum package machine
