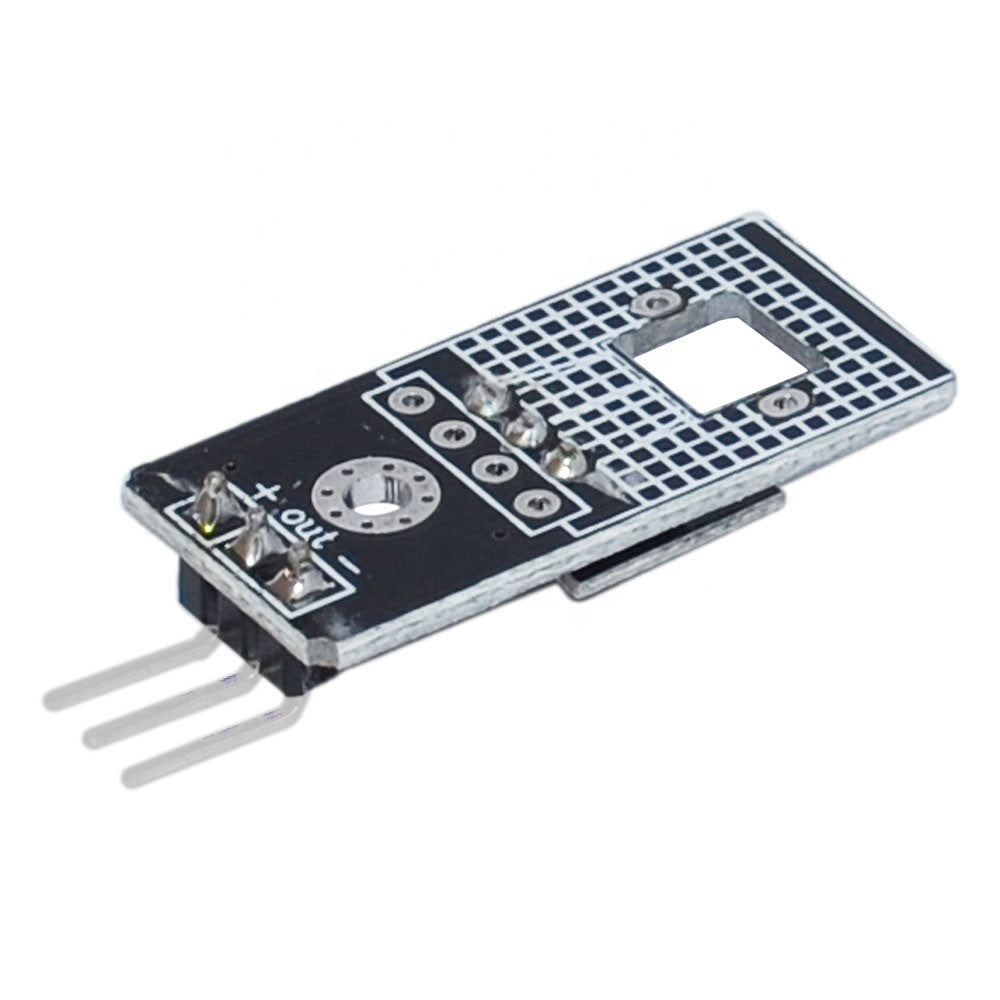

UVM30A Ultraviolet Ray Detection Module

SKU: VM484

Send Inquiry


The module will detect this electromagnetic radiation and using the UVM30A chip it will convert the short wavelengths into digital signal for your microcontroller. It a great little sensor to tell how much sunlight your plants are getting or if it’s the right day to put on sun cream before going out.

Technical Specification:

  • Input Voltage: 3v~5v
  • Current: 0.06m (Standard) / 0.1Ma (Max)
  • UV detection wavelength:200-370nm
  • Operating Temperature: -20~85C
  • Pinout:  GND, Signal, VCC
  • Size: 2mm*14mm*6mm (L*W*H)


  • Suitable for measuring the amount of UV intensity of sunlight
  • Control World Health Organization classification standard UV Index
  • Fast response , full interchangeability
  • Using a patented solid polymer structure , waterproof and dustproof easy to clean
  • Small size , suitable for mobile phones and other portable products


  • Can be used for detecting intensity of UltraViolet Radiation
