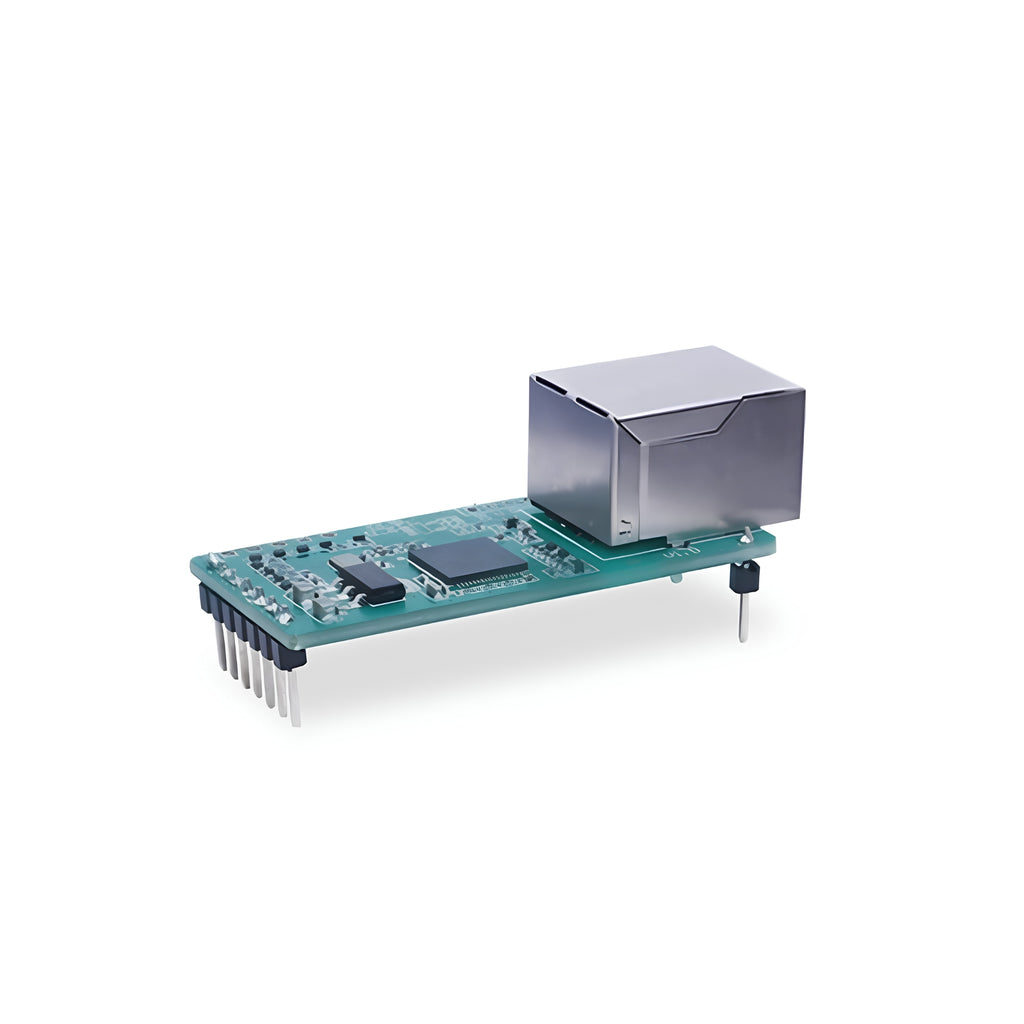

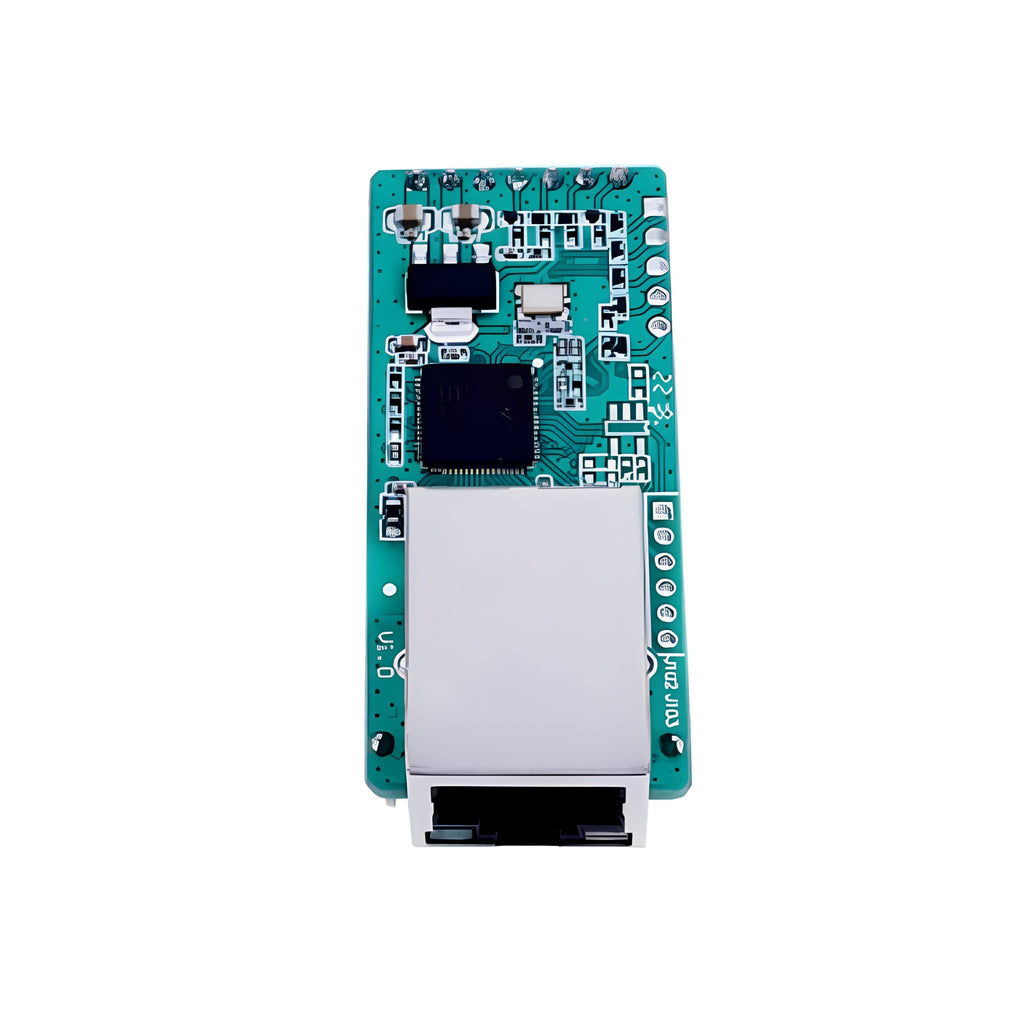

USR-TCP232-T0 UART TTL to Ethernet Converter Module

The USR-TCP232-T0 is a compact UART TTL to Ethernet converter module designed for transparent serial-to-Ethernet data communication. It enables microcontrollers, embedded systems, industrial devices, and serial equipment to connect directly to LAN or internet networks through an RJ45 Ethernet interface.

The module supports TCP/IP protocols and provides stable serial communication conversion between UART TTL and Ethernet networks. It is widely used in industrial automation, IoT systems, remote monitoring, data acquisition, and network-enabled embedded applications.

The USR-TCP232-T0 supports transparent transmission, configurable network modes, and high-speed data communication, making it suitable for reliable wired networking applications.

Technical Specifications:

• Operating Voltage: 3.3V – 5V DC
• Ethernet Speed: 10/100 Mbps
• UART Baud Rate: 600bps – 460800bps
• Supports TCP Server, TCP Client, and UDP modes
• TTL UART communication interface

Features:

• Built-in TCP/IP protocol stack
• Web-based and AT command configuration
• Stable long-distance wired communication
• Compact and easy-to-integrate design
• Supports continuous data transmission

Applications:

• Industrial automation systems
• IoT and embedded networking projects
• Remote monitoring and telemetry
• PLC and serial device networking
• Data acquisition and control systems
