Description

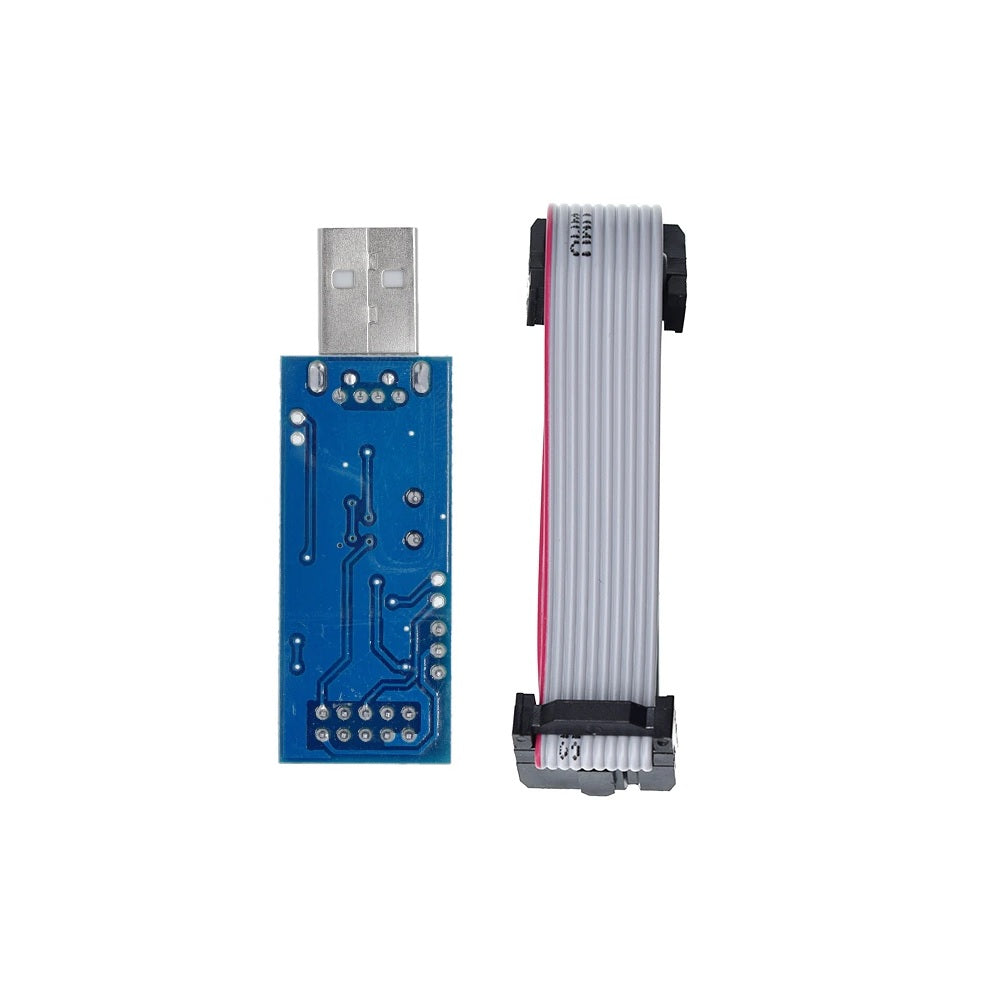

This AVR USBASP Programmer module comes with 10 on-board pins connected through the ribbon cable as the output. It can support a wide variety series of Atmel (AT) AVR microcontroller chip such as ATMEGA328P, ATmega128P, and etc. This module is compatible with the USBasp and fully supported by the Arduino IDE. It also allows programming a new bootloaders and firmware using the ICSP programmer whether on Arduino boards or on user’s custom-made Arduino-compatible projects.
Technical Specification:
- Model no: USBASP AVR Programming Device
- Input voltage: 3.3V or 5V
- 2 light indicator: Power (Green LED) and Programming (Red LED)
- Supported OS: Windows 8, Windows 7, Works under multiple platforms. Linux, Mac OS X and Windows are tested
- Size: 63.3mm*20.5mm*10.mm (L*W*H)
Features:
- With the two indicators of power supply and programming
- Onboard overcurrent protection
- The target board support 5V and 3.3V power supply
- Easy Usage
- Compatible Chips:
- ATMEGA Series
- Tiny Series
- Classic Series
- CAN Series
- PWM Series
- Compatible with the Arduino IDE on Linux, Windows, and Mac
- Compatible with a wide range of boards, including all Arduino boards
Applications:
- Used to upload the source code from the computer into the ATMEL’s microcontroller unit using standard USB port as input
