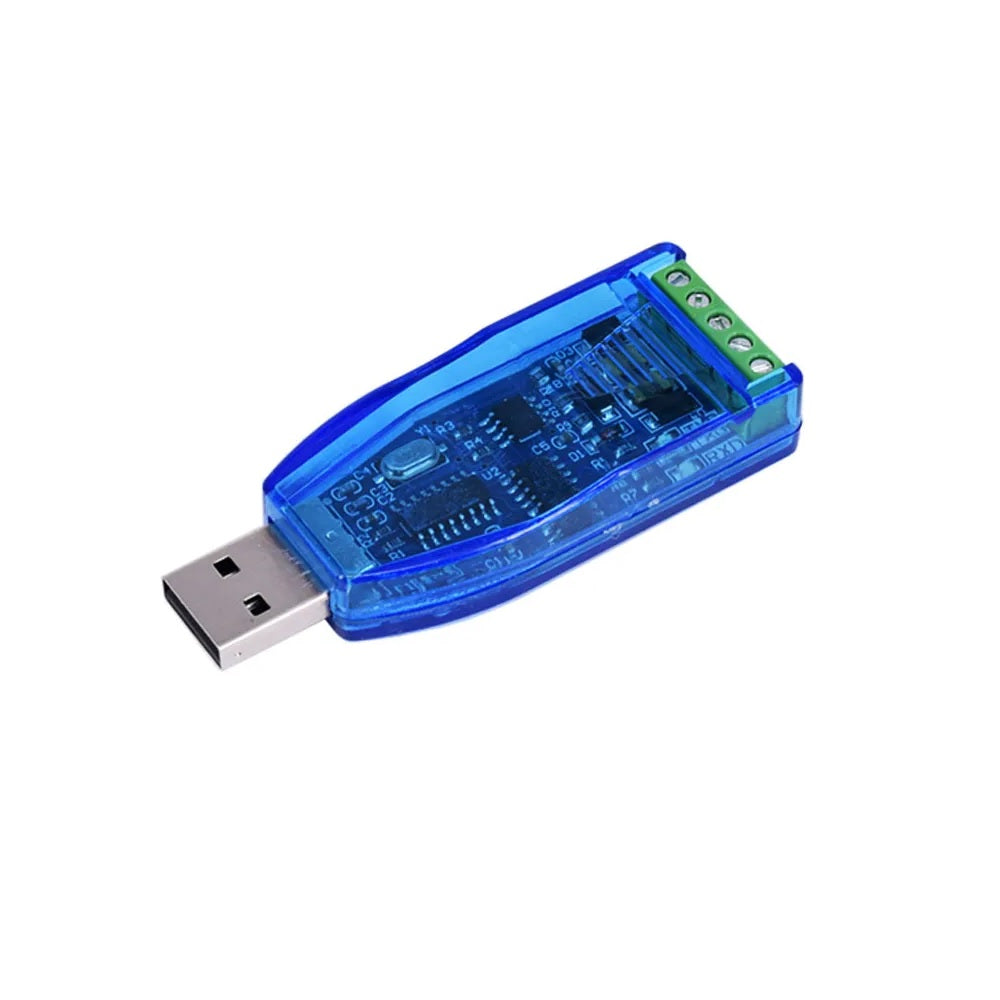

USB to RS485 Industrial Converter Module Adapter Board

SKU: VM01004

Price:
Sale price Rs. 190.68 (excl.18% GST)
Rs. 225.00

Description

USB to RS485/422 converter allows PC users to connect their RS-485/422 devices to systems that use USB interface. By attaching the converter to a PC, it will no longer be necessary to open the chassis or turn off the PC to install the hub. With the converter, user instantly gets one extra high-speed RS-485 or RS-422 ports. In addition, since the power is derived from the USB port, there are not any cumbersome power adapters.

Specification:

  • Compatibility: USB v2.0 standard
  • Interface: Network: USB
  • Serial:RS-485/RS-422
  • Port: One Independent RS-485 or RS-422 ports
  • Connector: Network: USB-type A connector
  • Serial: Screw terminal
  • Transmission speed: 600bps to 115.2Kbps
  • Parity bit: odd, even, none
  • Data bit: 5, 6, 7, 8
  • Stop bit: 1, 1.5, 2
  • Driver Support: Windows 2000/2003/XP/Vista/7 (32bit and 64bit)
  • Power Consumption: 1.5W @ 5V
  • Distance: 4000ft (1200m) @ 19.2Kbps
  • Case: Blue transparent ABS
  • Operating Temperature: -20°~+65°
  • Operating Humidity: 20% to 95% (non-condensing)

Features:

  • Supports TVS transient suppression protection
  • Supports electrostatic ESD protection
  • Supports surge protection
  • Supports short circuit protection
  • Super long communication distance
  • Supports hot plug and unplug
  • Automatically determine and control the data transmission direction
  • Supports XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X operating system

Applications:

  • Data collection
  • Signal conversion
  • Equipment Repair
  • Product development

Note:  Product Images are shown for illustrative purposes, may differ from actual product
