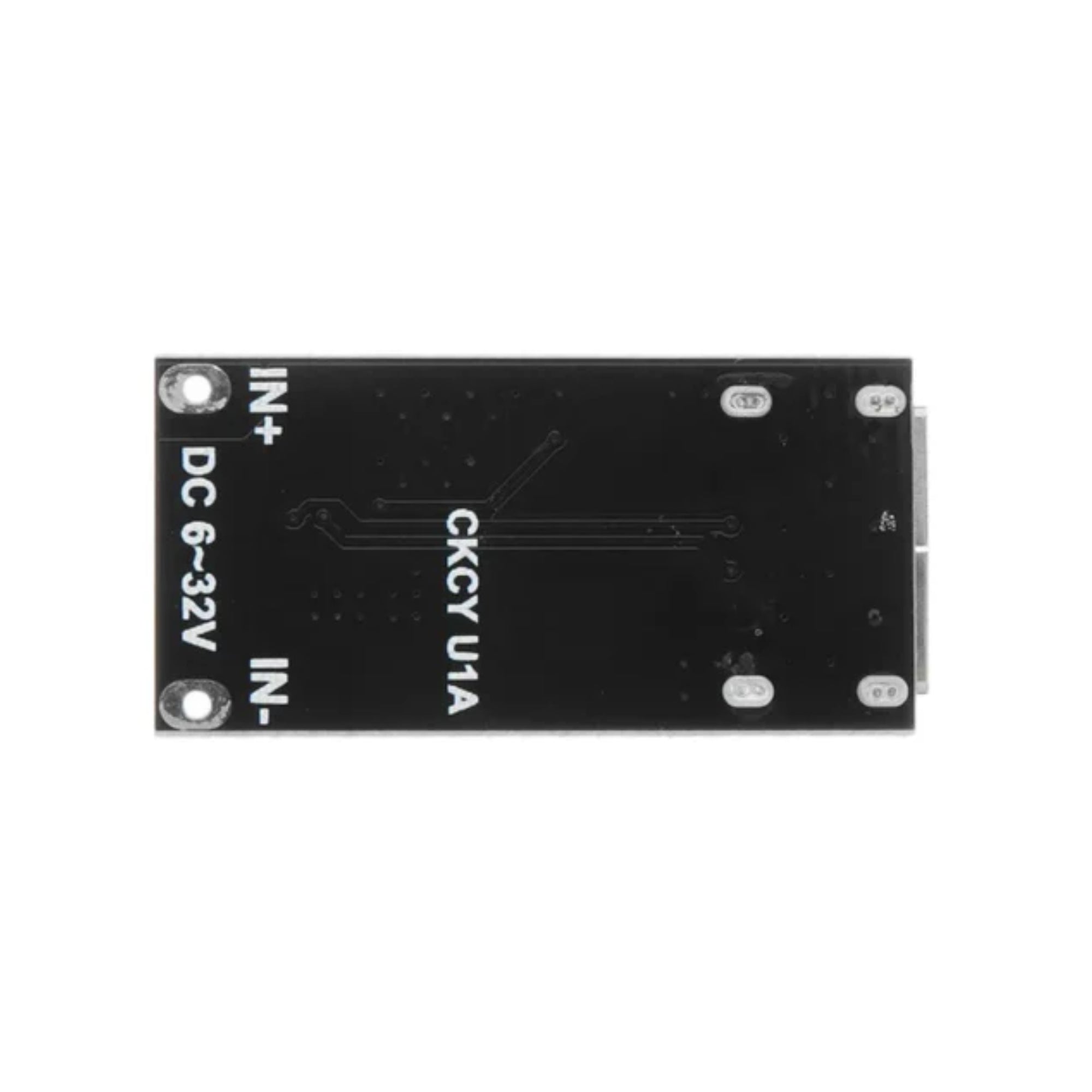

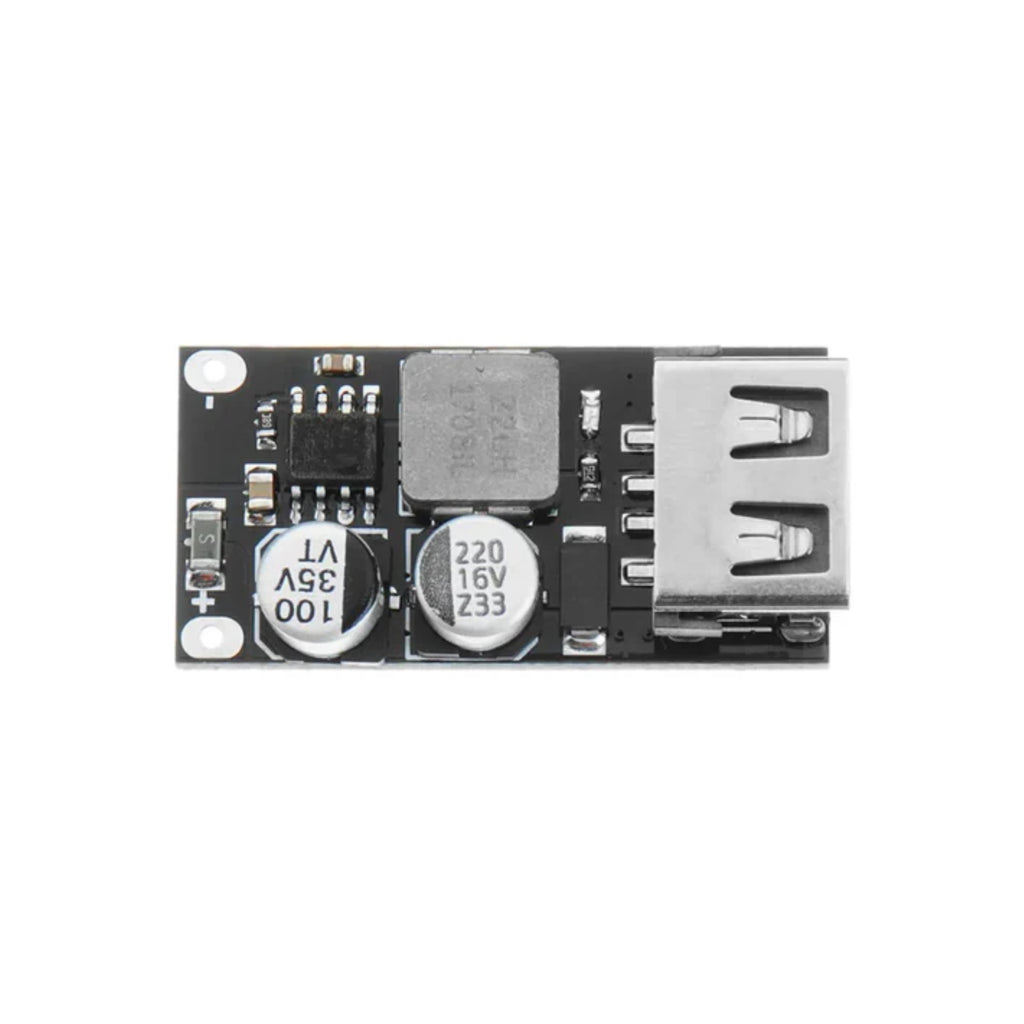

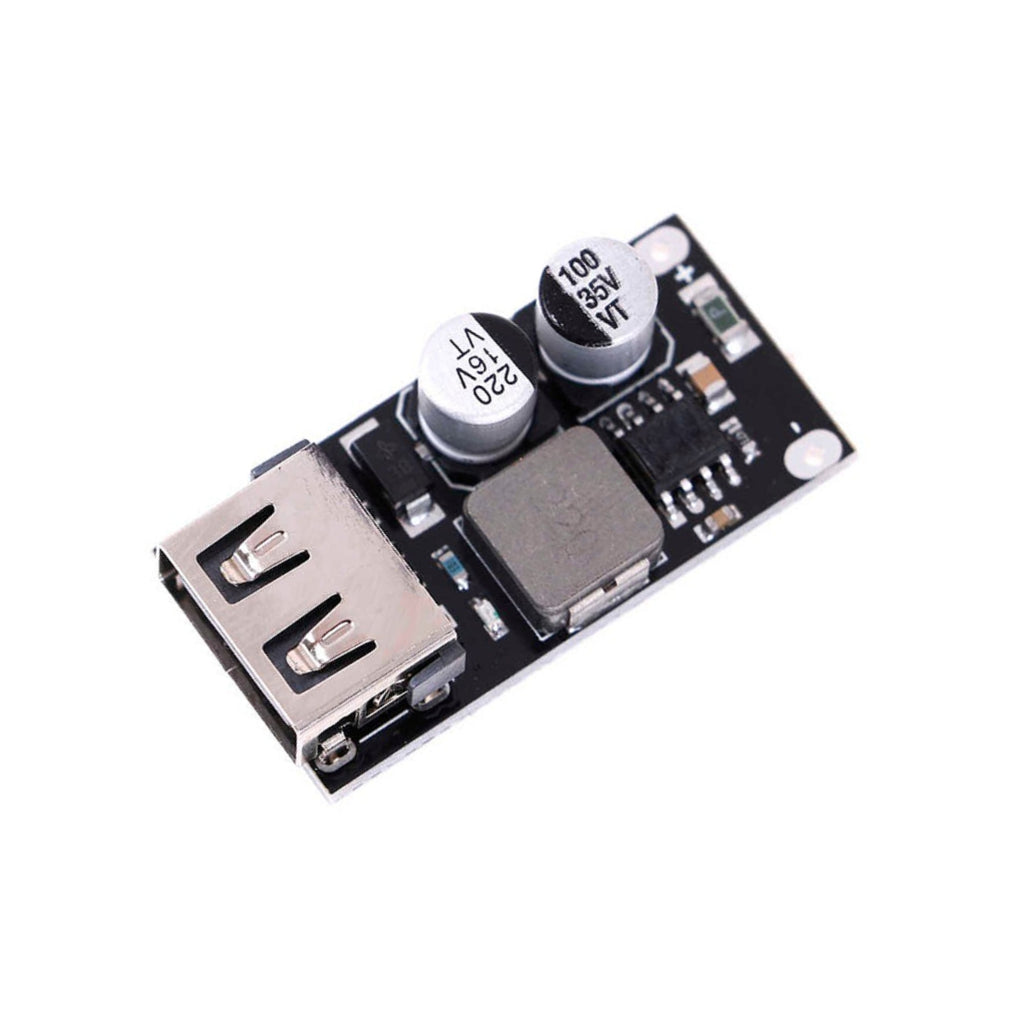

USB Fast Charging 36W Module

The USB Fast Charging 36W Module is a compact DC-DC power conversion board designed to provide high-power USB output for fast charging applications. It efficiently converts a wide range of DC input voltages into a stable USB output, making it ideal for DIY power supplies, battery packs, automotive chargers, and embedded systems requiring reliable fast USB charging.

Technical Specifications:

• Maximum Output Power: 36 W
• Input Voltage Range: 6 V to 32 V DC (typical)
• Output Voltage: 5 V (USB standard, fast-charge capable)
• Maximum Output Current: Up to 6 A (depending on input voltage and load)
• Conversion Type: Step-down (buck) DC-DC converter
• Efficiency: Up to 90–95%
• USB Port: USB-A female
• Operating Temperature: −20 °C to +60 °C

Features:

• Supports high-power fast USB charging
• High efficiency with low heat generation
• Compact PCB size for easy integration
• Built-in protection against over-current and short-circuit
• Stable output suitable for sensitive electronics
• Simple solder pad connections for input power

Applications:

• DIY power banks and battery chargers
• Car and motorcycle USB fast chargers
• Solar power systems with USB output
• Embedded electronics and IoT devices
• Portable power and backup supply systems
