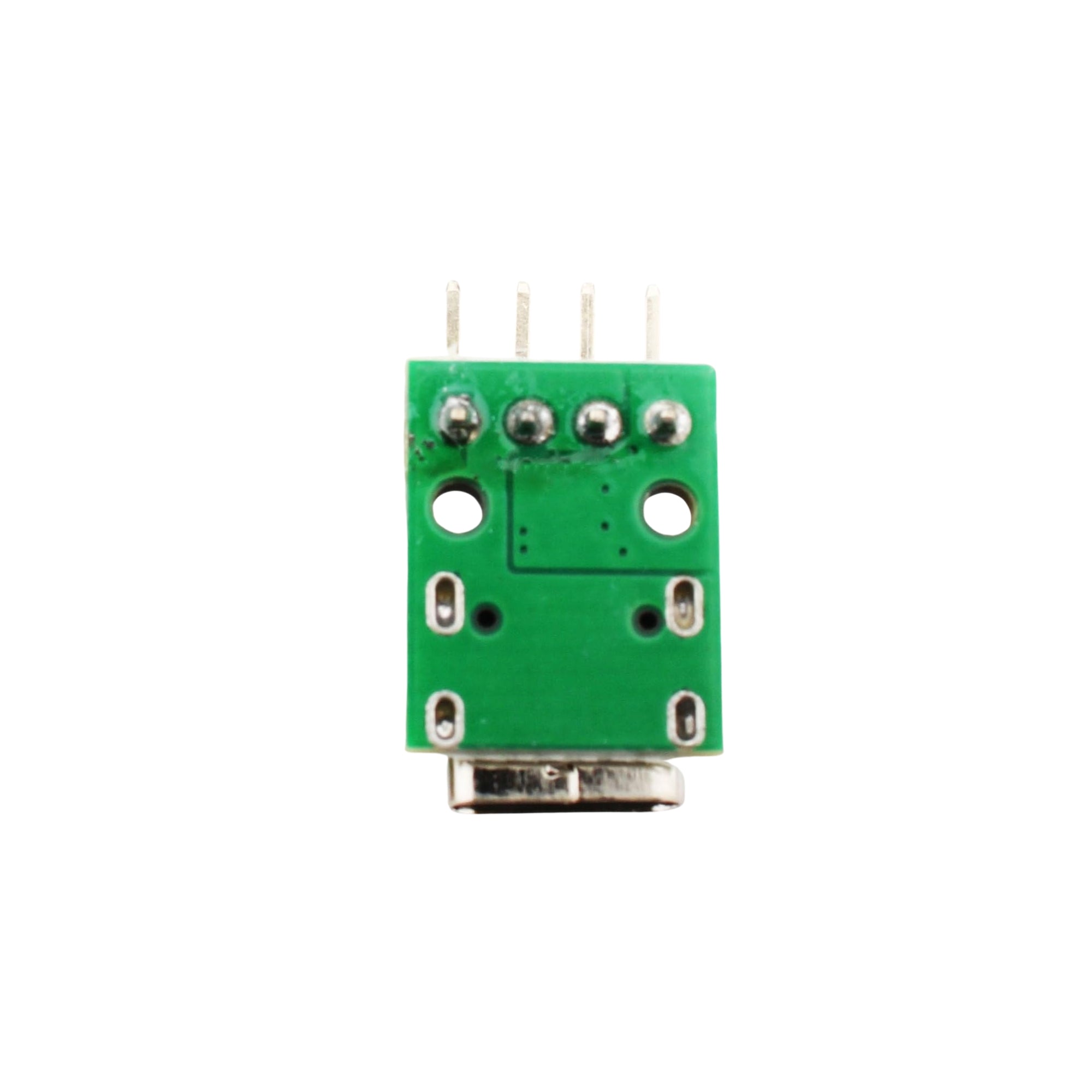

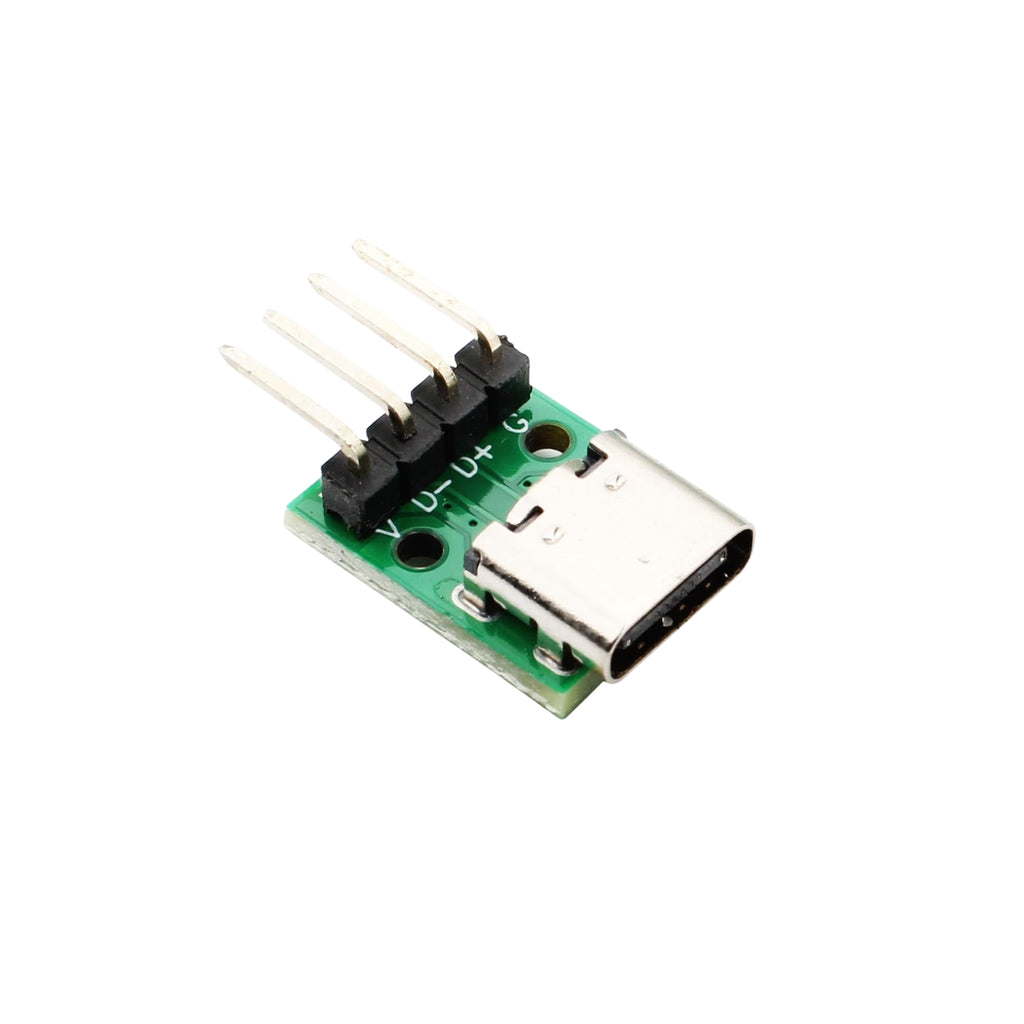

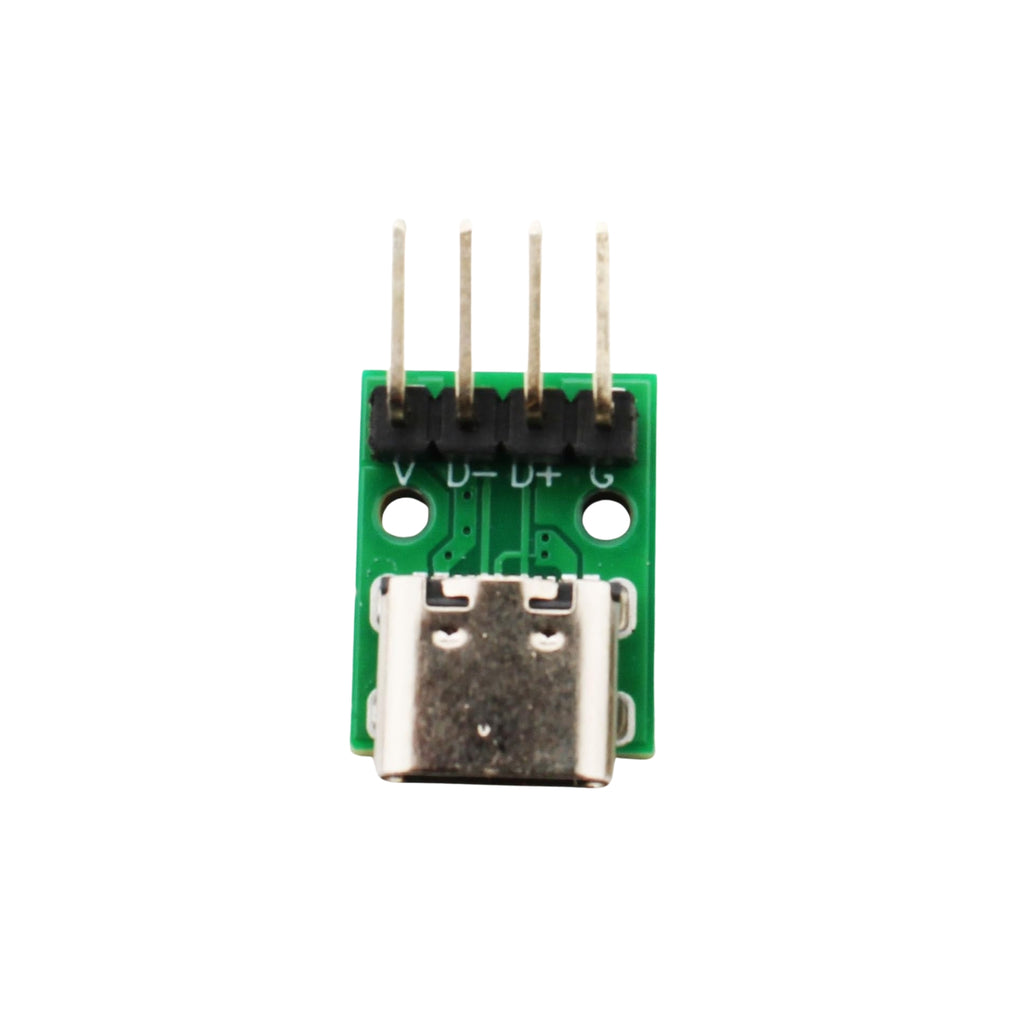

USB C 4 Pin Connector Breakout Board

The USB-C 4-Pin Connector Breakout Board is a compact adapter module that exposes the primary USB Type-C signals—VBUS, D+, D−, and Ground—through standard header pins. It simplifies USB-C integration in electronics projects, making it ideal for prototyping, power delivery experiments, USB communication interfaces, and custom embedded system designs. The module provides an easy way to connect USB-C power and USB 2.0 data signals without designing a dedicated USB-C PCB footprint.

Technical Specifications:

• Connector Type: USB Type-C Female
• Breakout Pins:
  • V (VBUS / +5V)
  • D− (USB Data Minus)
  • D+ (USB Data Plus)
  • G (Ground)
• Pin Count: 4 Pins

Features:

• Converts a USB Type-C female connector into accessible header pins
• Easy integration with breadboards, development boards, and custom PCBs
• Provides direct access to USB power and data lines
• Suitable for soldering and rapid prototyping
• Compact and lightweight design

Applications:

• USB-powered embedded systems
• Microcontroller projects (Arduino, ESP32, STM32, Raspberry Pi Pico, etc.)
• USB device and host prototyping
• Power supply breakout applications
• Custom electronics development and testing
