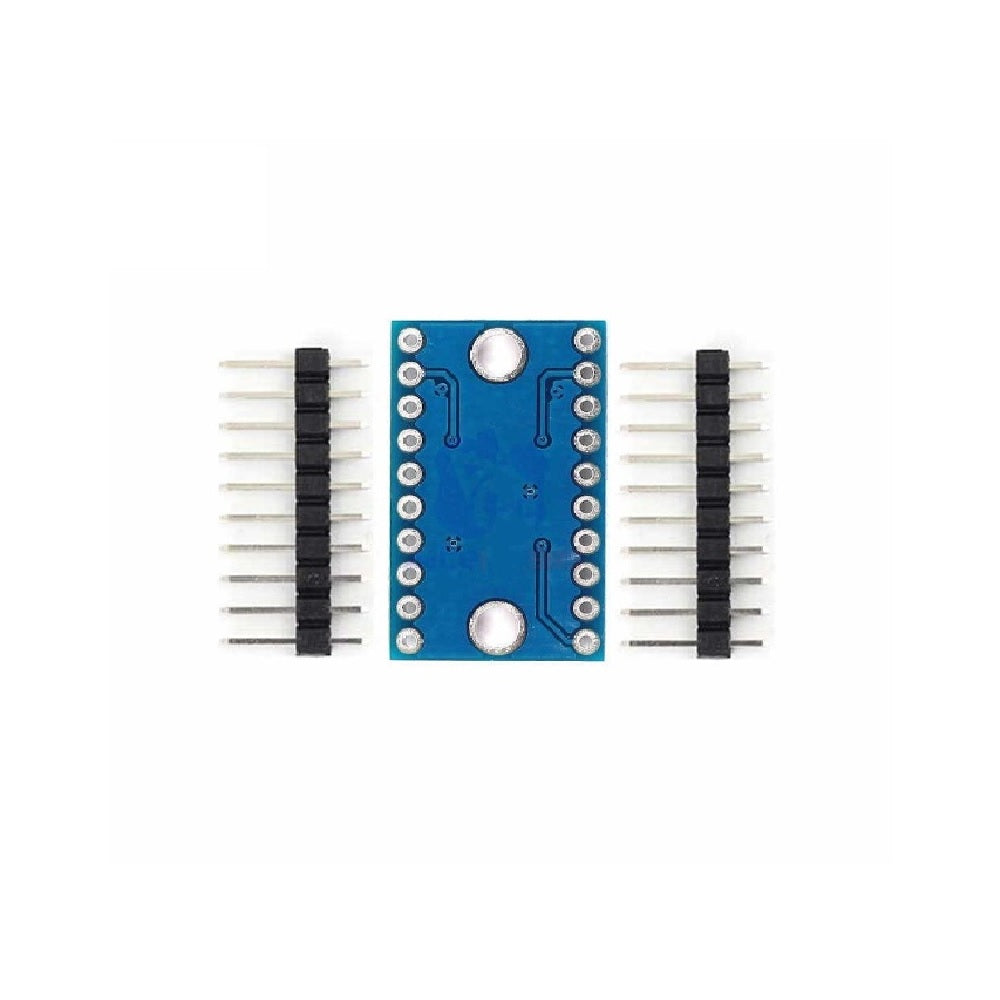

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

SKU: VM00880

Send Inquiry

Description

This module provides two-way communication capability at varied voltage levels. This chip performs bidirectional level shifting from any voltage and will auto detect the direction.

Technical Specification:

  • Module chip: TXS0108E
  • VCC A side support voltage: 2 ~ 3.6 V
  • VCC B side support voltage: 65 ~ 5.5 V
  • Communication Interface Compatible: UART/IIC/SPI
  • No. of Bits: 8
  • Size: 27mm*17mm*3mm (L*W*H)

 Features:

  • 8-bit bi-directional 3.3V-5V/5V-3.3V logic level converter board
  • Serial communication interface compatible with UART/IIC/SPI port easily to connect
  • Ship out by USPS with tracking information and 7-17 days delivery time usually

 Applications:

  • Can be used in MCU and SD card, MCU and serial devices, MCU and 5V/3V module communication
