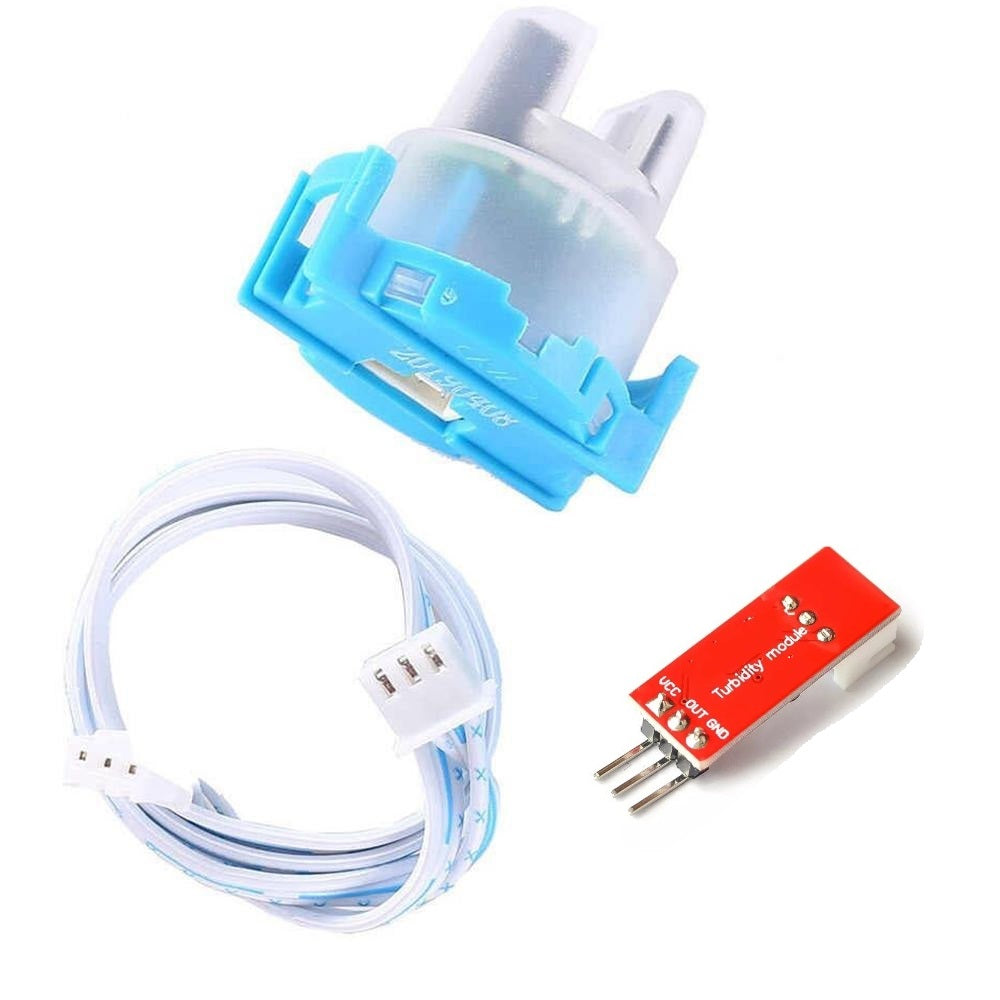

Turbidity Sensor with Module

SKU: VM00641

Send Inquiry

Description

The gravity arduino turbidity sensor detects water quality by measuring the levels of turbidity, or the opaqueness. It uses light to detect suspended particles in water by measuring the light transmittance and scattering rate, which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. Turbidity sensors are used to measure water quality in rivers and streams, wastewater and effluent measurements, control instrumentation for settling ponds, sediment transport research and laboratory measurements. This liquid sensor provides analog and digital signal output modes. The threshold is adjustable when in digital signal mode.

Technical Specification:

  • Working voltage: DC 5V
  • Working current: 30mA [MAX]
  • Response time: <500 msec
  • Insulation Resistance: 100MΩ [Min]
  • Operating Temperature: -30 ~ +80°C
  • Size: 33mm*20mm*12mm (L*W*H)

 Features:

  • Compatible with Arduino, Raspberry Pi, AVR, PIC, etc
  • Detects and verifies water quality
  • Digital and analog output
  • Trimpot for sensitivity adjustment

Applications:

  • Ideal monitoring of water turbidity in rivers, streams, lakes, water boxes, catchment and research sites, laboratories, tanks with liquids and etc
