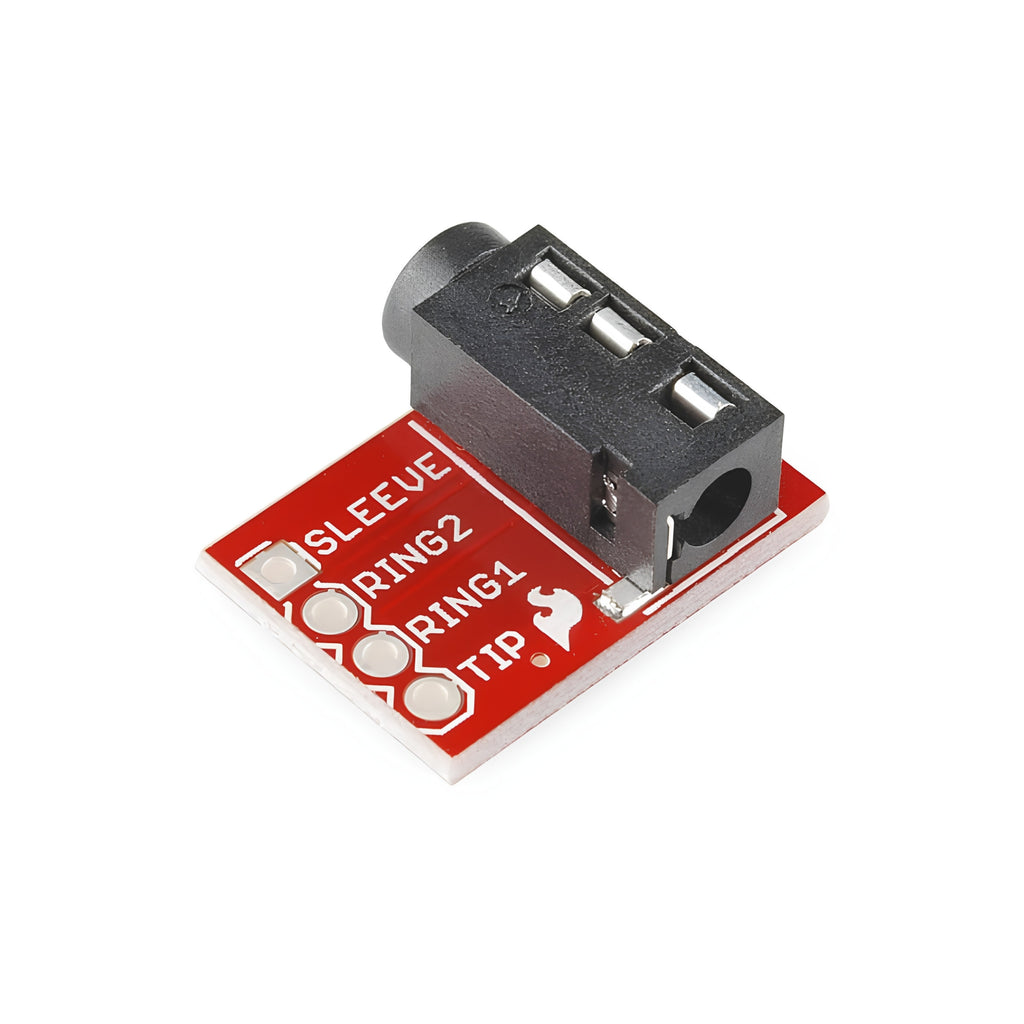

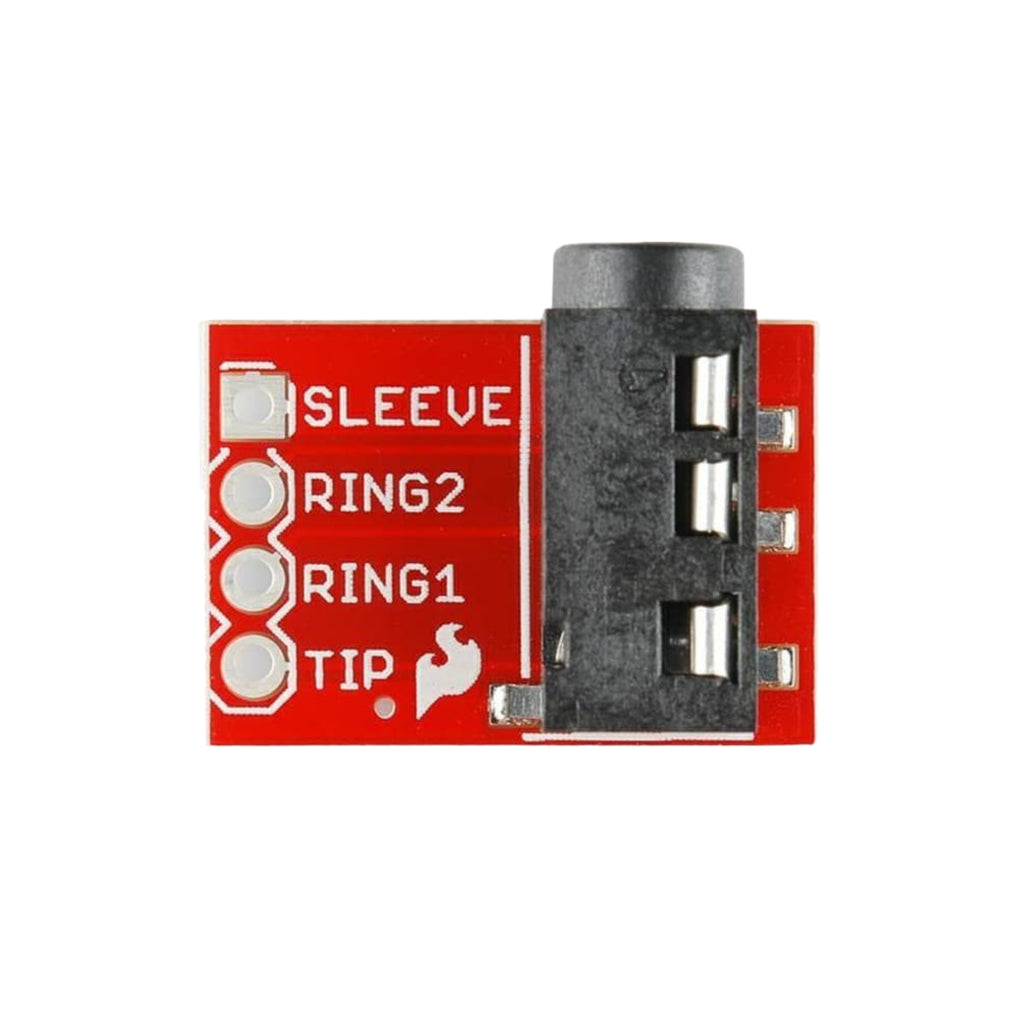

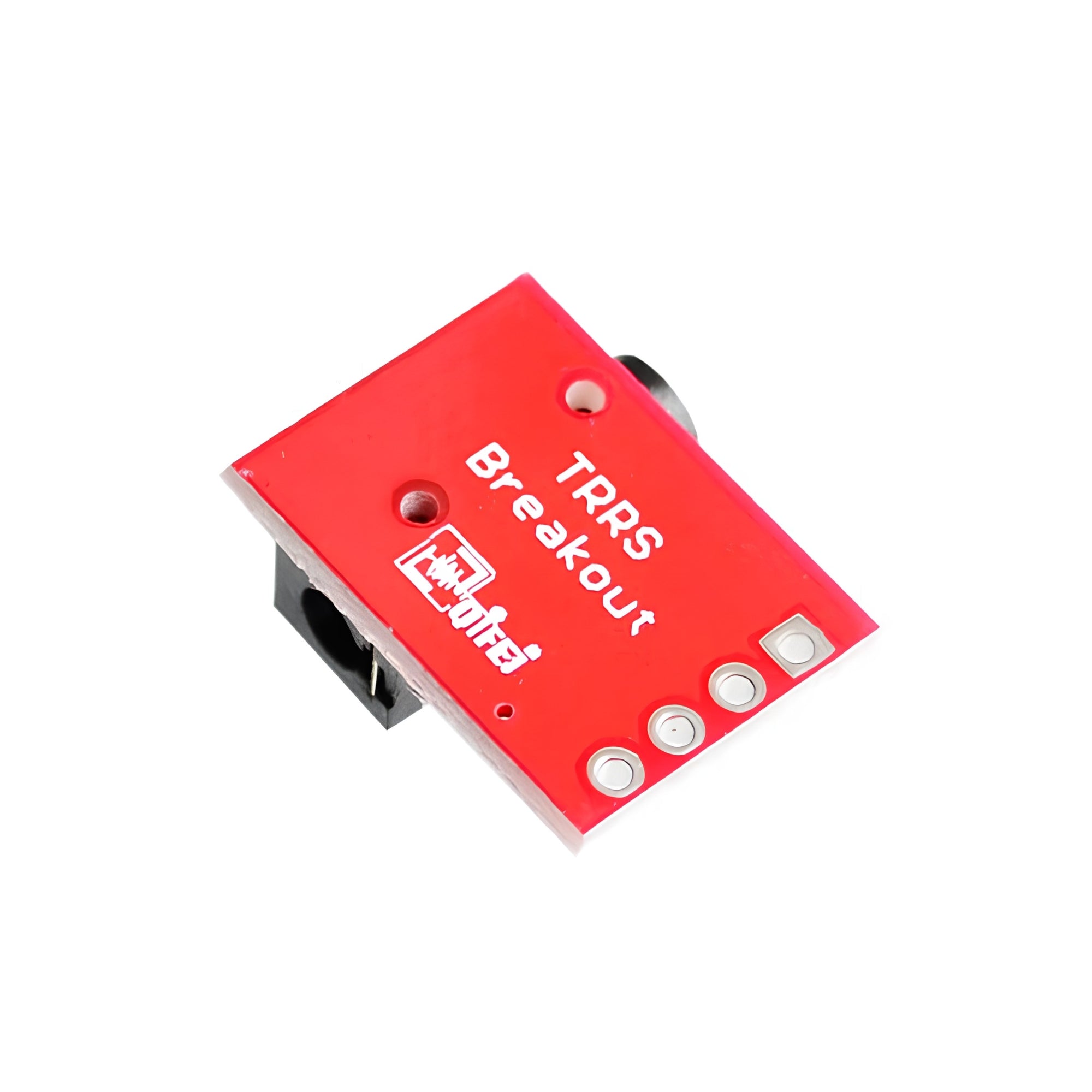

TRRS 3.5mm Audio Jack Breakout Module

The TRRS 3.5mm Audio Jack Breakout Module is a compact interface board designed to simplify connections with 3.5mm TRRS (Tip-Ring-Ring-Sleeve) audio plugs. It breaks out the four audio connector terminals into clearly labeled pins, allowing easy integration with breadboards, microcontrollers, audio circuits, and embedded systems. The module is ideal for prototyping audio input/output devices, headphone interfaces, microphone connections, and multimedia electronics projects. Its compact PCB design and labeled terminals make wiring and signal testing convenient for both beginners and professionals.

Technical Specifications:

• Connector Type: 3.5mm TRRS Female Audio Jack
• Contact Pins: Tip, Ring1, Ring2, Sleeve
• Interface Type: Breakout PCB Module
• Mounting Type: Through-hole breakout pads
• Compatible With: Headphones, microphones, audio devices

Features:

• Easy access to all TRRS audio connections
• Compact and lightweight PCB design
• Clearly labeled signal breakout pins
• Suitable for breadboard and prototype use
• Reliable audio signal connection

Applications:

• Audio signal prototyping
• Headphone and microphone interfacing
• DIY audio electronics projects
• Embedded multimedia systems
• Arduino and Raspberry Pi audio projects
