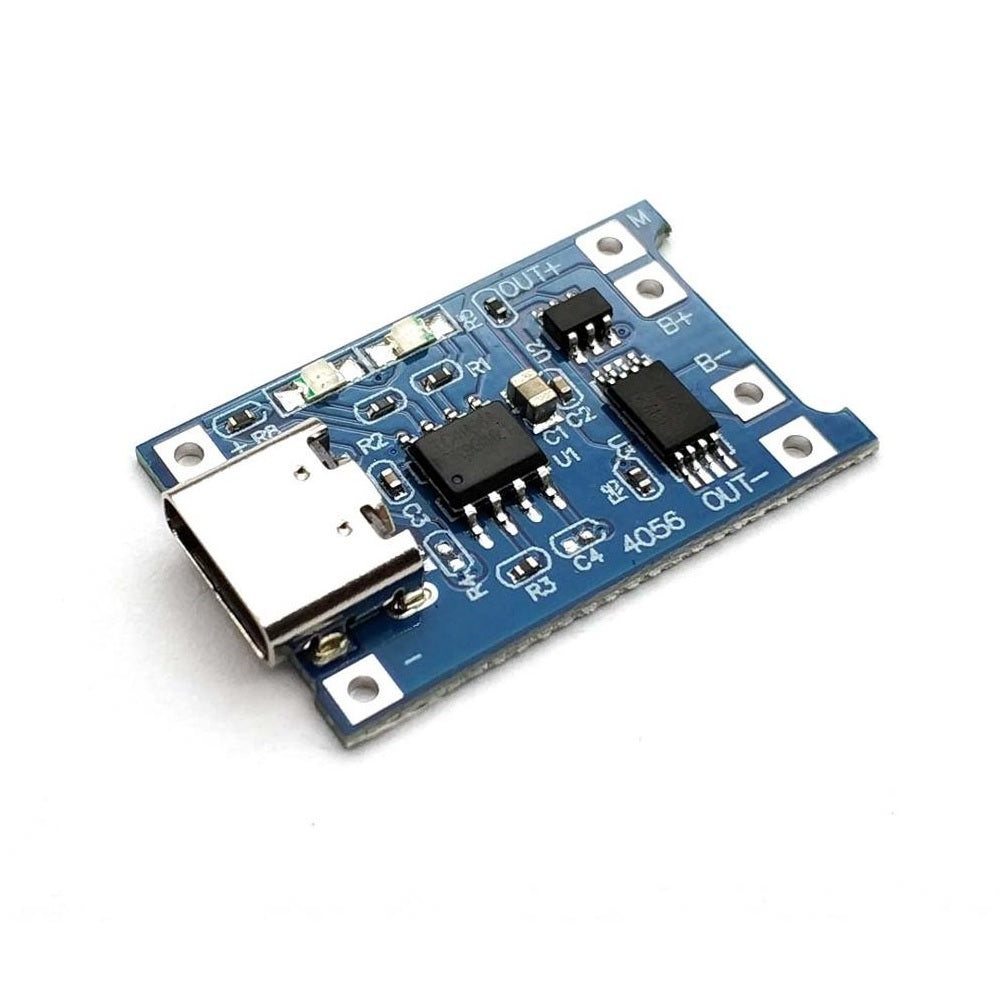

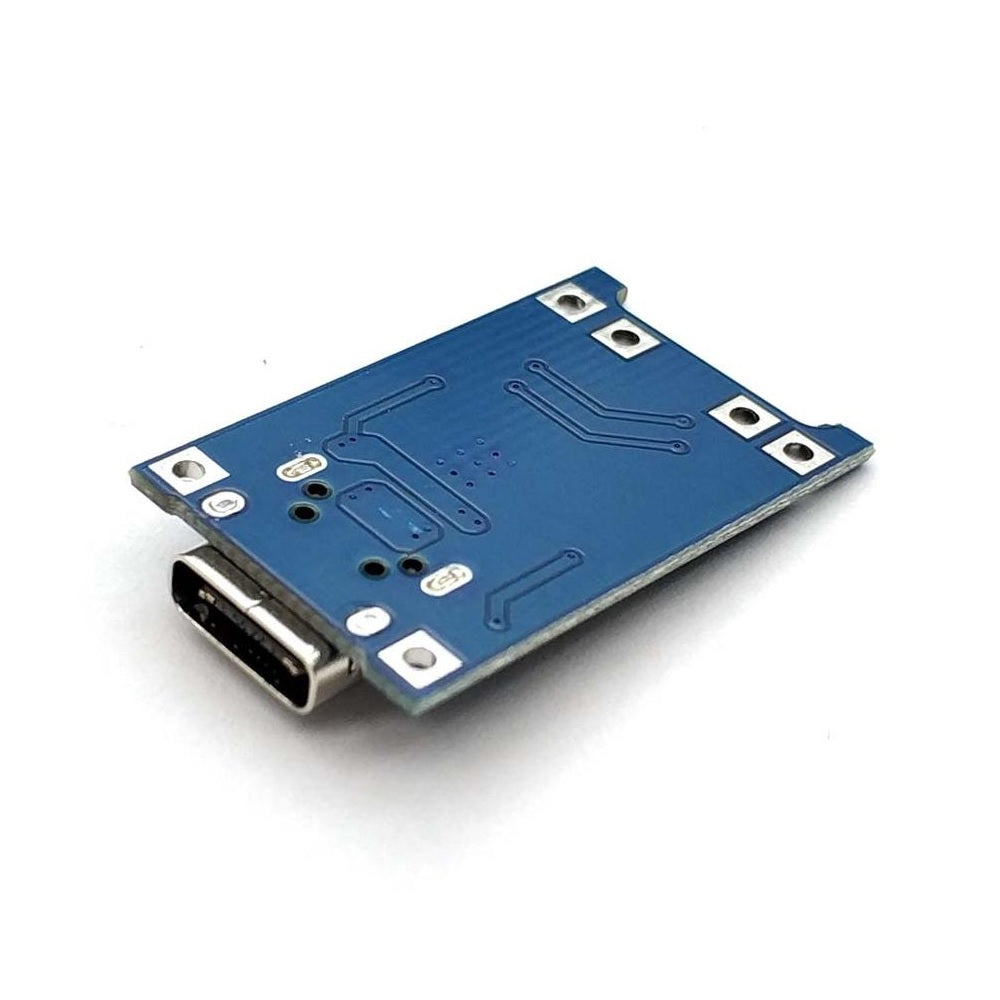

TP4056 1A Li-Ion Battery Charging Board Type C USB with Current Protection

SKU: VM00909

Sale price Rs. 22.88 (excl.18% GST)
Rs. 27.00


This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery the module also provides necessary protection required by lithium batteries.

Technical Specification:

  • Input interface: Type C
  • Current Protection: Yes
  • Charging mode: Linear charging
  • Current: 1A adjustable
  • Charge precision: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • Operating Temperature: -10°C to 85°C
  • Size: 25mm*17.3mm*4.3mm (L*W*H)


  • Good protection performance
  • High charging accuracy
  • Fully machinery automated processing


  • Can be used to charge rechargeable lithium batteries
