Description

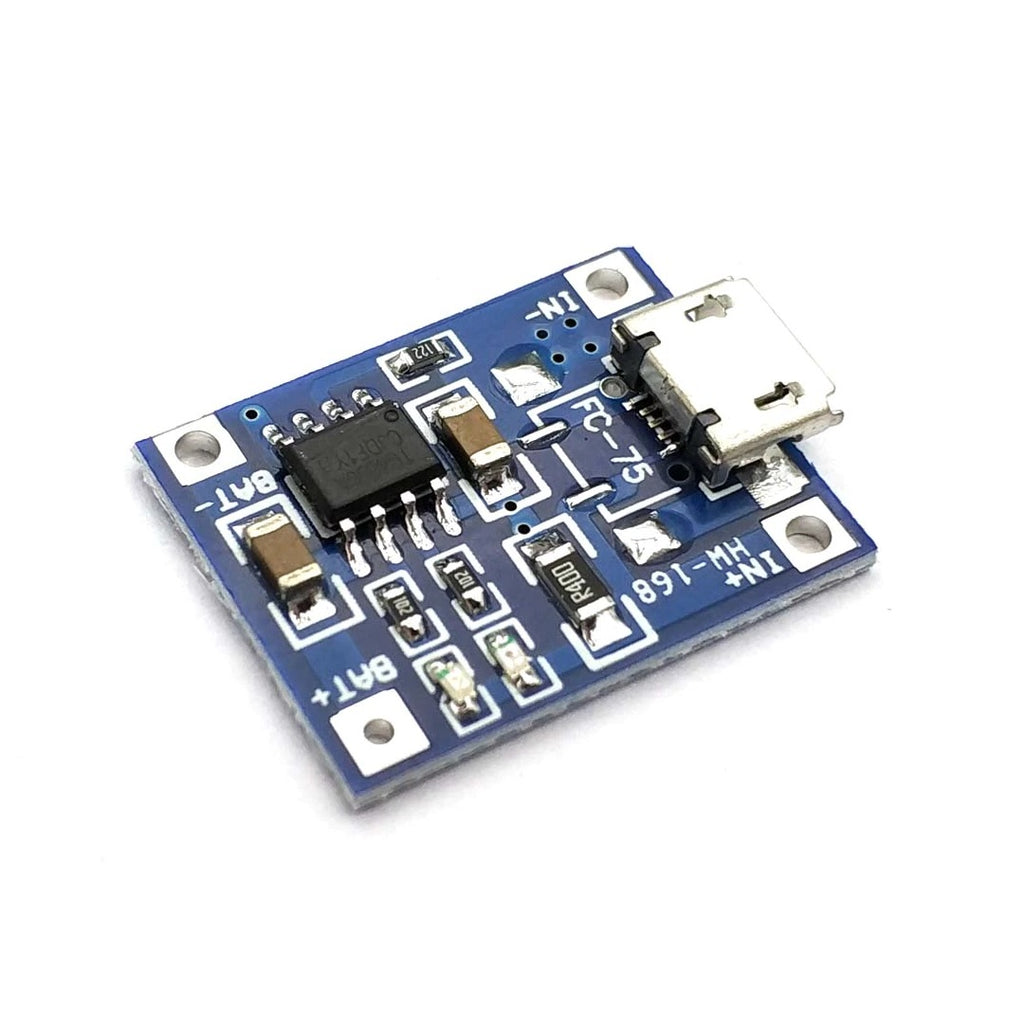

TP4056 1A Li-Ion Battery Charger with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 A or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.
Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.
Technical Specification:
- Input voltage: 4.5V to 5.5V
- Full-charge voltage: 4.2V
- Over-current protection: 3A
- Constant charge current: 1A
- Under-voltage protection: 2.5V
- Input interface: micro USB port
- Charging mode: linear
- Charging precision: 1.5%
- Current protection: 1A
- Inversed polarity: no
- Rated power: 4.2W
- Operating temperature range: -10℃ to +85℃
- Size: 28mm*17mm*1.1mm(L*W*H)
Features:
- The module can be used as a microcontroller development board module and also as appliance control, PLC extended output
- It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance
- The 1-16 road can be any full on/off or any road
- Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port
- Each relay is equipped with motion lights
- All interfaces can be directly connected through the terminal leads, very convenient
Applications:
- Under Voltage Cut off / Deep Drain Protection
- Over Current Protection
- Adjustable Current Limit through R-Prog
- Over-voltage charging protection
