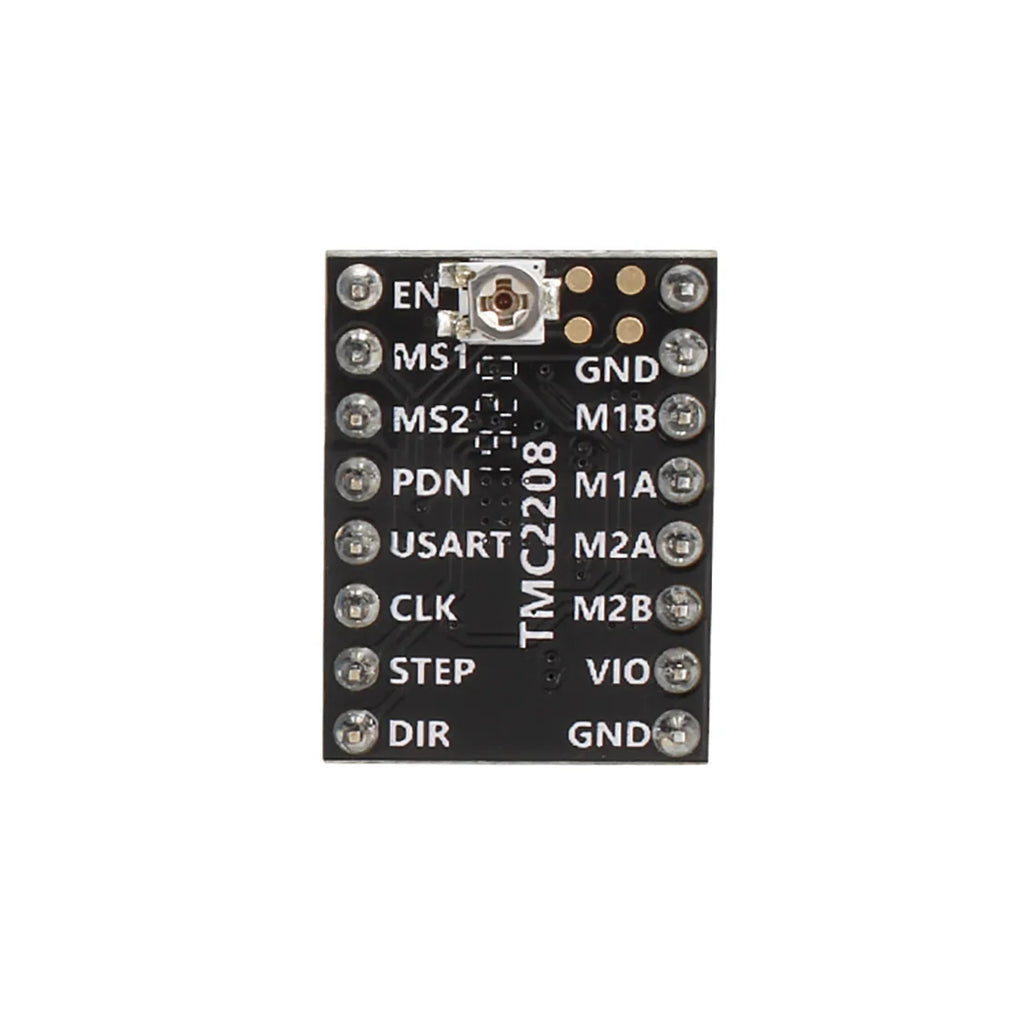

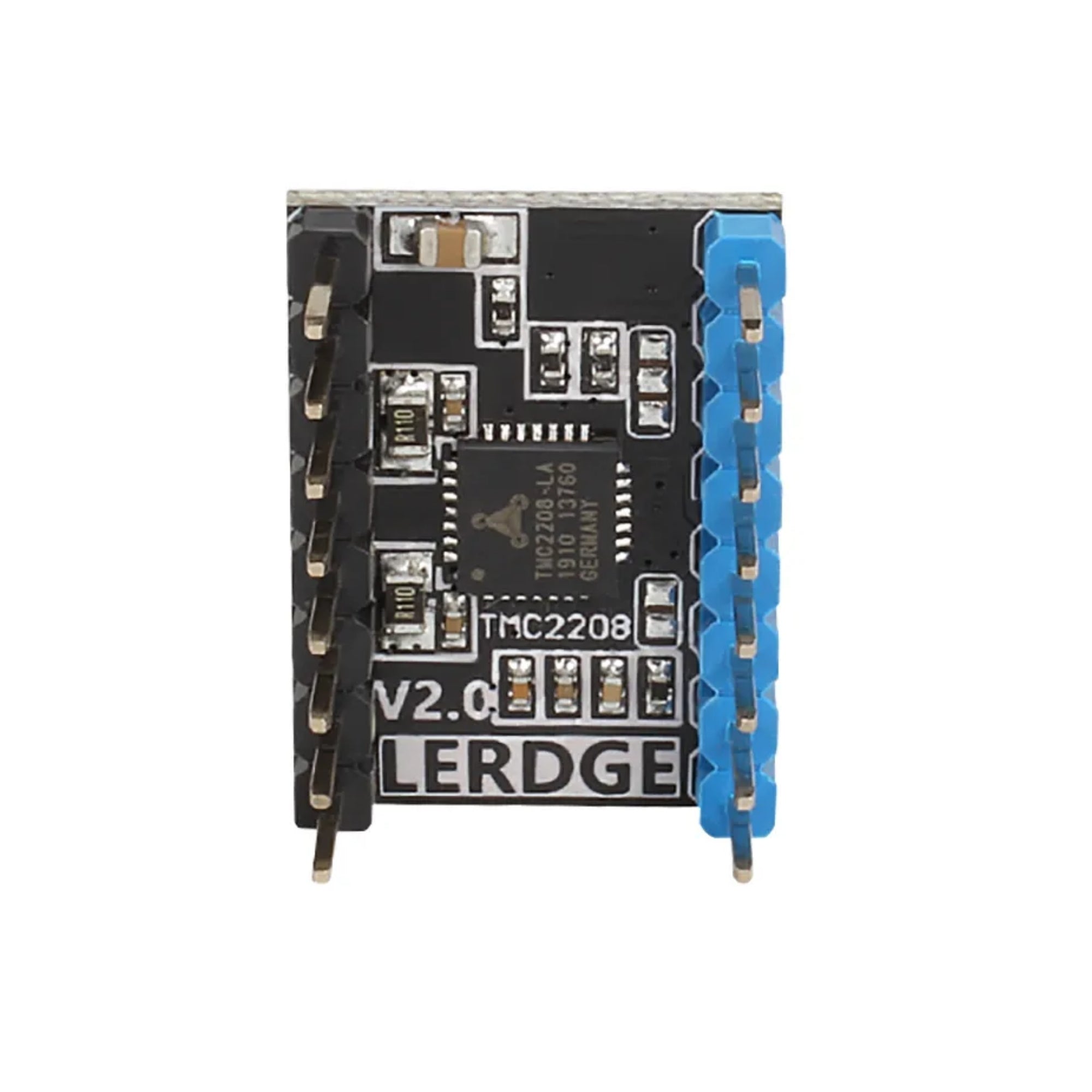

TMC2208 Stepper Motor Driver Module

The TMC2208 Stepper Motor Driver Module is a high-performance, ultra-silent stepper motor driver based on Trinamic’s advanced StealthChop™ technology. It is designed to deliver smooth, quiet, and precise motor control, making it especially popular in 3D printers, CNC machines, and precision motion systems. Compared to traditional drivers like A4988 or DRV8825, the TMC2208 significantly reduces noise, vibration, and heat while improving motor efficiency.

Technical Specifications:

• Driver IC: TMC2208 (Trinamic)
• Motor type: Bipolar stepper motor (2-phase)
• Operating voltage (motor): 5.5 V – 36 V
• Logic voltage (VIO): 3.3 V / 5 V compatible
• Output current: Up to ~1.4 A RMS (2.0 A peak, with cooling)
• Microstepping: Up to 1/256 (interpolated)
• Control interface: STEP / DIR
• Communication: UART (optional configuration)
• Chopper mode: StealthChop™ (quiet operation)
• Protection: Over-current, over-temperature, under-voltage
• Form factor: StepStick compatible

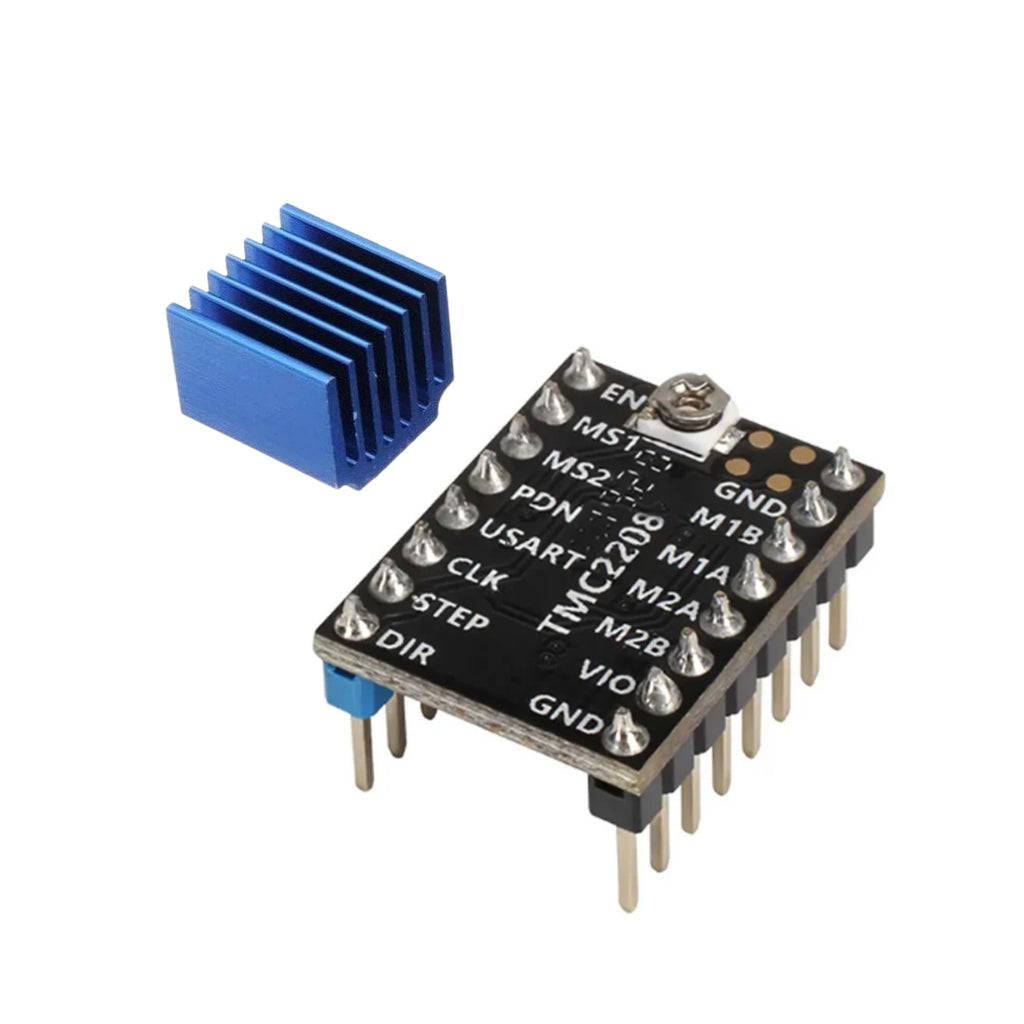

• Cooling: Passive (heatsink recommended)

Features:

• Ultra-silent motor operation using StealthChop™
• Very smooth motion with minimal vibration
• Supports high microstepping resolution
• Lower heat generation compared to legacy drivers
• UART interface for advanced configuration and diagnostics
• Compatible with 3.3 V and 5 V controllers
• Drop-in replacement for A4988 / DRV8825
• Compact design suitable for dense electronics layouts

Applications:

• 3D printers (X, Y, Z axis and extruders)
• CNC machines and engravers
• Robotics and automation systems
• Camera sliders and motion rigs
• Precision positioning systems
• DIY motion control projects
• Silent motor-driven equipment
