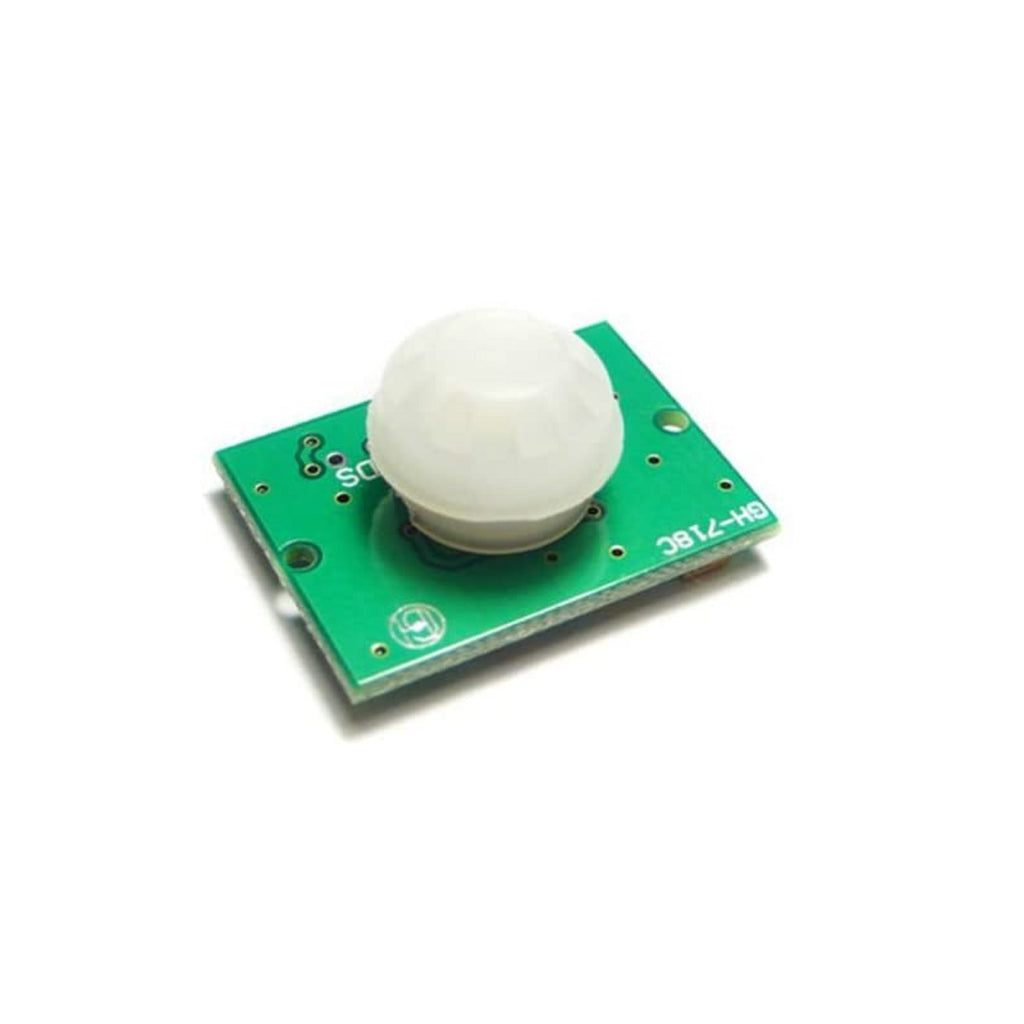

Tiny Mini Dome PIR Motion Sensor Module
The Tiny Mini Dome PIR Motion Sensor Module is a compact and versatile motion detection solution. This module utilizes a pyroelectric infrared (PIR) sensor to detect the presence of moving warm bodies, such as humans or animals, within its sensing range. With its small size and easy integration, it is ideal for a wide range of applications requiring motion-activated functionality.
Technical Specifications
- Sensor Type: Pyroelectric infrared (PIR)
- Detection Range: 3-7 meters (adjustable)
- Detection Angle: 110° wide angle
- Operating Voltage: 5-20V DC
- Current Consumption: <60μA (standby), <3mA (active)
- Output Signal: Digital (high when motion detected)
- Dimensions: 32mm x 24mm x 20mm
- Weight: 50 grams
Features
- Compact and Lightweight Design: The module's small size and low weight make it easy to integrate into various projects
- Wide Detection Angle: The 110° wide angle ensures comprehensive coverage of the monitored area
- Adjustable Sensitivity: The sensitivity potentiometer allows for fine-tuning the detection range to suit specific requirements
- Low Power Consumption: The module operates efficiently, with low current draw in both standby and active modes
- Digital Output: The digital output signal simplifies integration with microcontrollers and other digital systems
- Compatibility: The module is compatible with various platforms, including Arduino, Raspberry Pi, AVR, PIC, and 8051
Applications
- Security Systems: The module can be used in alarm systems to detect intruders and trigger alerts
- Automatic Lighting: It can be employed in motion-activated lighting systems for energy efficiency and convenience
- Home Automation: The module can be integrated into smart home systems for automated control based on motion detection
- Robotics: It can be used in mobile robots for navigation and obstacle avoidance.
- Battery-Powered Devices: The module's low power consumption makes it suitable for battery-operated devices
Package Includes
- 1 x Tiny Mini Dome PIR Motion Sensor Module
