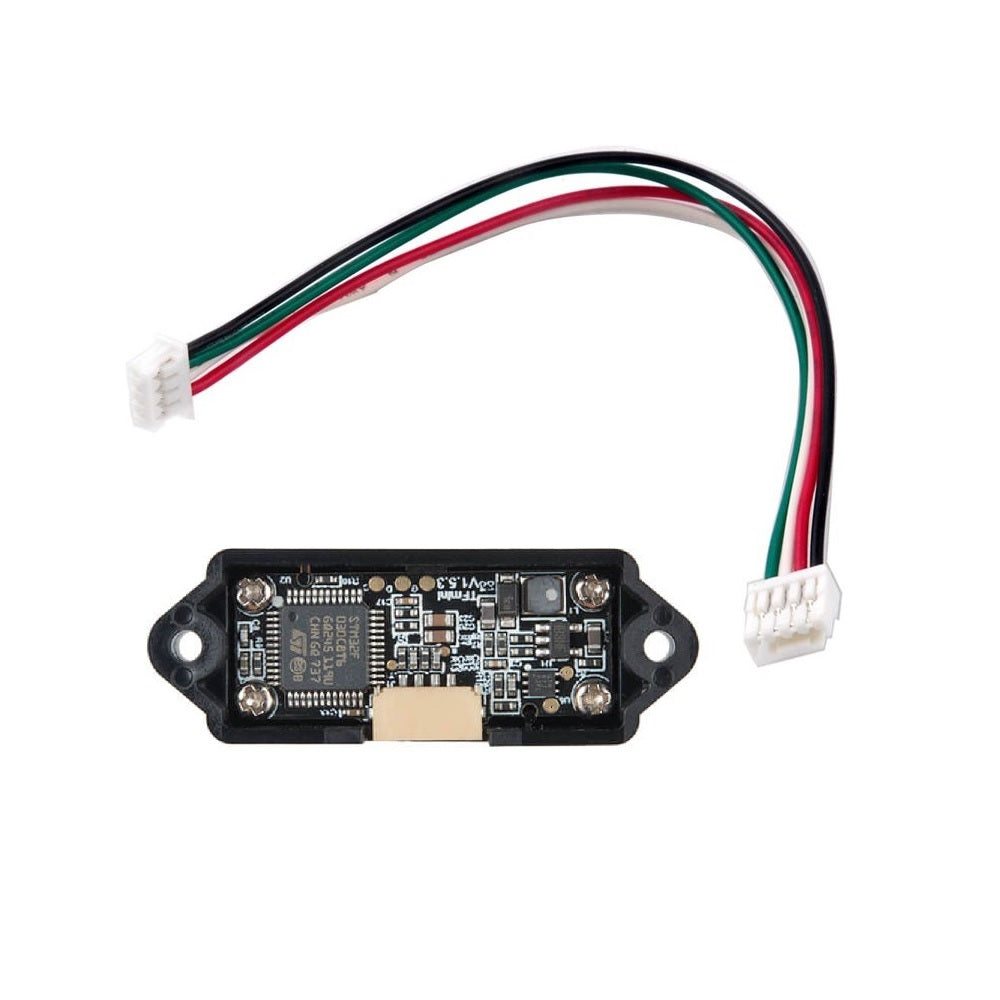

TFMini Micro LiDAR Distance Sensor (12m)

SKU: VM00842

Send Inquiry


TF-mini-S is a single-point ranging LiDAR based on the TF-mini upgrade. The blind zone is shortened from 30cm to 10cm, the outdoor performance and accuracy of different reflectivity are improved. The distance range is not disturbed by ambient light, which can be consistent with the indoor range and the accuracy is further optimized. The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time. It can achieve stable, accuracy, sensitive and high-frequency range detection.

Technical Specification:

  • Resolution: 1cm
  • Maximum Reads Per Second: 100
  • Minimum Detected Object Size at 2m: 20mm
  • Operating Wavelength: 850nm
  • Signal Acceptance Angle: 2.3°
  • Default I2C Address: 0x10
  • Size: 42mm*15mm*16mm (LxWxH)


  • Small volume, easily embeded to other products
  • The board has a Micro USB port onboard, soldered headers and integral antenna
  • ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters and power management module
  • This board is used with dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology


  • Robots outdoor obstacle avoidance
  • Intelligent parking. Crane operations
  • Vehicle position sensing
  • Vehicle detection for barrier gate control
