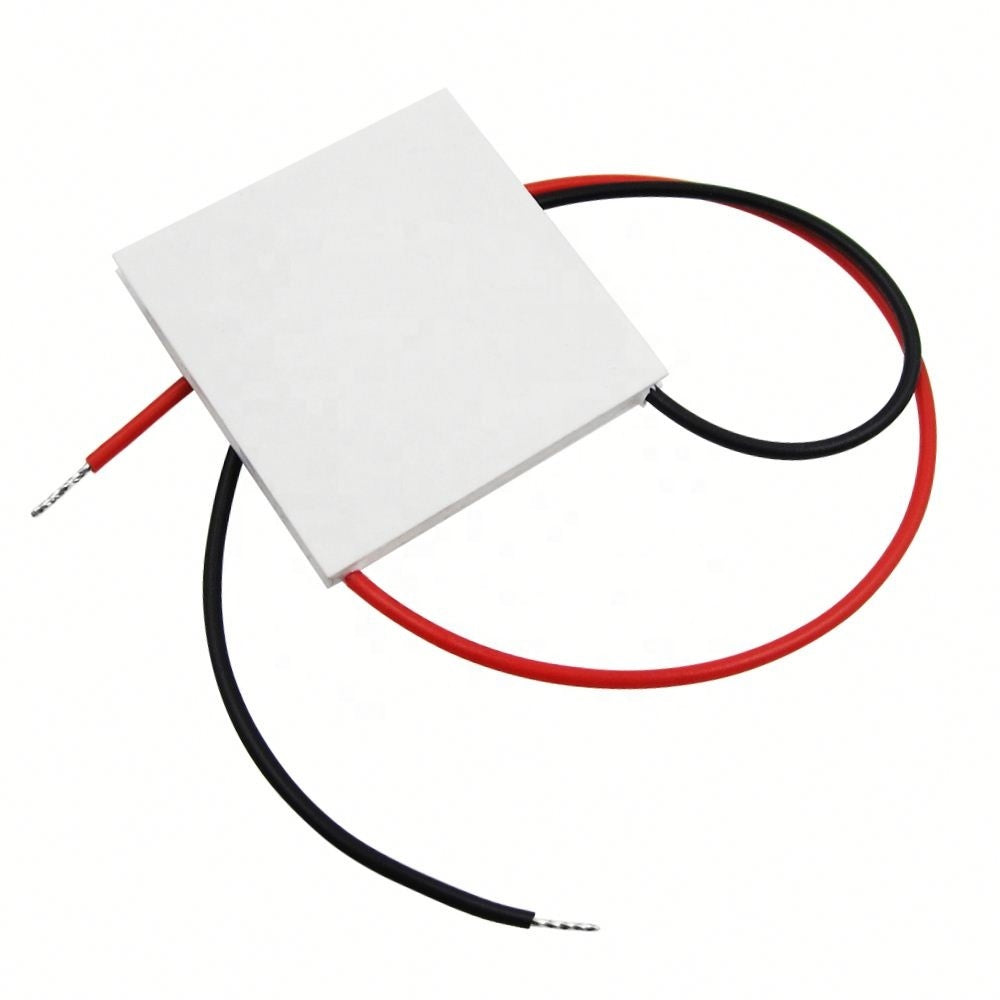

TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module

SKU: VM654

Send Inquiry

Description

The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm.

Thermoelectric coolers also are known as TEC or Peltier Module create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity.

This Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it.

Technical Specification:

  • Model: TEC1-12715
  • Operating Voltage: 12V
  • Maximum Voltage: 15V
  • Maximum Current: 15A
  • Maximum Power: 230W
  • Flatness: +/- 0.05mm
  • Sealing: Silicone Gel seal
  • Wire Length: 150mm
  • Size: 40mm*40mm*3.6mm (L*W*H)

Features:

  • Small module
  • Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of supply
  • Quality tested cooling cells.
  • Solid state, vibration free, noise-free
  • Simple to install and operate
  • Should use with a heat sink

Applications:

  • Peltier heater
  • Heat pump
  • Cooler
  • Solid-state refrigerator
