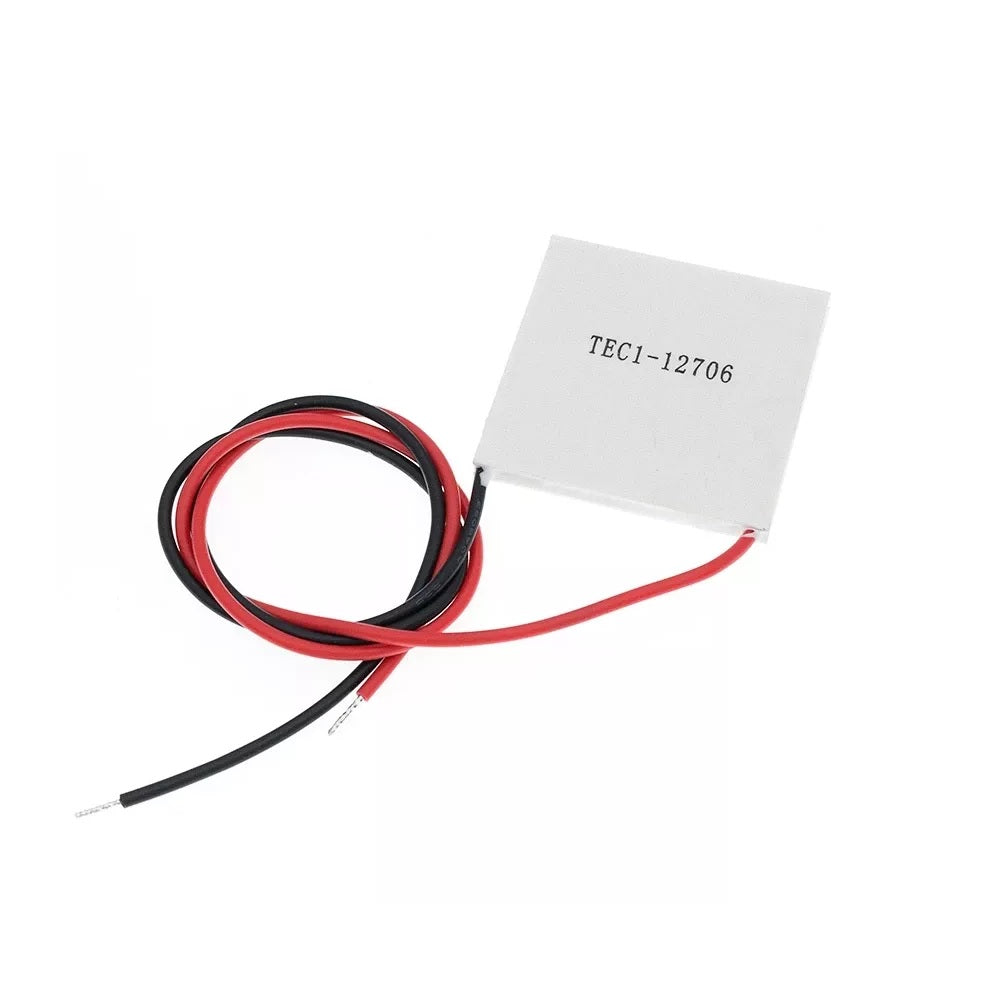

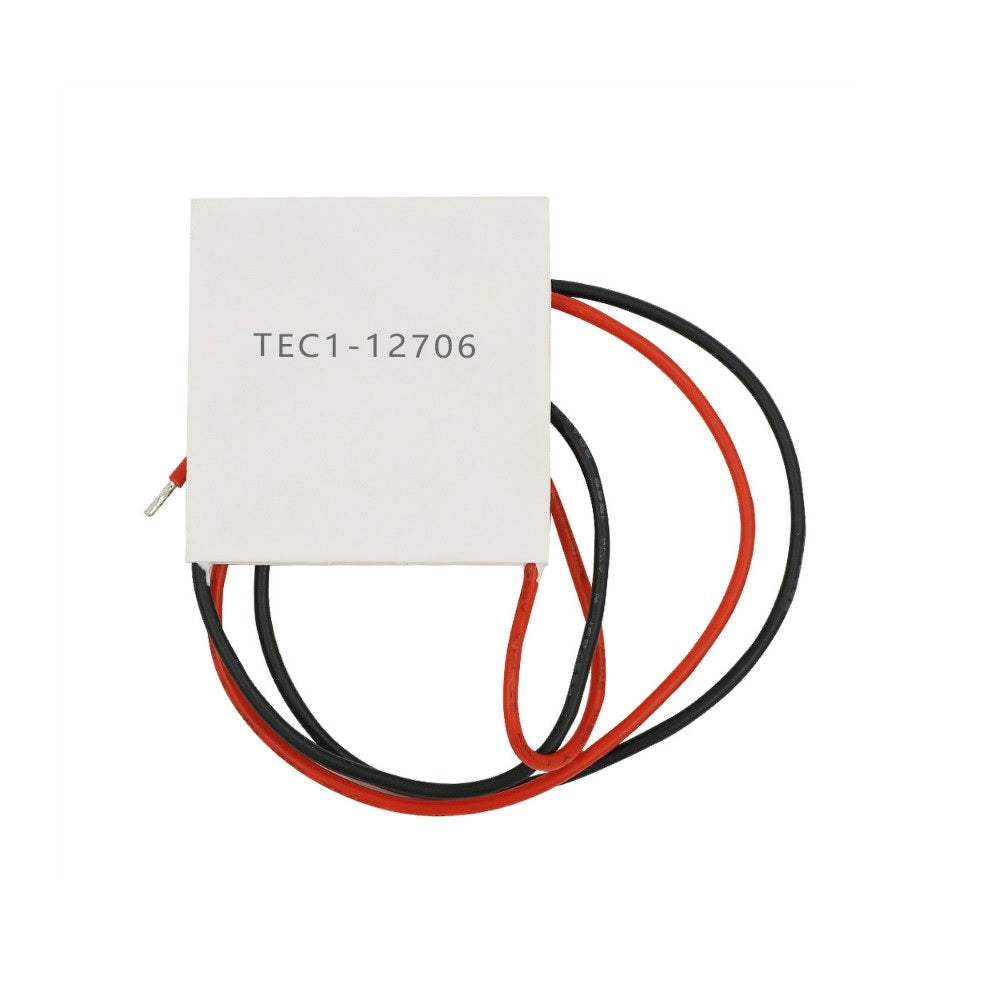

TEC1-12706 Thermoelectric Peltier Cooler Module

SKU: VM183

Send Inquiry

Description

Thermoelectric coolers (TEC or Peltier) create a temperature differential on each side. One side gets hot and the other side gets chilling cool. Therefore, they can be used to either warm something up or cool something down, depending on which side is used. You can also use temperature differential to generate electricity.

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.

When exposed to different temperatures on both sides it will also work as a generator and generate electricity depending on the temperature difference.

Technical Specification:

  • Voltage(V): 12V
  • Umax (V): 15.4V
  • Imax (A): 6A
  • Power Consumptions (W) : ~60W
  • Dimensions : 40mm x 40mm x 3.9mm
  • Cable Length: ~260mm
  • Dimension : 40 x 40 x 3.6mm
  • Power Cable Length : 30cm

Features:

  • Small module.
  • Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
  • Quality tested cooling cells.
  • Solid-state, vibration-free, noise-free.
  • Simple to install and operate.
  • Should use with a heat sink.

Applications:

  • Can be used as a temp sensor
  • Numerous applications include from personal water coolers / Coffee warmers
  • DIY Air Conditioning/Cooling
  • Cools water as in portable water coolers
  • Heats surfaces in seconds, like in plate warmers
