Description

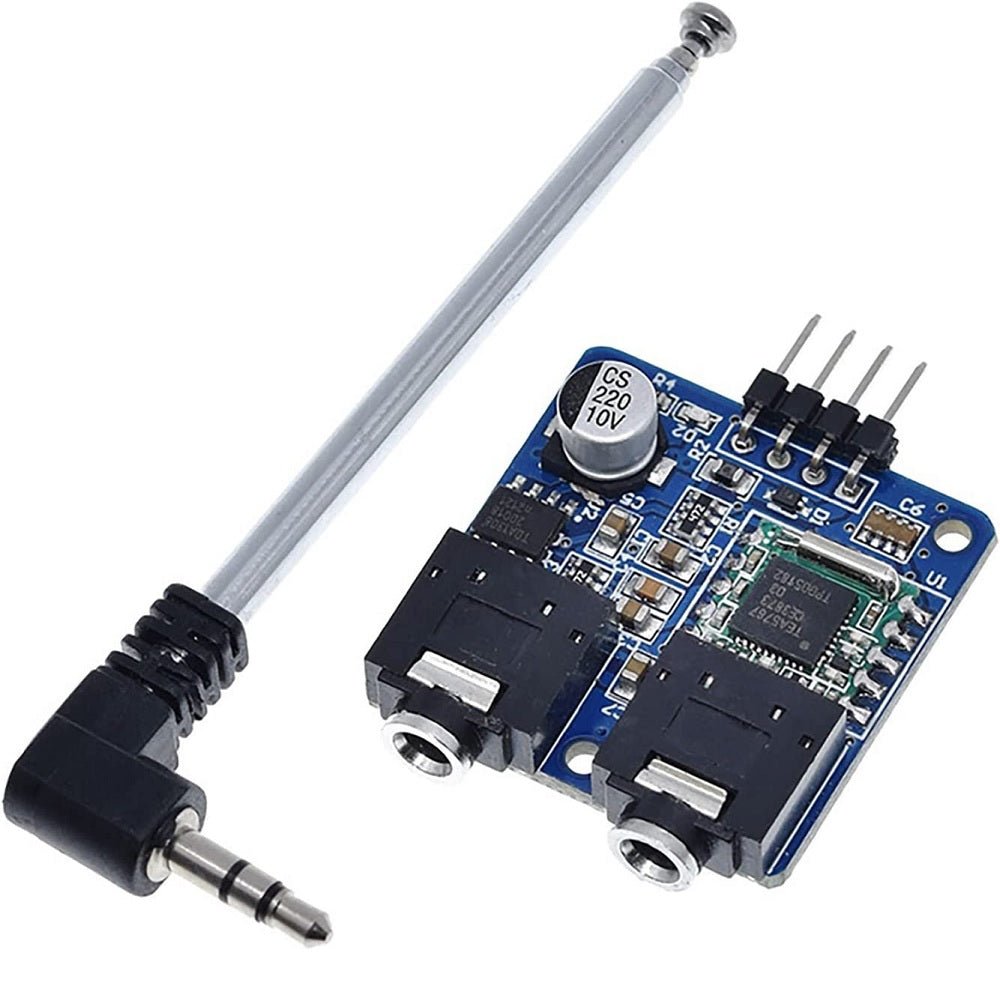

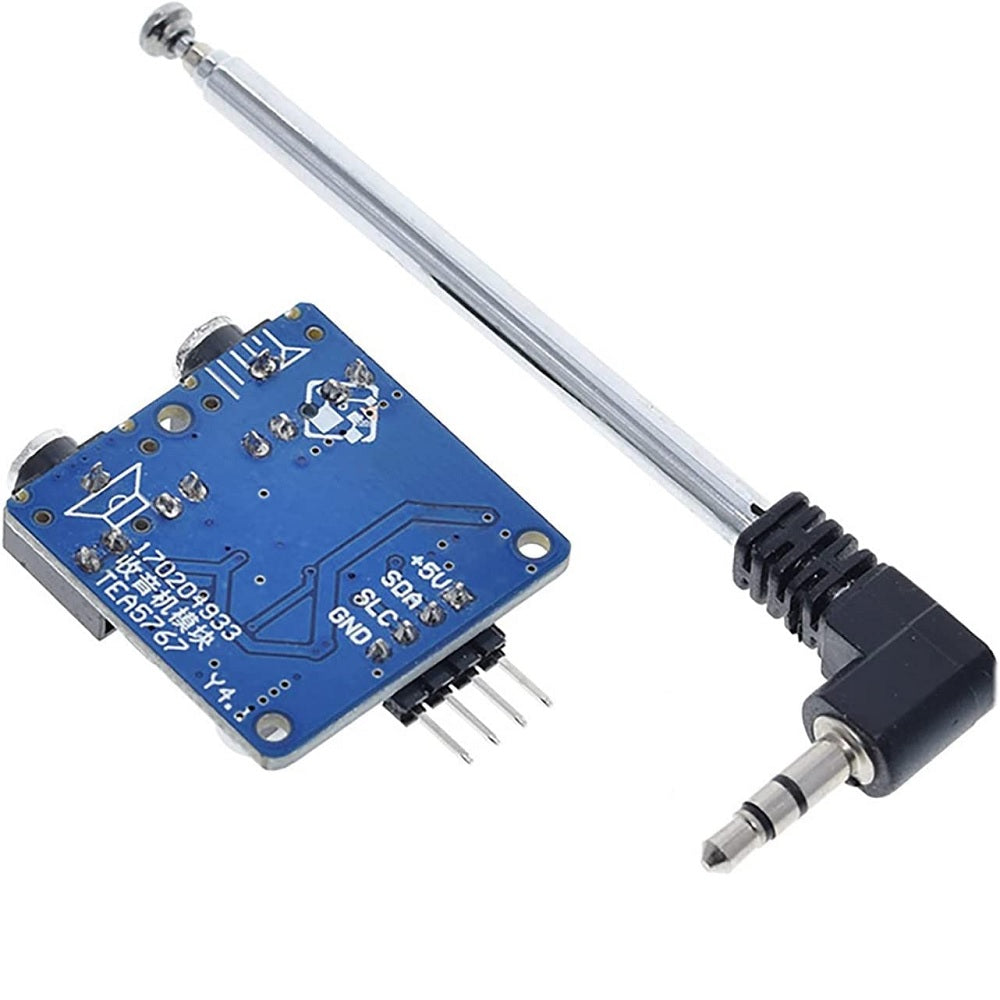

TEA5767 FM Radio Module is made using TEA5767, a single chip electronically tuned stereo FM radio for low voltage applications. It has fully integrated Intermediate Frequency (IF) selectivity and FM demodulator. The radio is completely adjustment free and is very easy to use as it requires only minimum external components. This module can be tuned to Japanese, US and European FM bands and it can be easily interfaced with Arduino Boards, Raspberry Pi and Microcontrollers via I2C interface.
Technical Specification:
- Model: TEA5767
- Input Supply voltage: 5V
- Frequency Range: 76 ~ 108MHz
- Communication interface: I2C
- Antenna Jack: 5mm
- Antenna can extend: 25cm
- PCB Dimensions: As per below
- Size: 41mm*30.5mm*8.5mm (L*W*H)
Features:
- Frequency range from 76-108MHZ automatic digital tuning.
- High sensitivity, high stability, low noise, radio module.
- High sensitivity (Using low noise RF input amplifier)
- High-gain automatic gain control (AGC) circuit
- LC tuned oscillator fixed chip with low cost
Applications:
- Internet of Things
- Smart home application
- Weather station monitoring
- Digital lighting design
