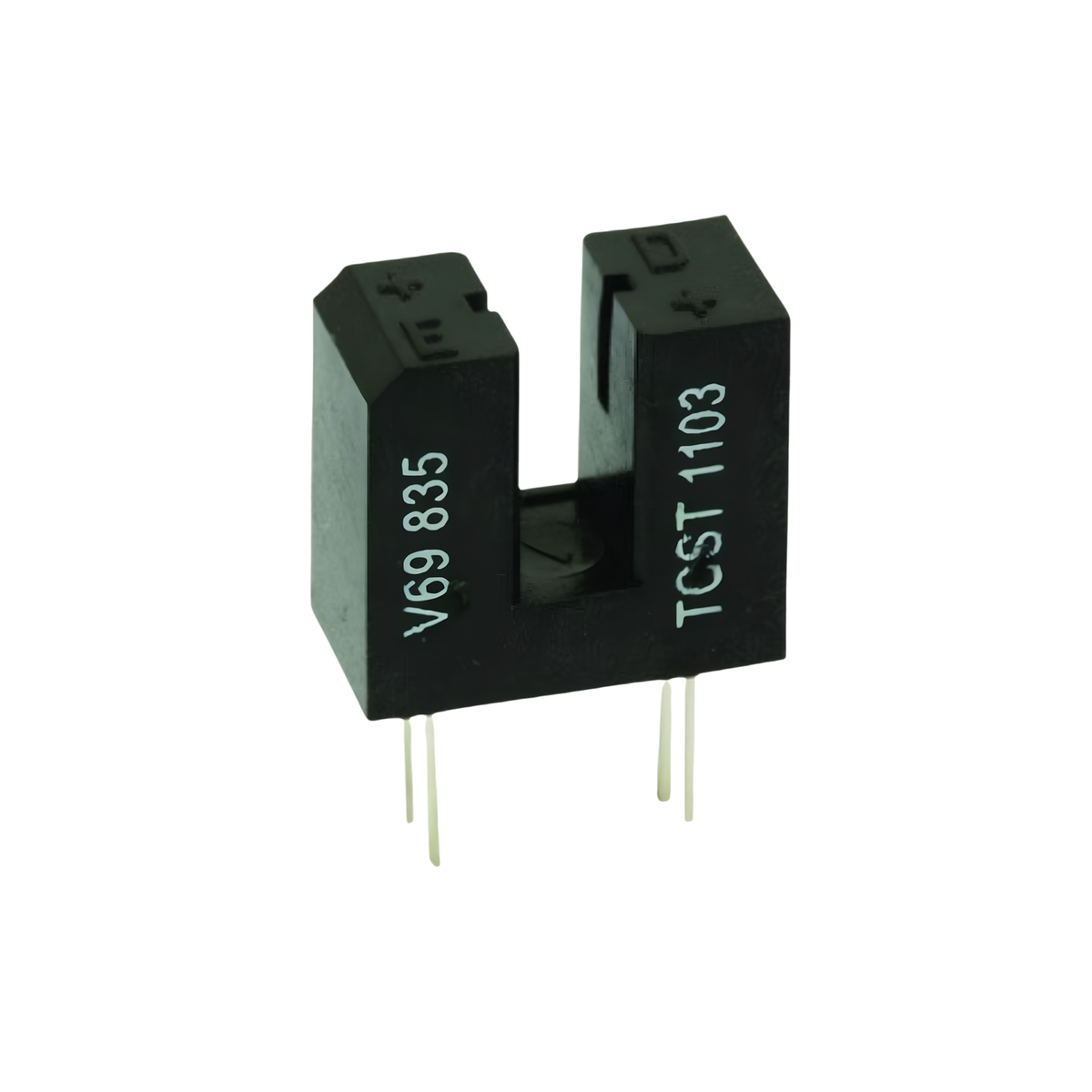

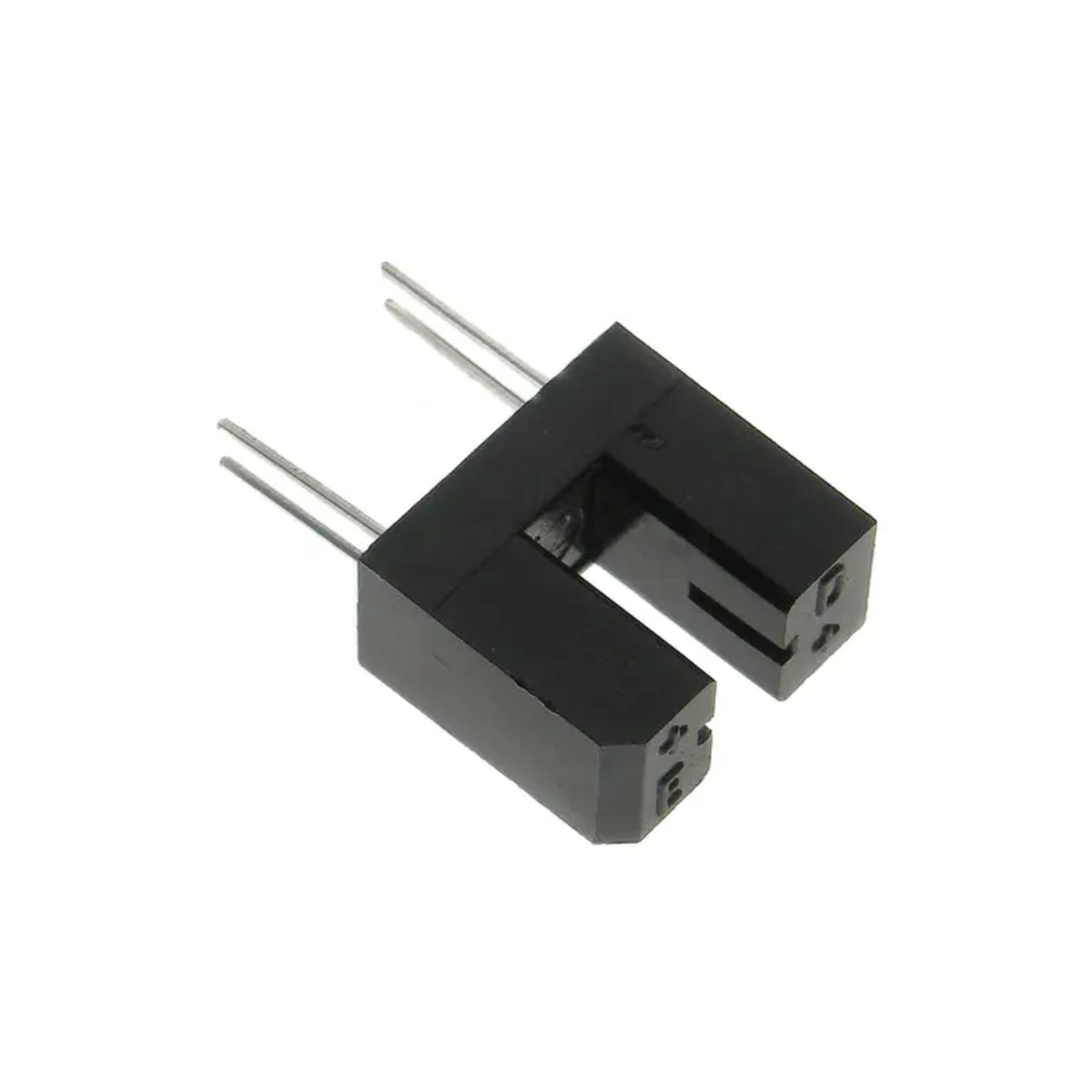

TCST1103 Sensor

The TCST1103 Sensor is a transmissive optical sensor designed for detecting objects, movement and position using an infrared emitter and phototransistor detector. Its slotted construction allows an object, encoder disc or mechanical part to interrupt the infrared beam, producing a corresponding output signal. The compact through-hole design makes it suitable for automation, counting, position sensing and embedded electronics projects.

Technical Specifications:

• Sensor Type: Transmissive Optical / Slot Sensor
• Detector Type: Phototransistor
• Slot Gap: Approx. 3.1 mm
• Aperture: Approx. 1 mm
• Forward Current: Up to 60 mA
• Collector-Emitter Voltage: Up to 70 V
• Package Type: Through-Hole / Leaded
• Dimensions: Approx. 11.9 × 6.3 × 10.8 mm

Features:

• Integrated infrared emitter and phototransistor
• Non-contact object and position detection
• Compact slotted sensor construction
• Fast optical switching response
• Easy PCB mounting
• Suitable for encoder and interruption sensing
• Reliable operation in embedded control systems

Applications:

• Object detection systems
• Rotary and linear encoders
• Position sensing
• Speed measurement
• Pulse counting circuits
• Printer and scanner mechanisms
• Robotics and automation
• Motor control and feedback systems
