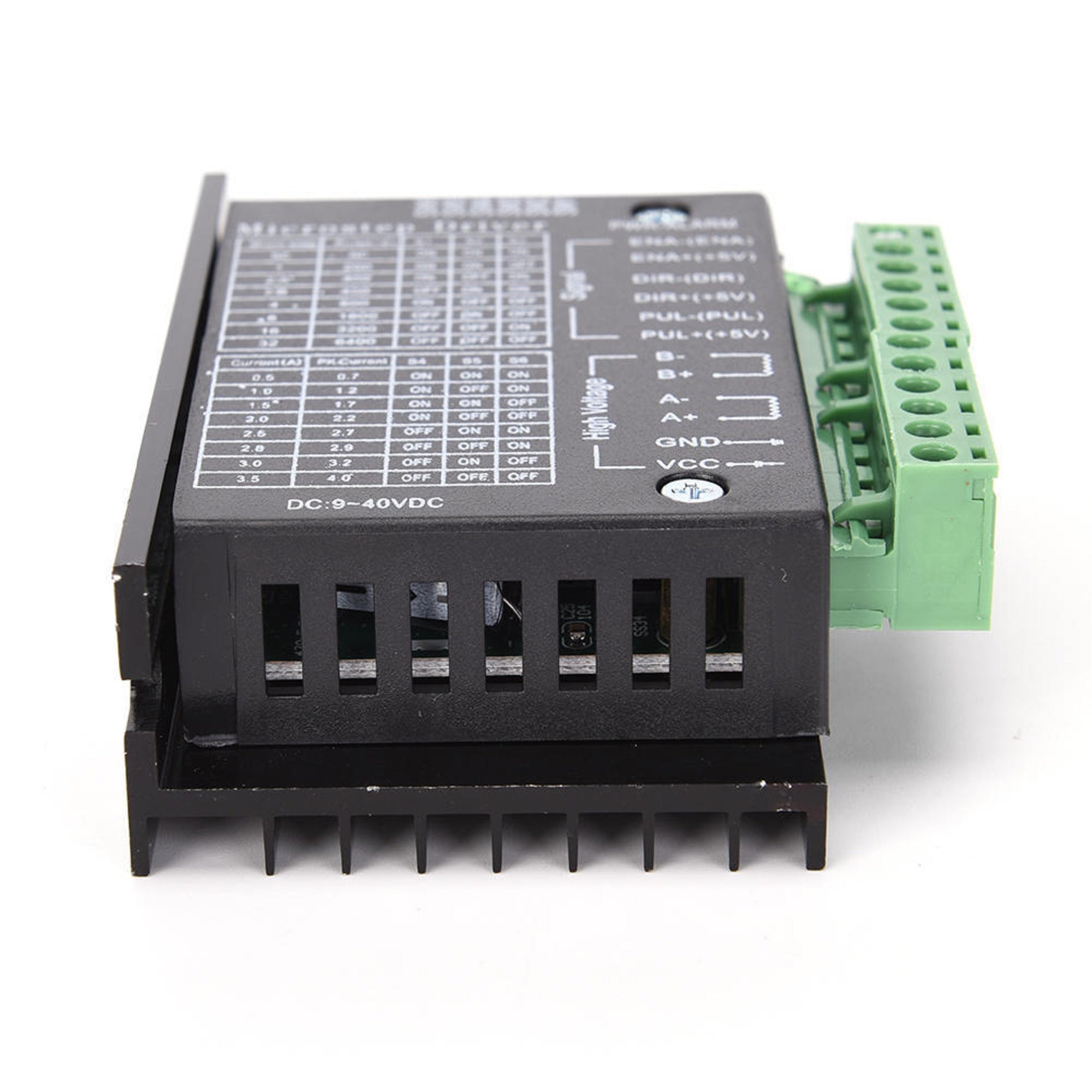

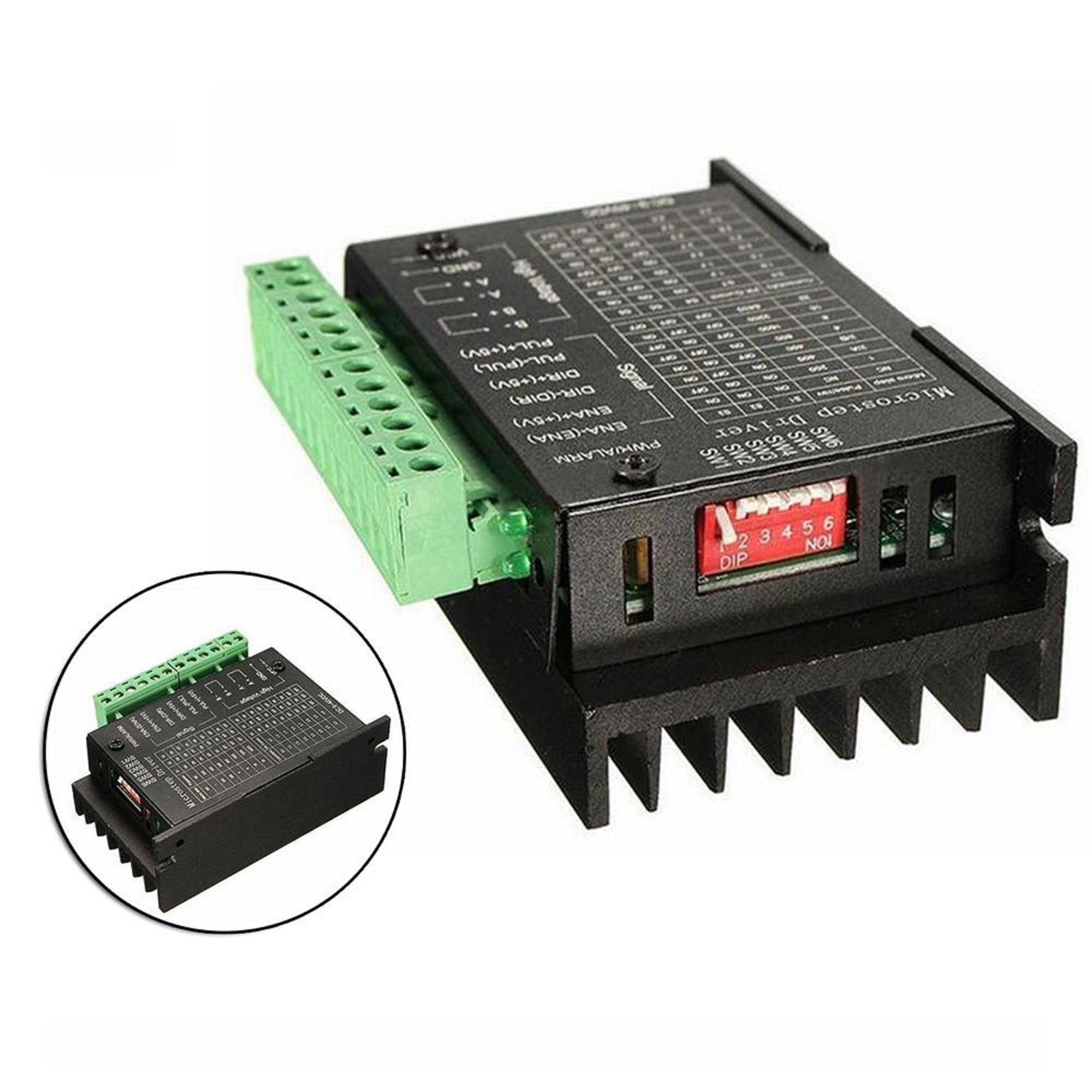

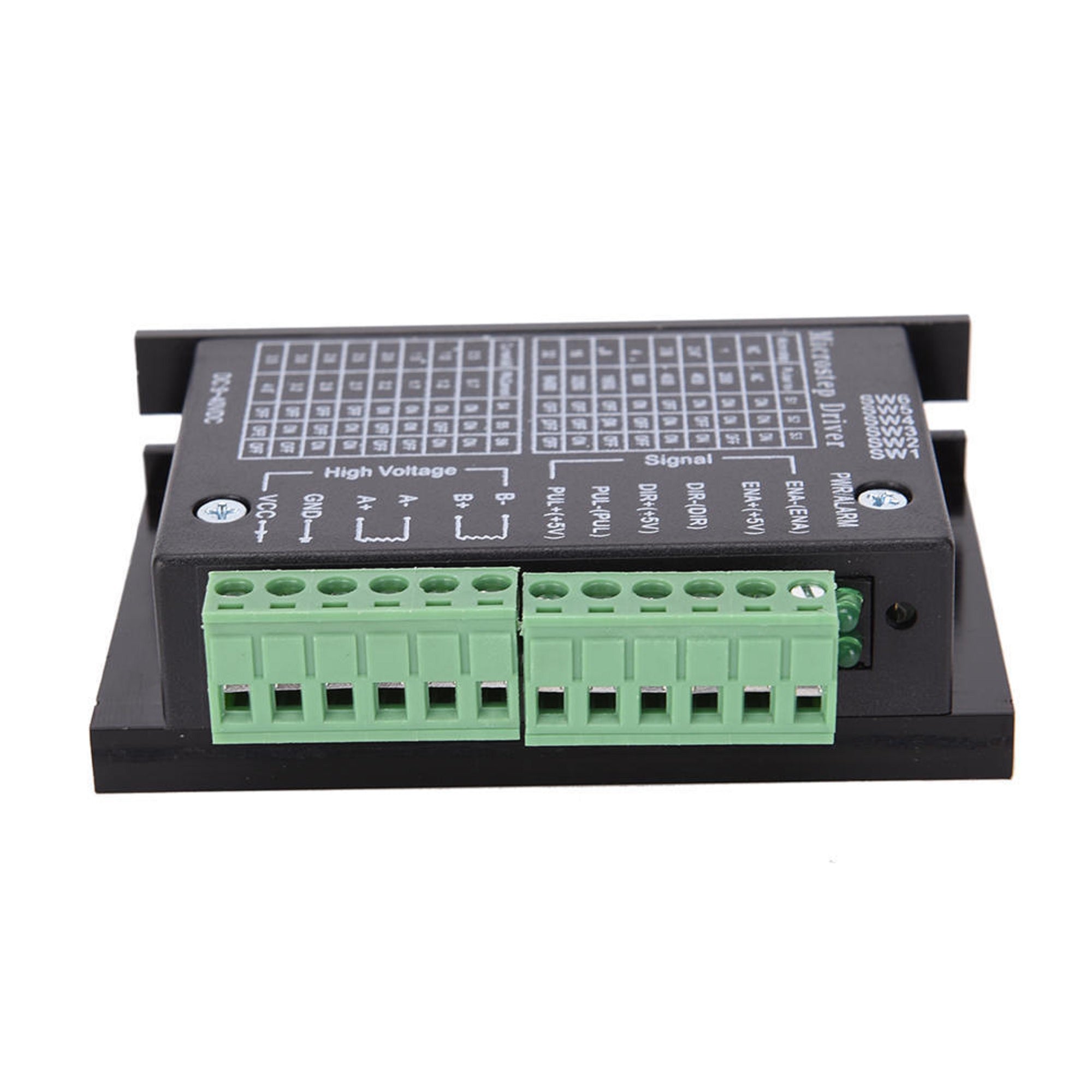

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis

SKU: VM00824

Price:
Sale price Rs. 550.00 (excl.18% GST)
Rs. 649.00

Description

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
TB6600 upgrade driver is a professional two-phase hybrid stepping motor driver, which can be used at home and abroad. Suitable for various brands, the current is 4.0A and below, the outer diameter is 39 (Nema16), 42 (Nema17), 57 (Nema23) mm four-wire, six-wire, eight-wire, two-phase hybrid stepper motor suitable for all A variety of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, phototypesetting, plotter, CNC machine tool, pick and place equipment, etc. Expect low-cost, cost-effective current operations among users

Features :

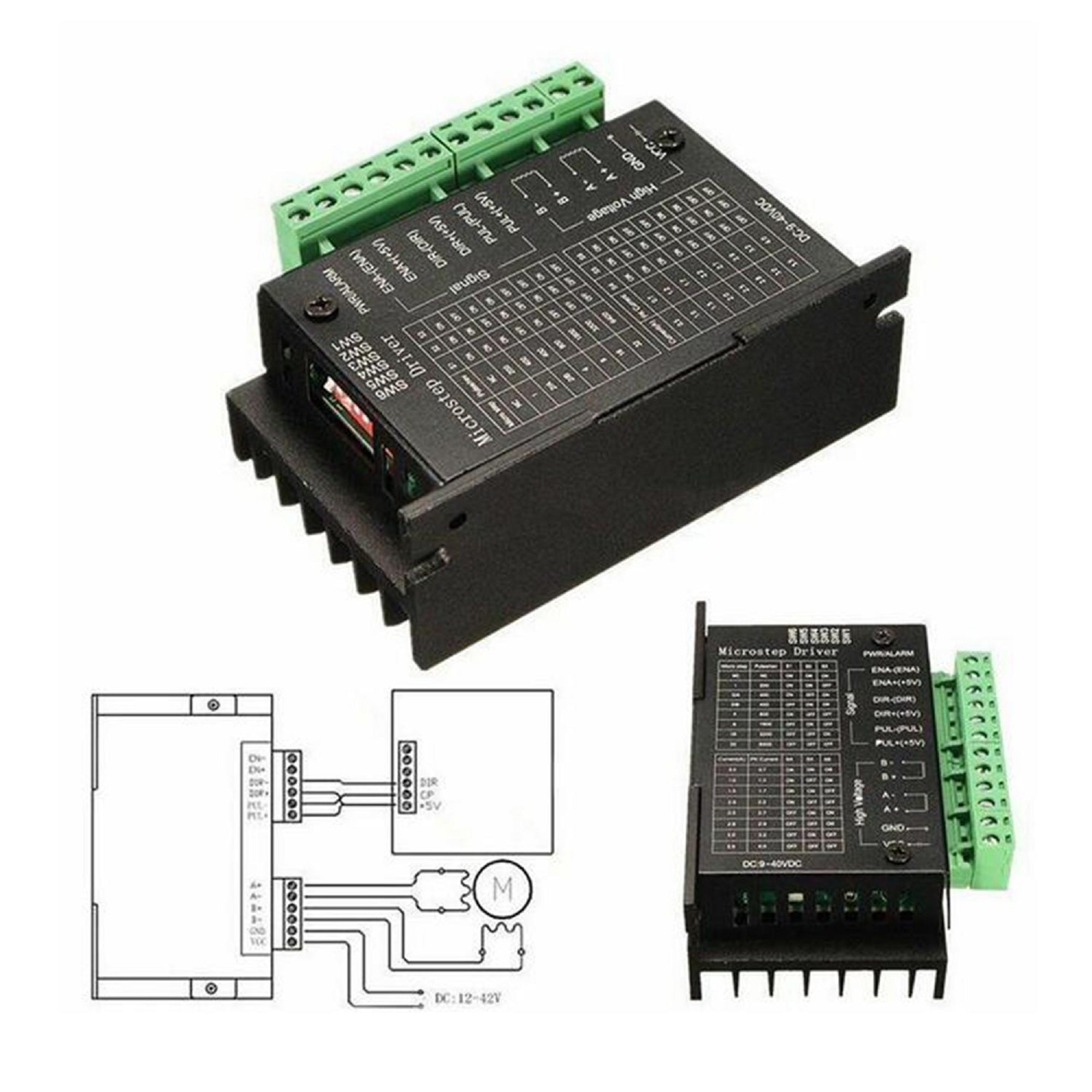

  • Signal input: single-ended, pulse/direction

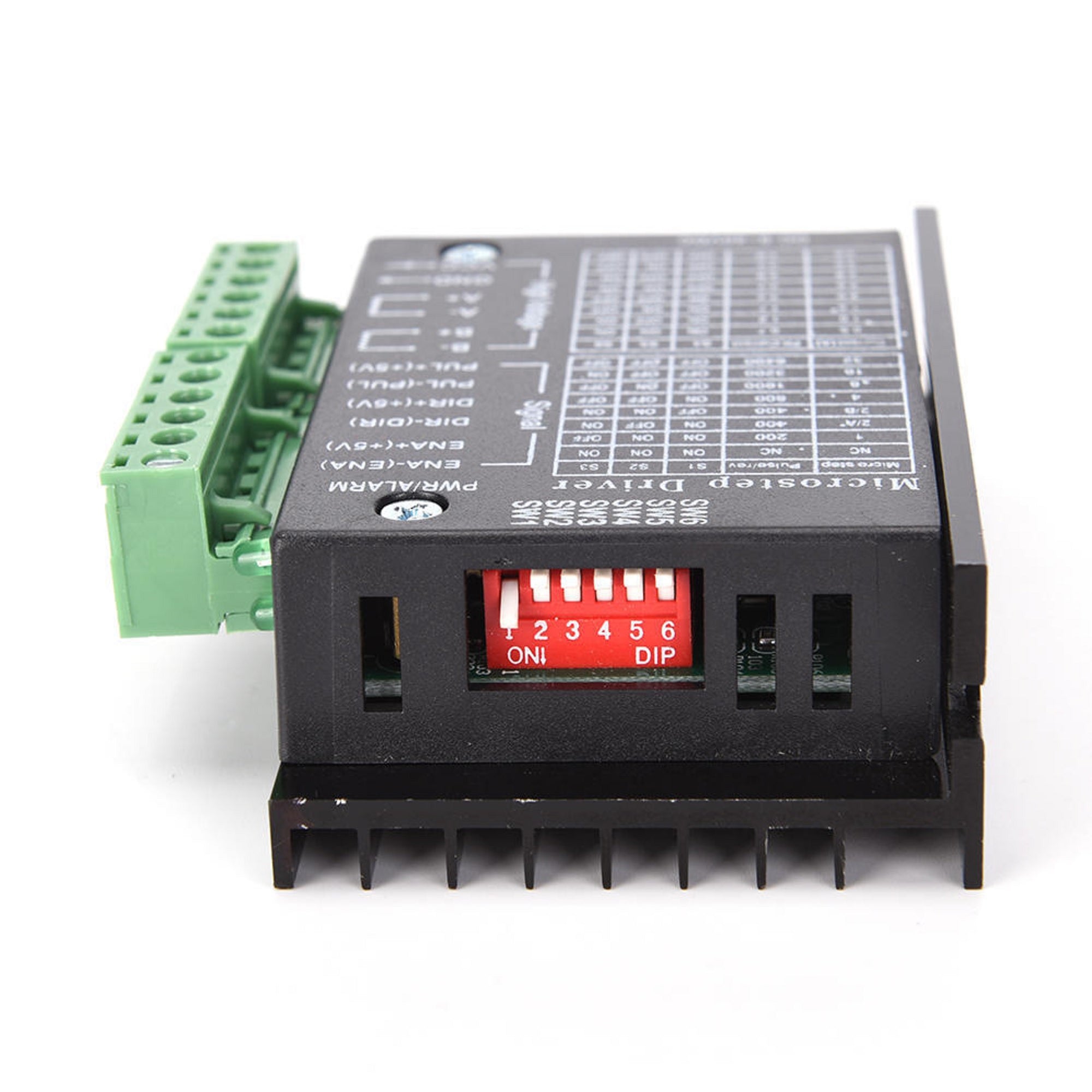

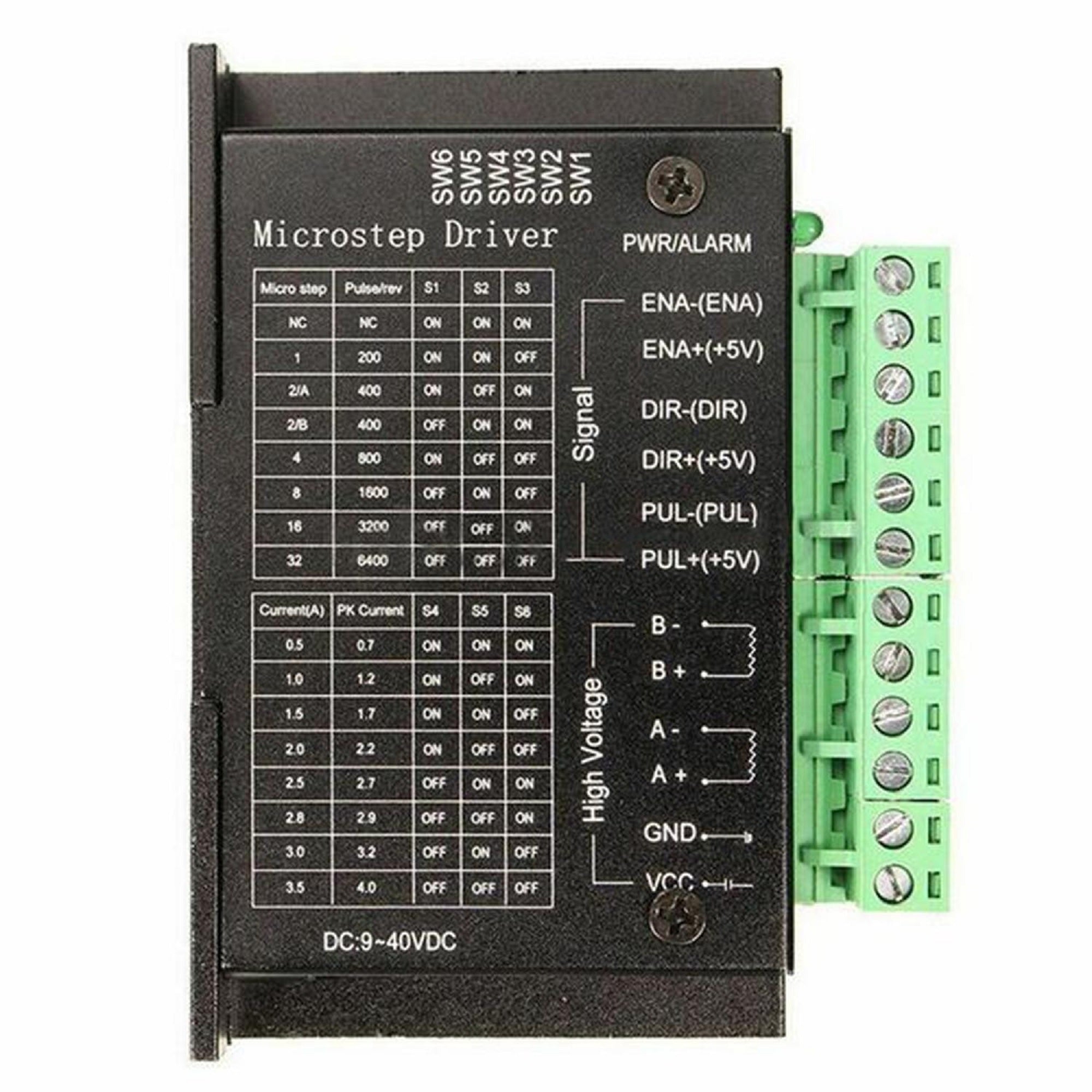

  • Subdivision optional: 1/2/4/8/16/32 subdivision
  • Output current: 0.5A-4.0A
  • Input voltage: 9-42VDC (12-30V recommended)
  • The quiescent current will be automatically halved.
  • Can drive 4, 6 and 8 lead two-phase and four-phase stepper motors
  • Optocoupler isolation signal input, strong anti-interference ability
  • With overheating, overcurrent, under voltage lockout, input voltage reverse connection protection and other functions

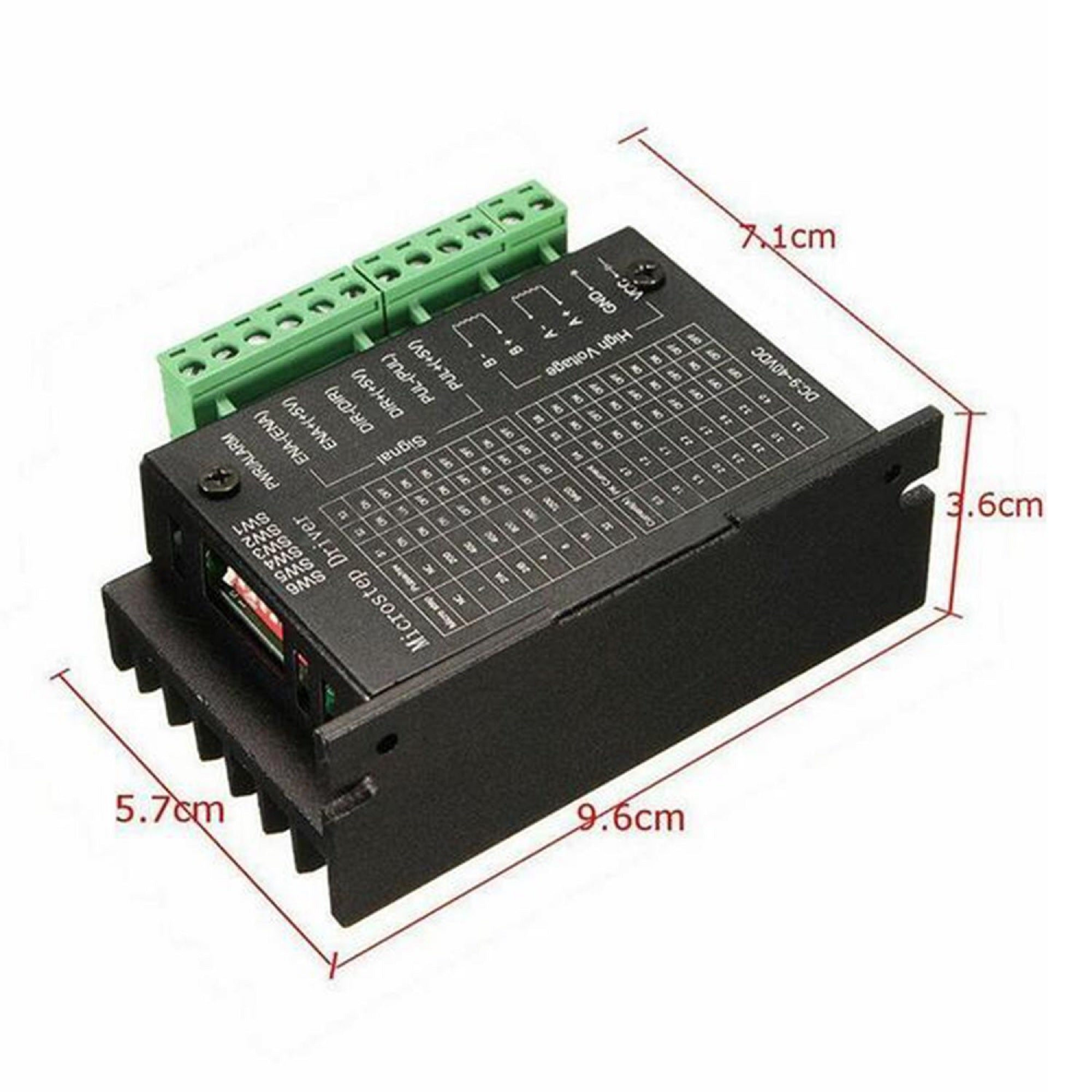

  • Small size, easy to install
  • General external signal 3.3-24V, no series resistance
  • Operating temperature: -10 to 45 degrees Celsius
  • Storage temperature: -40 to 70 degrees Celsius
  • Chopping frequency: less than 50KHZ
Package list:
1 x TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
