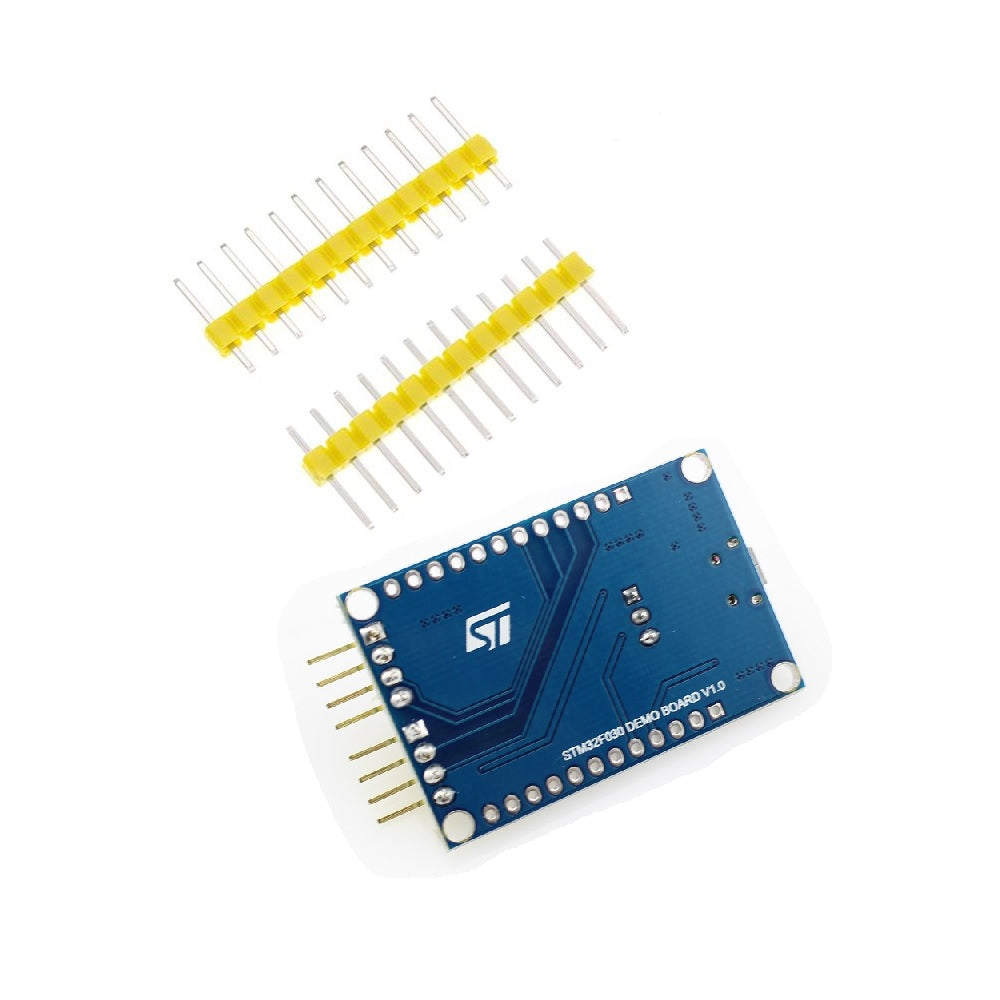

STM32F030F4P6 core board development board core ARM CORTEX-M0

SKU: VM617

Price:
Sale priceRs. 540

Description

The STM32F030F030F4P6 microcontrollers incorporate the high-performance Arm Cortex-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

Technical Specification:

  • CoKernel: Cortecx-M0(32-bit)
  • Input Voltage: 3.3 V
  • Output Voltage: 5-3.3 V
  • Storage resources: 16K Flash, 4KB SRAM
  • External crystal: 8MHz.
  • Debug download interface: SWD/ISP
  • Board power supply: Micro-USB(DC-5V)
  • Size: 48mm*30mm*8mm (L*W*H)

 Features:

  • Support CAN 2.0B protocol
  • Use High-speed CAN transceiver TJA1050
  • SPI control for expand Multi CAN bus interface
  • Use serial port could view the communication data
  • With independent key, LED indicator, Power indicator
  • With power pin

Applications:

  • Application control and user interfaces
  • Handheld equipment
  • A/V receivers and digital TV
  • PC peripherals, gaming and GPS platforms
  • Industrial applications
  • Inverters, printers, scanners, alarm systems, video intercoms, and HVACs
