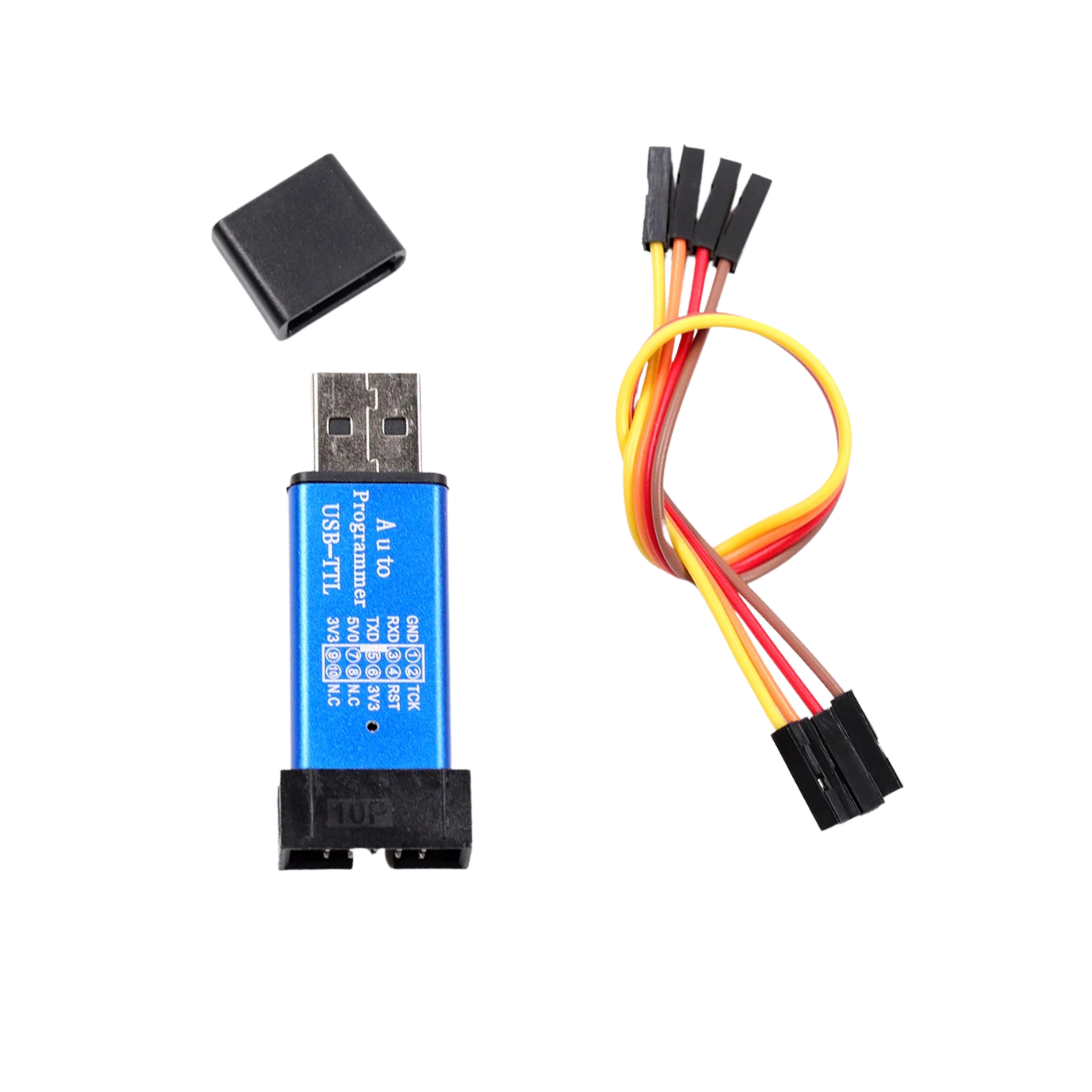

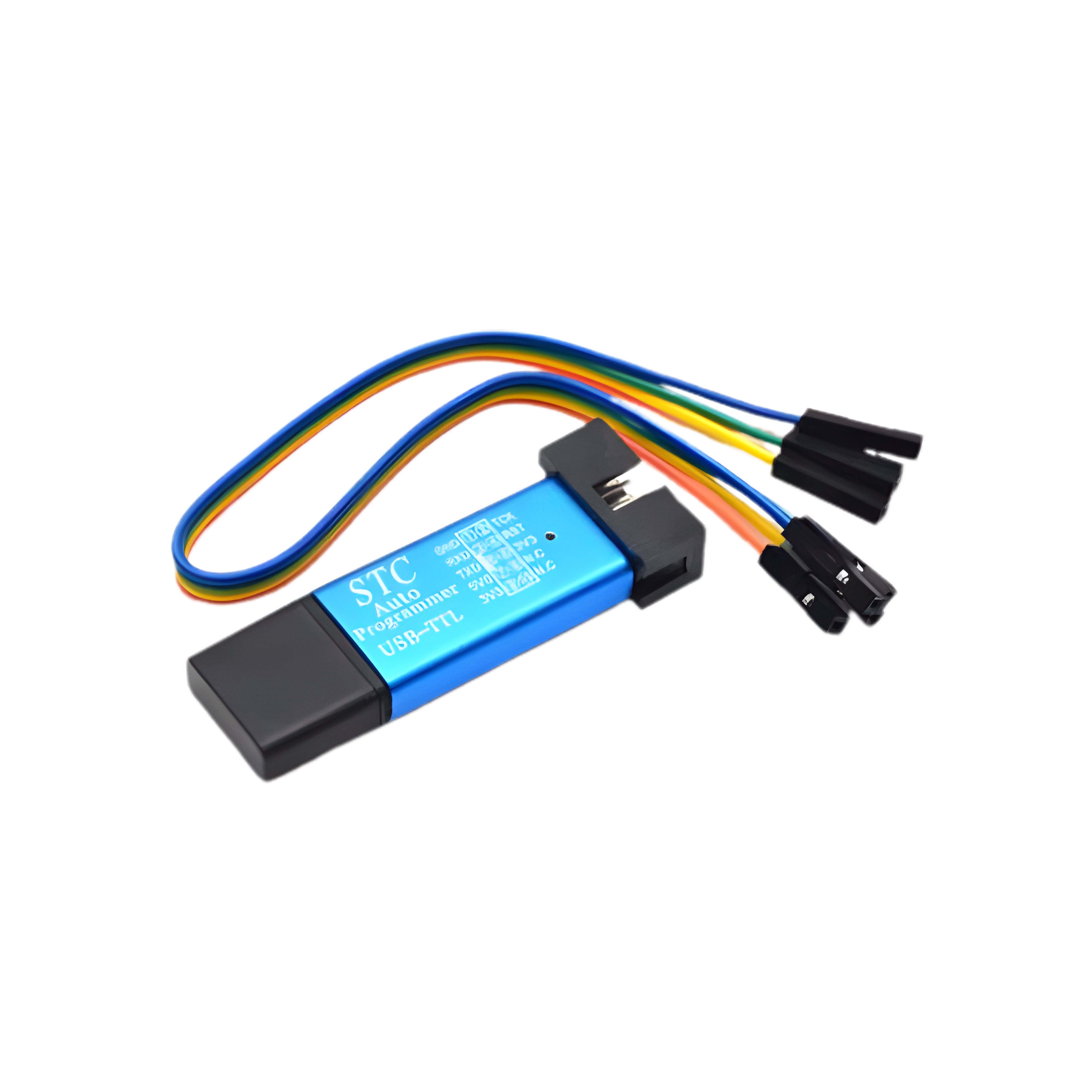

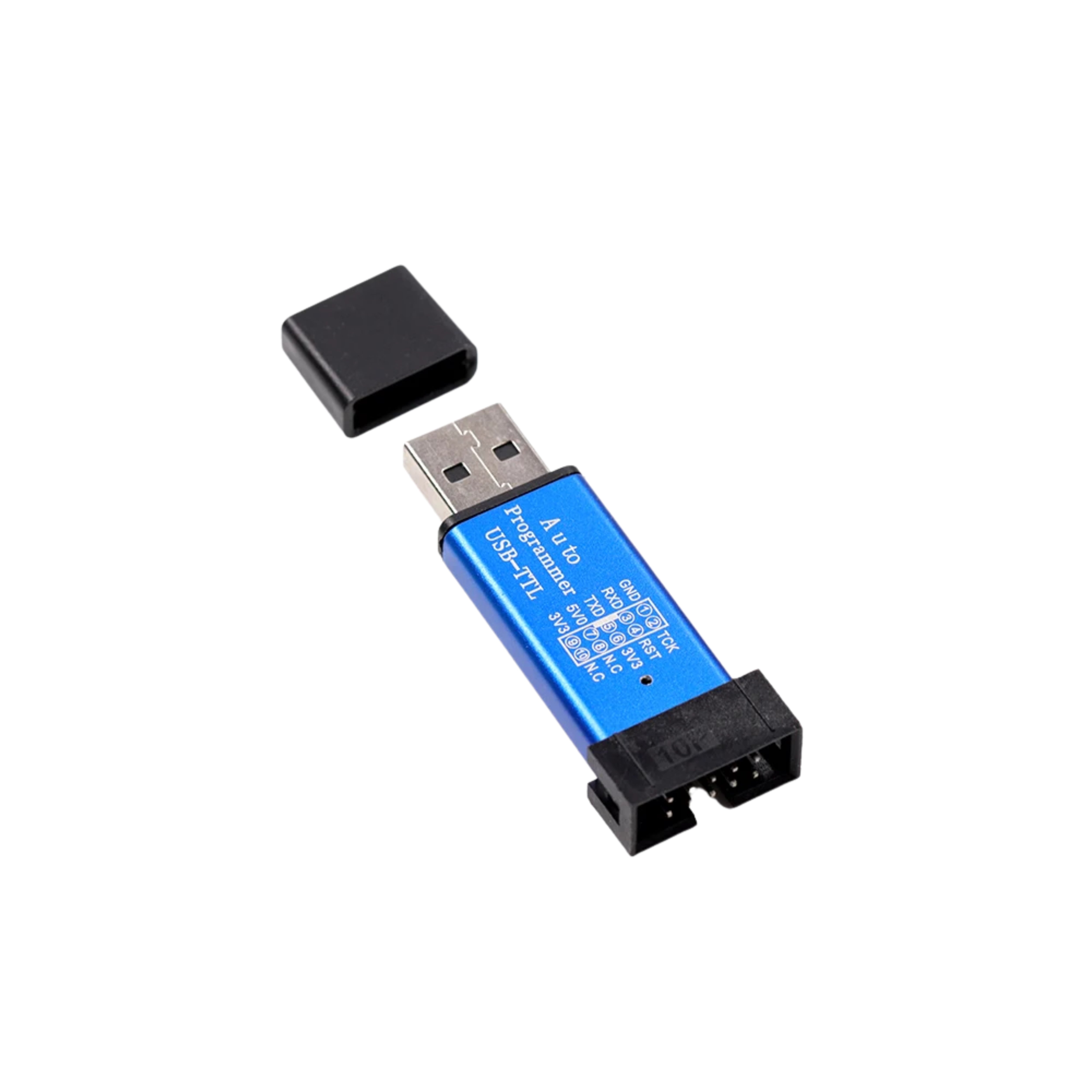

STC Auto Programmer USB to TTL Module

The STC Auto Programmer USB to TTL module is a compact and versatile interface device used for programming and serial communication with microcontrollers, especially STC series MCUs. It converts USB signals from a computer into TTL-level serial signals, enabling easy uploading of firmware and debugging. The module supports automatic download functionality, simplifying the programming process without the need for manual reset. It is widely used in embedded development, prototyping, and educational projects.

Technical Specifications:

• Interface Type: USB to TTL Serial Converter

• Chipset: Commonly based on CH340 / CP2102 / FT232 (variant dependent)

• Operating Voltage: 3.3V / 5V selectable

• Communication Protocol: UART (TTL level)

• Supported Baud Rate: Up to 115200 bps or higher

• USB Standard: USB 2.0 compatible

• Pin Configuration: TXD, RXD, GND, VCC, DTR/RTS (auto programming support)

• Compatibility: Windows, Linux, macOS (driver required for some chipsets)

• Power Output: 3.3V / 5V from USB

• Cable Interface: Female jumper wires included

Features:

• Supports automatic programming for STC microcontrollers

• Dual voltage output (3.3V and 5V selectable)

• Plug-and-play USB interface (driver may be required)

• Compact and portable design

• Stable and reliable serial communication

• Includes jumper wires for easy connection

• Suitable for debugging and firmware uploading

• Wide compatibility with different microcontroller platforms

Applications:

• Programming STC microcontrollers

• Serial communication with Arduino, ESP, and other MCUs

• Firmware uploading and debugging

• Embedded system development

• DIY electronics and prototyping

• UART communication interface projects

• Educational and laboratory use
