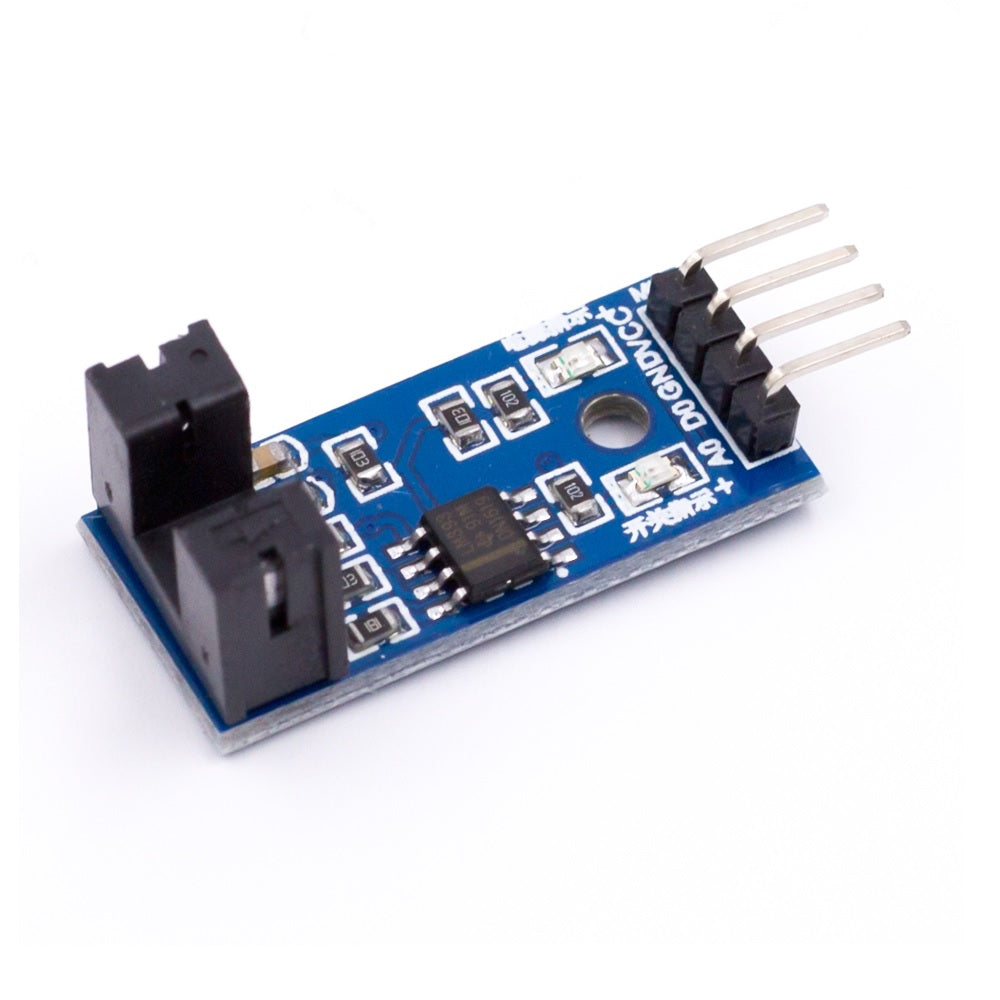

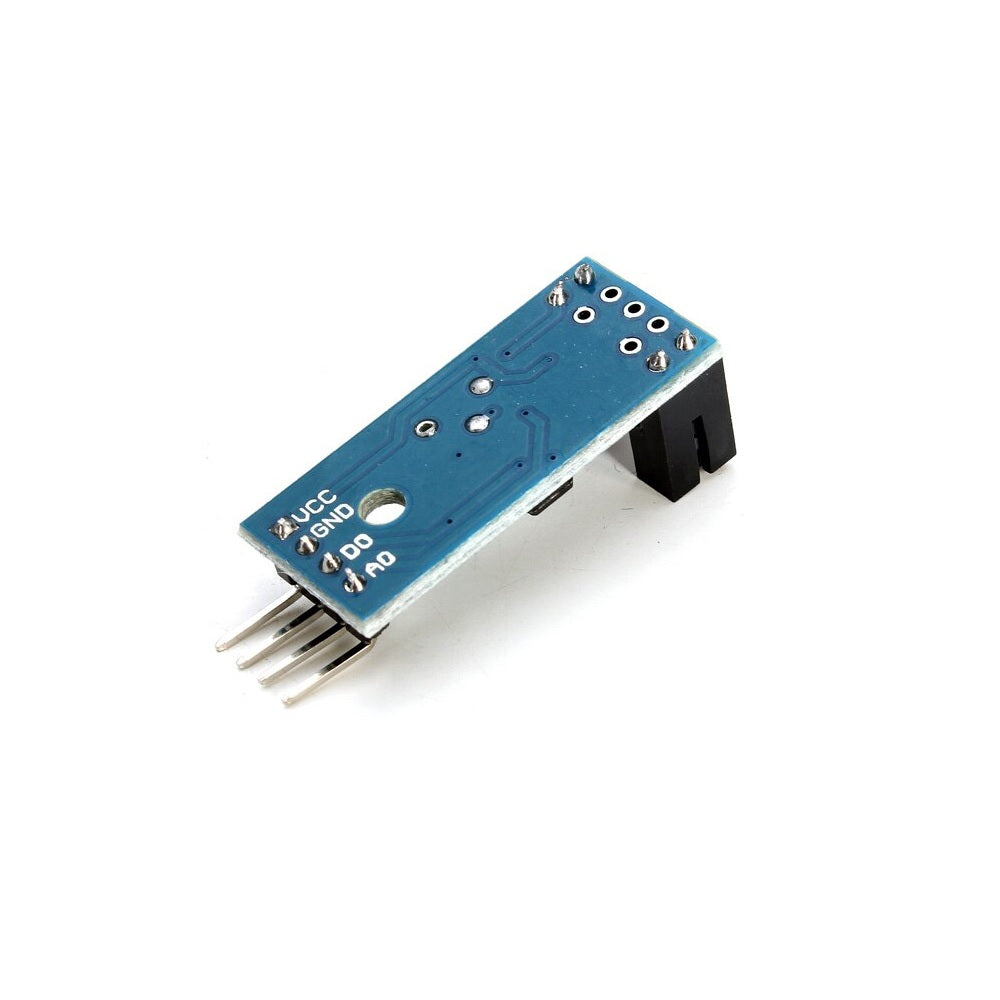

Speed Measuring Sensor Module

SKU: VM00676

Send Inquiry


Widely used in motor speed detection, pulse count, the position limit, etc. The DO output interface can be directly connected to a micro-controller IO port, if there is a block detection sensor, such as the speed of the motor encoder can detect. DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.

Technical Specification:

  • Operating Voltage: 3.3V to 5V
  • Comparator: LM393
  • Output: Digital Switch Output (0 and 1)
  • Size: 32mm*14mm*13mm (L*W*H)


  • Equipped with a fixed bolt hole, easy install
  • Using imported groove optical coupling sensor, width 5mm
  • It has the output state light, if output high level, the lights are off. if output low level, it on
  • If it covered, it will output high level; otherwise, its output low level
  • Good signal and waveform, with a strong driving ability for more than 15mA


  • Widely used in motor speed detection
  • Pulse count
  • The position limit
