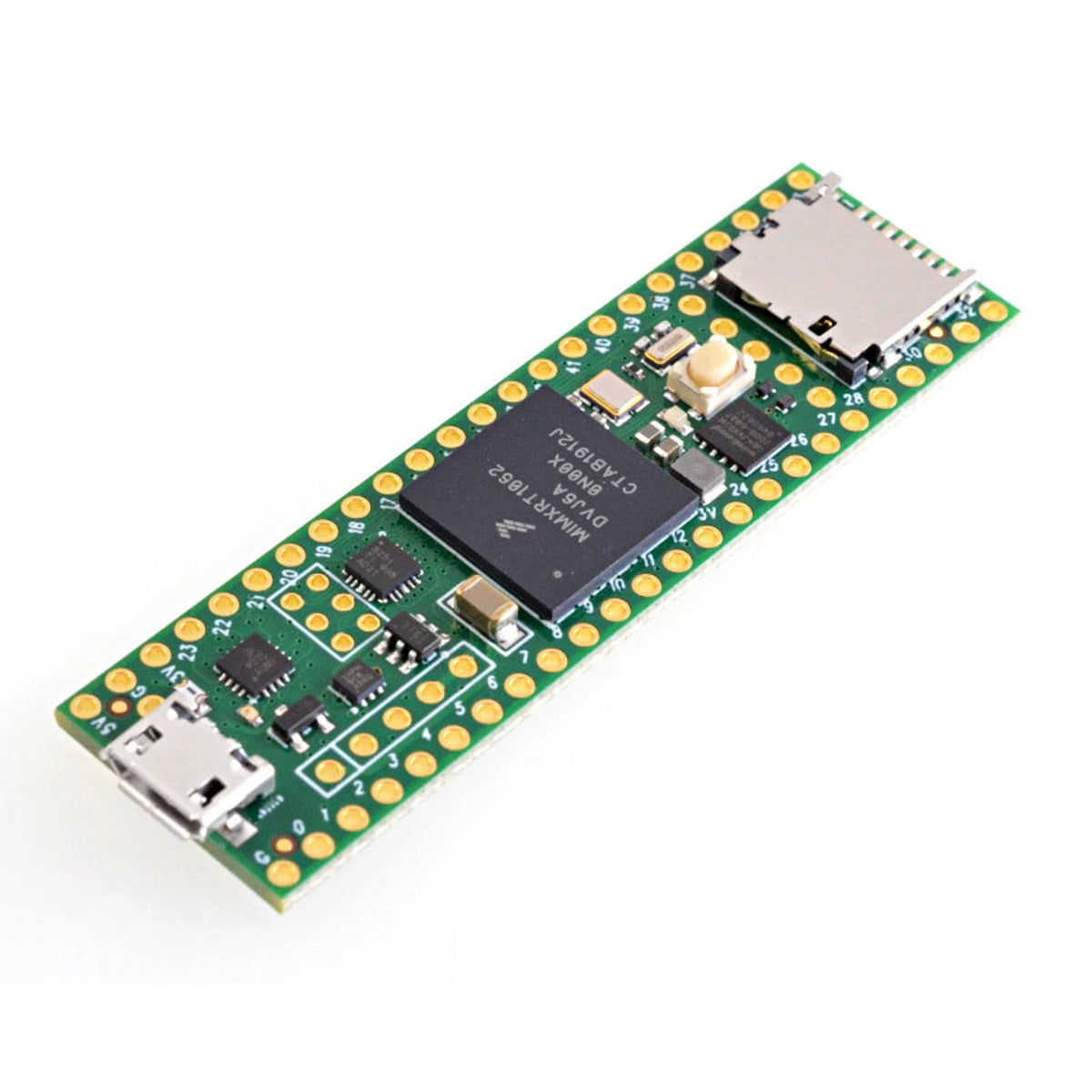

SparkFun Teensy 4.1 Development Board 600MHz ARM Cortex-M7 – DEV-16771

SparkFun Teensy 4.1 Development Board – 600MHz ARM Cortex-M7 (DEV-16771)

The SparkFun Teensy 4.1 Development Board (DEV-16771) is a compact, high-performance microcontroller development board designed for advanced embedded systems, robotics, industrial automation, digital audio processing, and real-time control applications. Powered by the NXP i.MX RT1062 ARM Cortex-M7 processor operating at 600MHz, Teensy 4.1 delivers powerful processing performance for demanding microcontroller projects.

Featuring 1MB RAM and 8MB onboard Flash memory, the Teensy 4.1 offers significantly expanded storage compared to Teensy 4.0. It also includes provisions for optional QSPI memory expansion, allowing developers to add compatible memory chips for applications requiring additional storage or memory resources.

The board provides 55 digital I/O pins, 35 PWM outputs, 18 analog inputs, eight serial ports, three SPI interfaces, and three I2C interfaces for connecting sensors, actuators, displays, motor drivers, and external communication modules.

With an integrated 10/100Mbps Ethernet PHY, microSD card socket, and USB 2.0 high-speed device and host interfaces, the Teensy 4.1 supports applications involving network communication, data logging, external USB peripherals, and high-speed data processing.

Its advanced peripherals include three CAN bus controllers, digital audio interfaces, programmable FlexIO, 32 DMA channels, hardware cryptographic acceleration, and a real-time clock.

The DEV-16771 variant is supplied without pre-soldered header pins, making it suitable for custom hardware integration and applications requiring a specific connector configuration.

Compatible with Arduino IDE and Teensy development tools, Teensy 4.1 is ideal for engineers, makers, researchers, and embedded developers building high-speed electronic systems.

Key Features

• 600MHz ARM Cortex-M7 Processor: Powered by the NXP i.MX RT1062 microcontroller for high-performance embedded applications.

• 1MB RAM and 8MB Flash: Provides memory resources for firmware, data processing, and complex embedded projects.

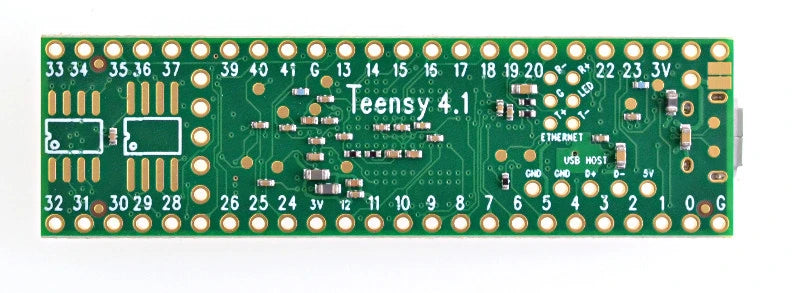

• Expandable QSPI Memory: Includes solder locations for adding compatible external PSRAM or Flash memory chips.

• 55 Digital I/O Pins: Offers extensive GPIO connectivity, including 42 breadboard-friendly I/O connections.

• 35 PWM Outputs: Supports precise control of LEDs, motors, servos, and other compatible devices.

• 18 Analog Inputs: Enables analog signal acquisition through the onboard ADC peripherals.

• Multiple Communication Interfaces: Includes eight serial ports, three SPI interfaces, and three I2C interfaces.

• Integrated Ethernet PHY: Features a 10/100Mbps DP83825 Ethernet PHY for wired networking using additional Ethernet connector hardware.

• microSD Card Socket: Supports removable memory cards for data logging and embedded storage applications.

• High-Speed USB Connectivity: Supports USB 2.0 device and host communication at up to 480Mbps.

• Three CAN Bus Controllers: Includes one CAN FD-capable controller for compatible automotive and industrial communication applications.

• Digital Audio Support: Features two I2S interfaces and one S/PDIF interface for audio processing projects.

• Advanced Real-Time Processing: Includes a floating-point unit, 32 DMA channels, and programmable FlexIO.

• Hardware Security Features: Supports cryptographic acceleration and hardware random number generation.

• Real-Time Clock: Provides date and timekeeping functionality with appropriate backup power.

• Compact Development Board: Measures approximately 61 × 18mm, suitable for embedded prototyping and custom electronic systems.

• Arduino-Compatible Programming: Supports Arduino IDE through Teensy development tools.

Technical Specifications

Applications

• High-Speed Embedded Systems: Develop microcontroller applications requiring fast computation, efficient data processing, and precise timing.

• Robotics and Automation: Control sensors, actuators, motors, and communication peripherals in advanced robotic systems.

• Industrial Control Prototyping: Develop monitoring and control systems using CAN, SPI, I2C, UART, and Ethernet interfaces.

• Digital Audio Processing: Create synthesizers, digital audio effects, MIDI controllers, and sound-processing applications.

• Ethernet-Connected Systems: Build wired network applications using an appropriate external Ethernet connector kit.

• Data Logging Systems: Capture, process, and store sensor measurements using the integrated microSD card socket.

• Motor Control: Develop PWM-based motor and servo control systems using compatible external drivers.

• Signal Processing: Create digital filtering, waveform generation, and real-time computational applications.

• USB Device and Host Projects: Build custom USB peripherals and connect compatible USB devices using suitable hardware.

• Embedded Sensor Networks: Interface multiple sensors, controllers, and communication modules.

• Educational and Research Projects: Explore ARM microcontroller programming, real-time embedded systems, and hardware communication interfaces.

Package Contents

• 1 × SparkFun Teensy 4.1 Development Board (DEV-16771)

Note: The DEV-16771 version does not include pre-soldered header pins. USB cable, Ethernet connector kit, memory expansion chips, microSD card, and external accessories are sold separately unless otherwise specified.

Additional Information

The Teensy 4.1 uses 3.3V logic and its digital I/O pins are not 5V tolerant. Appropriate voltage-level shifting is required when interfacing with 5V logic devices.

Although the board includes an Ethernet PHY, it does not provide a ready-to-use onboard RJ45 Ethernet connector. An appropriate Ethernet connector kit must be installed for wired Ethernet connectivity.

The USB host interface also requires compatible connector hardware for attaching external USB devices.

Technical Documentation

For hardware specifications, programming instructions, pinout diagrams, and technical resources, refer to the PJRC Teensy 4.1 Official Documentation.
