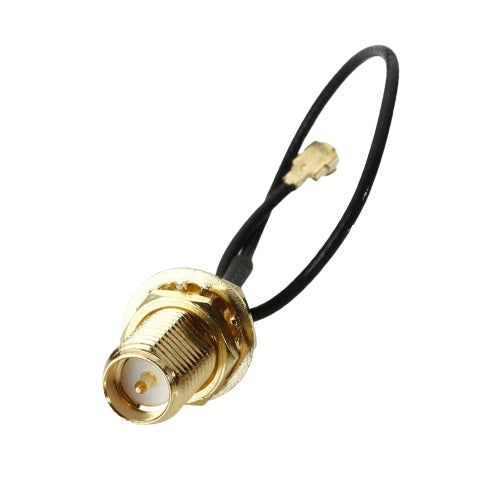

SMA Female to UFL Interface Cable

SKU: VM00853

Send Inquiry


Female SMA connector to UFL connector allow to add high gain external antennas to many wireless router. Connector wire length is 15 cm without connectors. SMA connector is a precision coaxial connector for microwave applications. Standard and Reverse Polarity SMA connector have high quality and characterized by high durability, high mechanical stability, long service life and optimum electrical features.

Technical Specification:

  • SMA Connector type: Female
  • VSWR: ≤1.15+0.02F
  • Characteristic impedance: 50Ω
  • Insulation resistance: ≥5000MΩ
  • Contact resistance (outer conductor):≤2mΩ
  • Dielectric withstanding voltage: 1000Vrms
  • Color: Black
  • Wire length: 15 cm


  • Pre-assembled with different RF connectors for choice
  • Gold-plated contacts for best signal transmission


  • Mobile Phone
  • Network Storage Equipment
  • Medical
  • Remote Control
