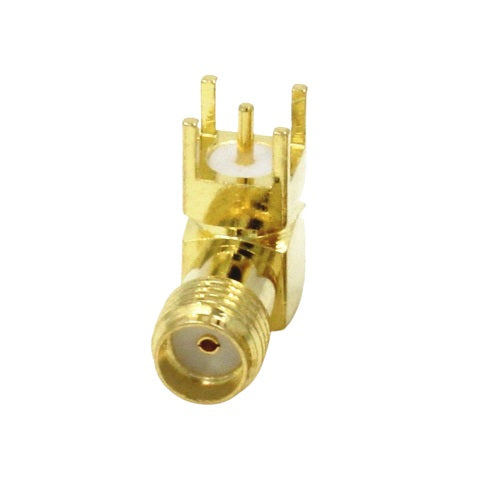

SMA Female Connector Right Angled Through-Hole for PCB Mount

SKU: VM00847

Send Inquiry


This is SMA Connector of female type with Right Angle Mounting of Antenna. It is also know as RP SMA Connector. It is an industry standard for connection of antenna to any device. This is a PCB Mount Connector with the antenna mount facing the right angle side. This connector enables the antenna insertion from an enclosure, by putting the entry of antenna a little away from the PCB.

Technical Specification:

  • Brand: ElecBee
  • Orientation: Right Angle
  • Gender: Female
  • Mounting Type: PCB Mount
  • Termination Style: Solder Type
  • Mounting Feature: Through Hole
  • Function: Other
  • Polarity: Standard
  • Body Material: Copper
  • Body Plating: Gold Plating
  • Impedance: 50 Ω
  • Shield Termination: NA


  • End launcher SMA Jack
  • Subminiature RF Coaxial Socket
  • Gold plated body and contact
  • Teflon insulator


  • Vehicle Tracking System
  • Cellular Mobile System
  • Commercial Vehicle
  • Aerospace and Defense
  • Medical
  • Wi-Fi antenna systems
