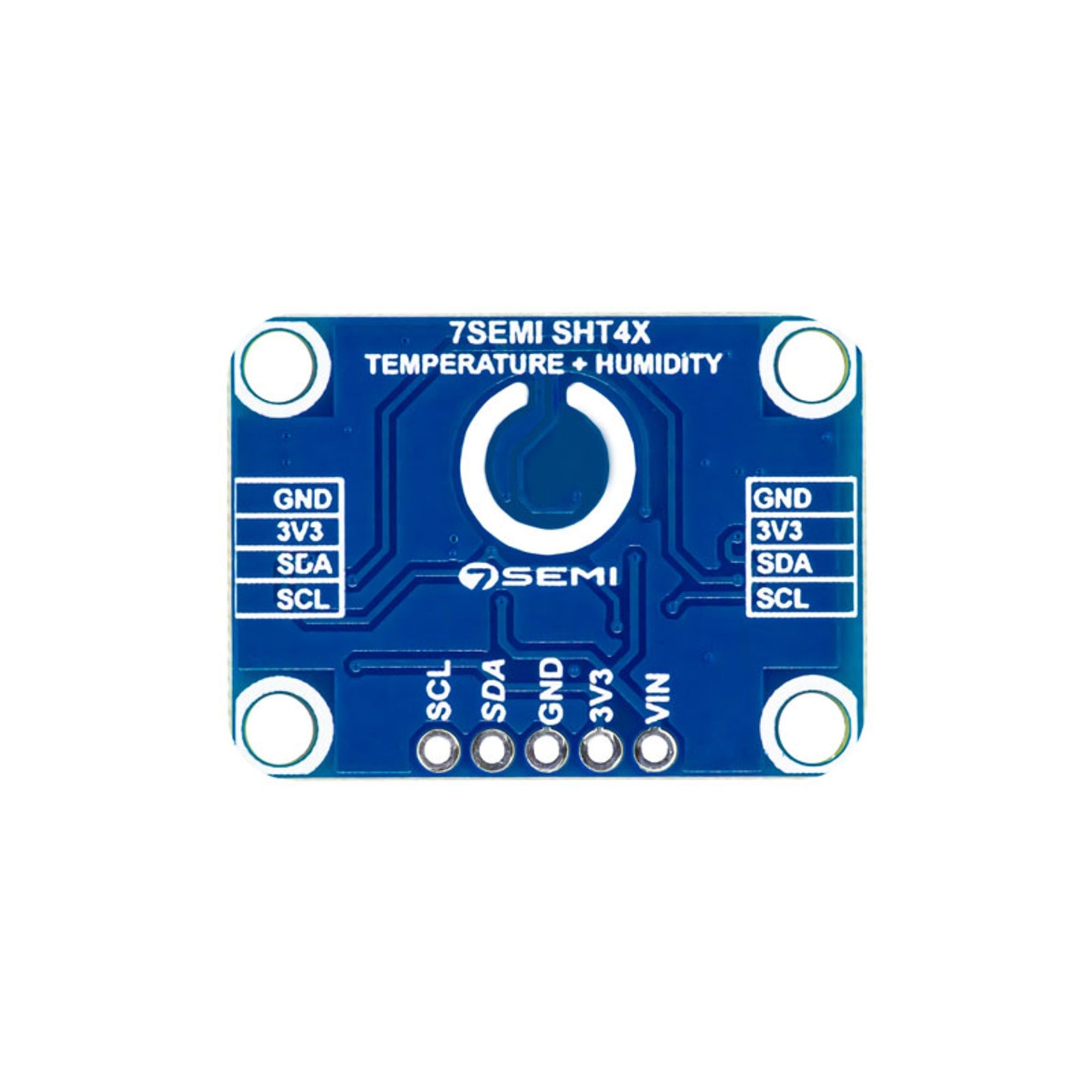

SHT40 Temperature & Humidity Sensor Breakout I2C Qwiic

The 7Semi SHT40 Temperature & Humidity Sensor Breakout I²C Qwiic is a compact, digital environmental sensor module designed to measure ambient temperature and relative humidity accurately. It uses the SHT40 sensor IC and provides calibrated, linearized digital outputs over the I²C bus. With a Qwiic-compatible connector for plug-and-play ease, this breakout is ideal for smart-home, IoT, HVAC, environmental monitoring, weather stations, greenhouse control, and other applications requiring reliable temperature and humidity sensing.

Technical Specifications:

• Sensor IC: SHT40

• Measurement Parameters: Ambient Temperature and Relative Humidity

• Interface: I²C, via Qwiic connector (plug-and-play)

• Supply Voltage: Typically 3.3V (logic-level compatible)

• Temperature Range: –40 °C to +125 °C

• Temperature Accuracy: ±0.1 °C (typical)

• Humidity Range: 0% to 100% RH (non-condensing)

• Humidity Accuracy: ±1.8% RH (typical, at 25 °C and 10–90% RH)

• Output Resolution: 16-bit for both temperature and humidity

• Data Output: Fully calibrated and linearized digital values

Features:

• High-precision temperature and humidity measurements (±0.1 °C, ±1.8% RH)

• Fully digital output via I²C - no analog signal conditioning required

• Qwiic connector for easy, solder-free connection and rapid prototyping

• Broad operating range for temperature and humidity - suitable for indoor and outdoor use

• Low power requirement - suitable for battery-powered or always-on environmental sensors

• Compact breakout board design - easy to integrate into embedded systems, IoT devices, and sensor nodes

• Suitable for use with Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller platforms

Applications:

• Indoor/outdoor environmental monitoring - homes, offices, greenhouses, classrooms

• IoT sensor nodes for climate monitoring and data logging

• HVAC systems and building climate control systems

• Weather stations and environmental data collection

• Smart-home devices - thermostats, air-quality control, automated fans or ventilation

• Agricultural monitoring - greenhouses, plant-growth environment control

• Portable or wearable environmental sensors

• Research and lab instrumentation where accurate humidity/temperature sensing is required

• Embedded systems needing reliable, calibrated environmental data
