Description

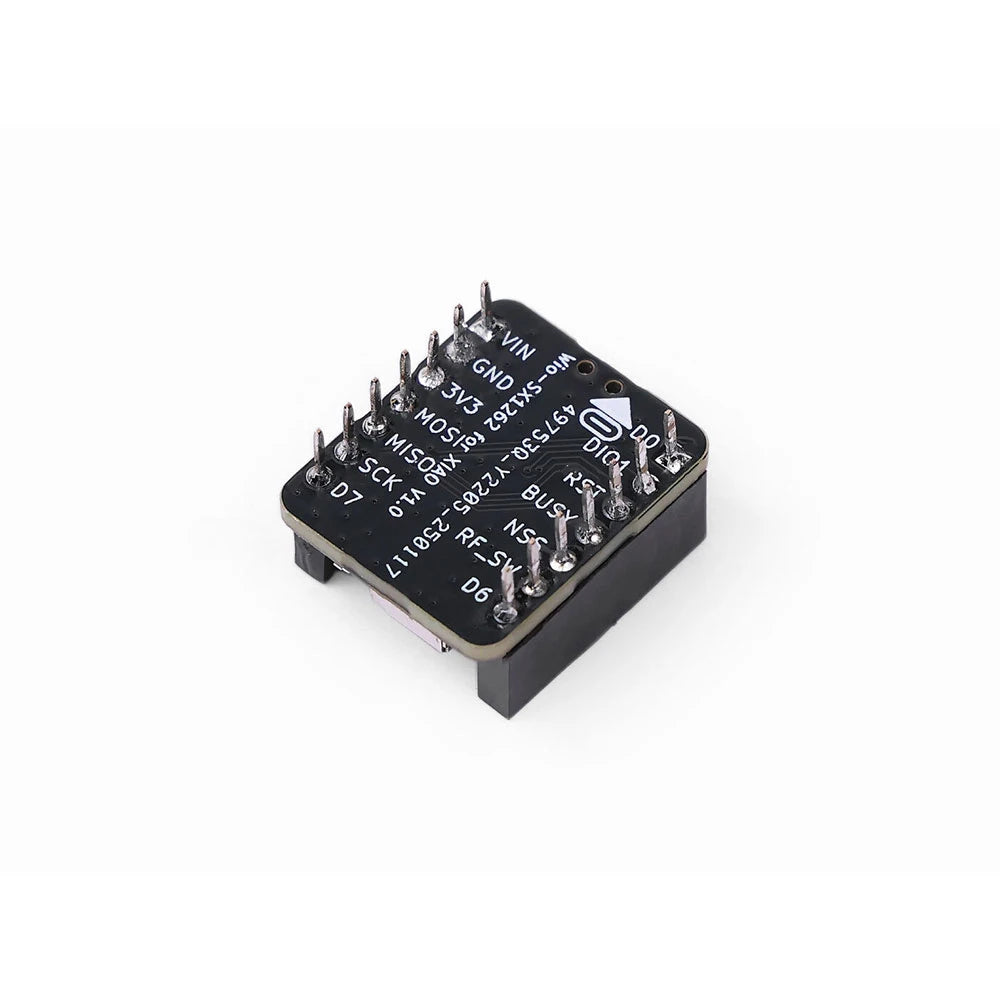

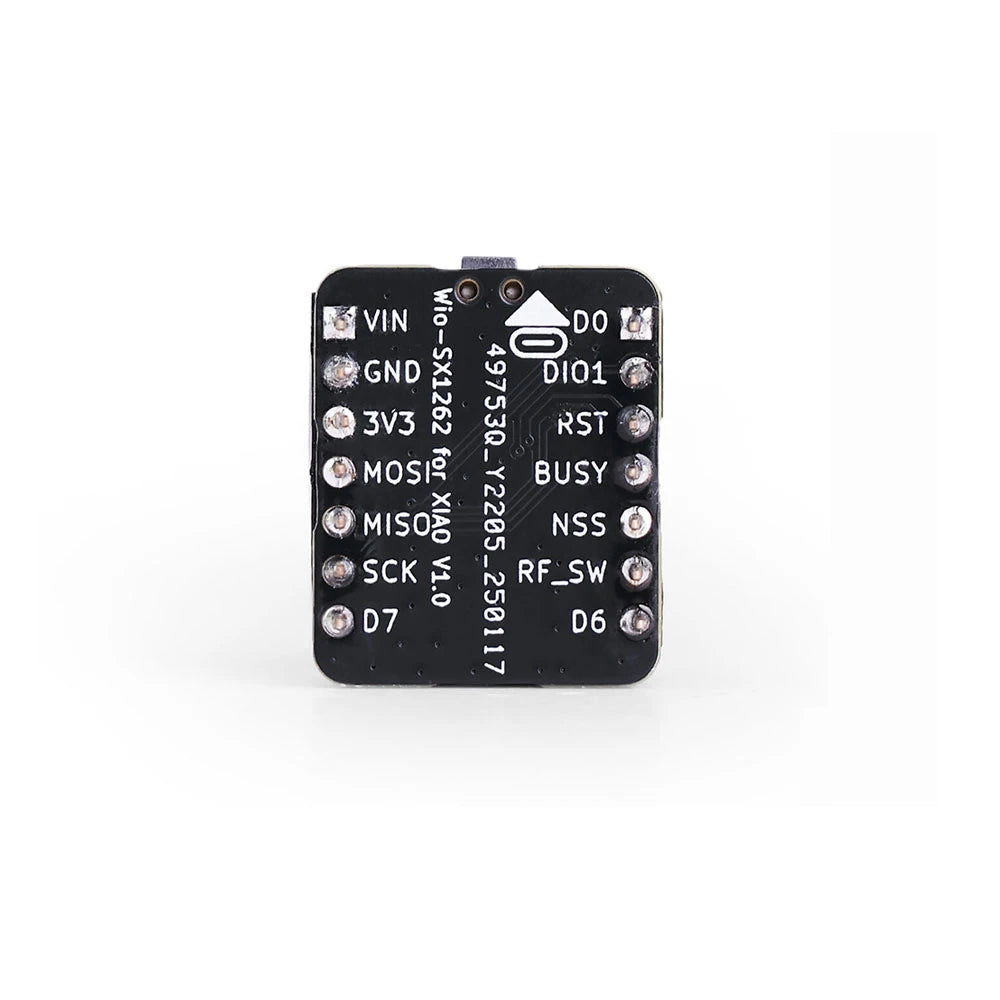

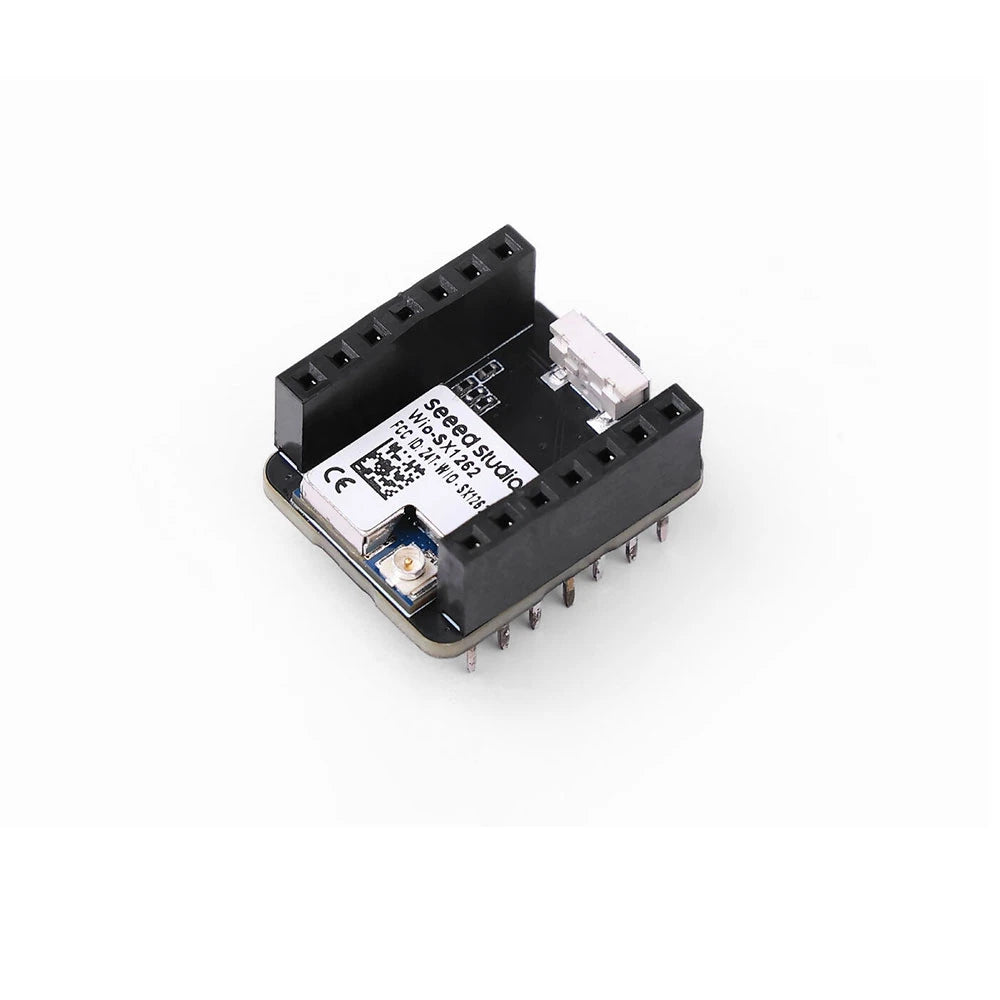

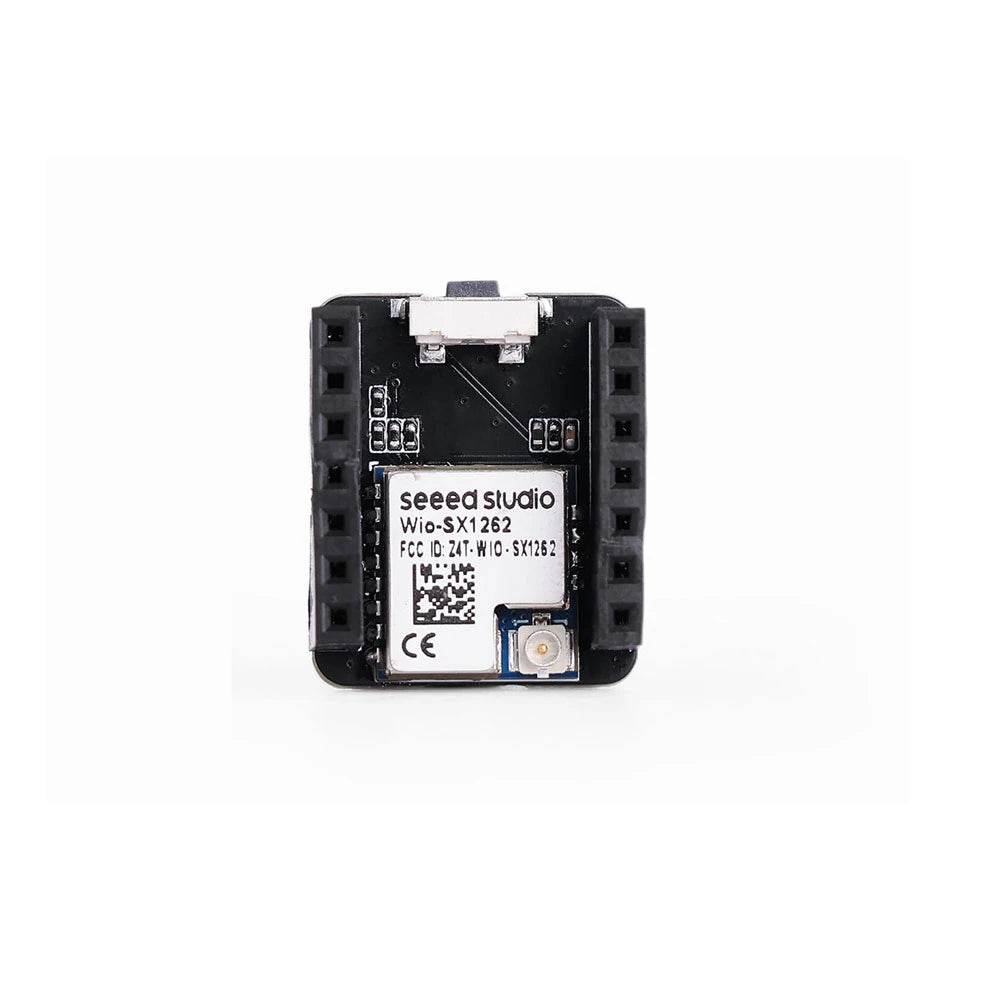

The Seeed Studio Wio-SX1262 LoRa Module for XIAO (113010003) is a compact, ultra-low-power wireless communication expansion module designed for the Seeed Studio XIAO development board ecosystem. Powered by the Semtech SX1262 LoRa transceiver, it enables long-range, energy-efficient wireless data transmission for Internet of Things (IoT), wireless sensor networks, remote monitoring, and embedded communication applications.
Operating across the 862–930MHz frequency range, the module supports LoRa communication with a maximum RF output power of +22dBm, making it suitable for low-power, long-distance wireless connectivity.
Featuring an SPI communication interface and XIAO-compatible pin headers, the Wio-SX1262 offers convenient integration with supported XIAO development boards. Its compact, stackable form factor helps simplify hardware development for portable and space-constrained IoT devices.
With a low sleep current of approximately 1.62µA, the module is particularly useful for battery-powered applications requiring energy-efficient wireless communication. It is ideal for smart agriculture, environmental monitoring, asset tracking, remote sensor nodes, and LoRa-based networking projects.
Key Features
-
Semtech SX1262 LoRa Transceiver: Provides reliable sub-GHz wireless communication for embedded IoT applications.
-
862–930MHz Frequency Range: Supports configurable LoRa communication across supported regional frequency bands.
-
Up to +22dBm RF Output Power: Enables long-range wireless transmission with a suitable antenna.
-
Ultra-Low Sleep Current: Consumes approximately 1.62µA in sleep mode for energy-efficient applications.
-
XIAO-Compatible Expansion Module: Designed for convenient integration with supported Seeed Studio XIAO development boards.
-
SPI Communication Interface: Allows communication between the LoRa transceiver and the host microcontroller.
-
LoRa and LoRaWAN Development: Suitable for developing long-range IoT sensor nodes and compatible LoRaWAN applications.
-
Compact Stackable Design: Integrates with XIAO boards without requiring extensive external wiring.
-
Onboard User Button: Provides an additional input for supported development applications.
-
Low-Power Wireless Connectivity: Suitable for battery-powered remote monitoring and distributed sensing systems.
-
Developer-Friendly Resources: Supported by Seeed Studio documentation, schematics, and example projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Seeed Studio |
| Product Name | Wio-SX1262 LoRa Module for XIAO |
| Manufacturer Part Number | 113010003 |
| Product Type | LoRa Wireless Expansion Module |
| RF Transceiver | Semtech SX1262 |
| Frequency Range | 862–930MHz |
| Wireless Technology | LoRa |
| Maximum RF Output Power | +22dBm |
| Sleep Current | Approximately 1.62µA |
| Communication Interface | SPI |
| Board Connection | XIAO-Compatible Pin Headers |
| User Interface | 1 × User Button |
| Host Platform | Compatible Seeed Studio XIAO Boards |
| Form Factor | Compact, Stackable Expansion Module |
| Combined Stack Height | Approximately 21mm with XIAO Board |
Applications
-
Long-Range IoT Communication: Enable wireless data exchange between IoT devices over extended distances.
-
Wireless Sensor Networks: Connect distributed sensors for environmental and equipment monitoring.
-
Smart Agriculture: Transmit soil, temperature, humidity, and other sensor measurements from remote locations.
-
Asset Tracking: Develop LoRa-based tracking and monitoring systems with suitable positioning hardware.
-
Environmental Monitoring: Collect and transmit data from remote weather and environmental sensors.
-
Smart Metering: Build wireless utility and energy monitoring applications.
-
Remote Monitoring Systems: Communicate with sensors and control devices in locations with limited network infrastructure.
-
LoRaWAN Development: Create compatible low-power wireless nodes using supported firmware and network infrastructure.
-
Educational and Research Projects: Explore LoRa wireless communication, IoT networking, and embedded system development.
Package Contents
-
1 × Seeed Studio Wio-SX1262 LoRa Module for XIAO
Technical Documentation
For installation instructions, wiring diagrams, software examples, and technical guidance, refer to the Seeed Studio Wio-SX1262 Official Wiki.
Additional Information
The Wio-SX1262 is a LoRa expansion module, not a standalone microcontroller board. It requires a compatible XIAO development board for operation.
LoRa transmission must be configured to comply with applicable regional frequency and RF power regulations.
