Rotary Encoder Pot With Threading

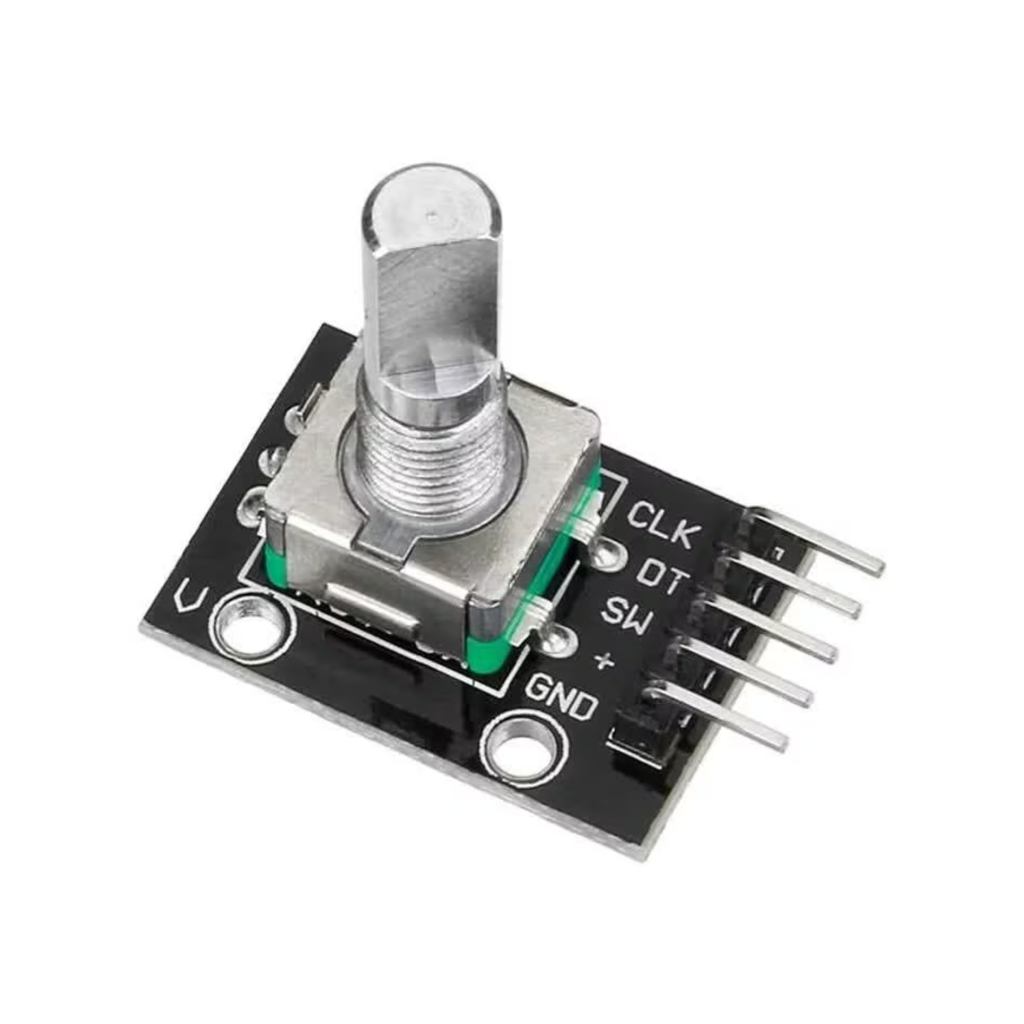

The Rotary Encoder Pot with Threading is a compact rotary input module that combines a mechanical rotary encoder with a threaded shaft for secure panel mounting. It generates digital pulse signals when the knob is rotated, allowing precise detection of rotation direction and steps. Unlike traditional potentiometers, it does not measure absolute position but instead provides incremental rotation data, making it ideal for menu navigation, parameter adjustment, and user interface control in embedded systems.

Technical Specifications:

• Encoder Type: Incremental rotary encoder
• Output Signals: CLK (A), DT (B), SW (Push button)
• Operating Voltage: 3.3 V – 5 V DC
• Interface: Digital output
• Detents: Typically 20 steps per revolution
• Shaft Type: Threaded metal shaft
• Mounting: Panel mount with nut and washer
• Switch Function: Integrated push-button
• Pin Configuration: CLK, DT, SW, VCC, GND
• Board Type: Encoder mounted on breakout PCB

Features:

• Incremental rotary encoder for precise control
• Threaded shaft for firm panel installation
• Integrated push-button switch
• Long mechanical life and durability
• Compatible with Arduino, ESP32, ESP8266, Raspberry Pi
• Compact PCB with clearly labeled pins
• Ideal replacement for potentiometers in digital systems

Applications:

• Menu navigation and user input devices
• Volume, brightness, and parameter control
• CNC controllers and control panels
• Audio equipment and DIY controllers
• Robotics and embedded systems
• Human-machine interface (HMI) projects
• Educational and prototyping projects
