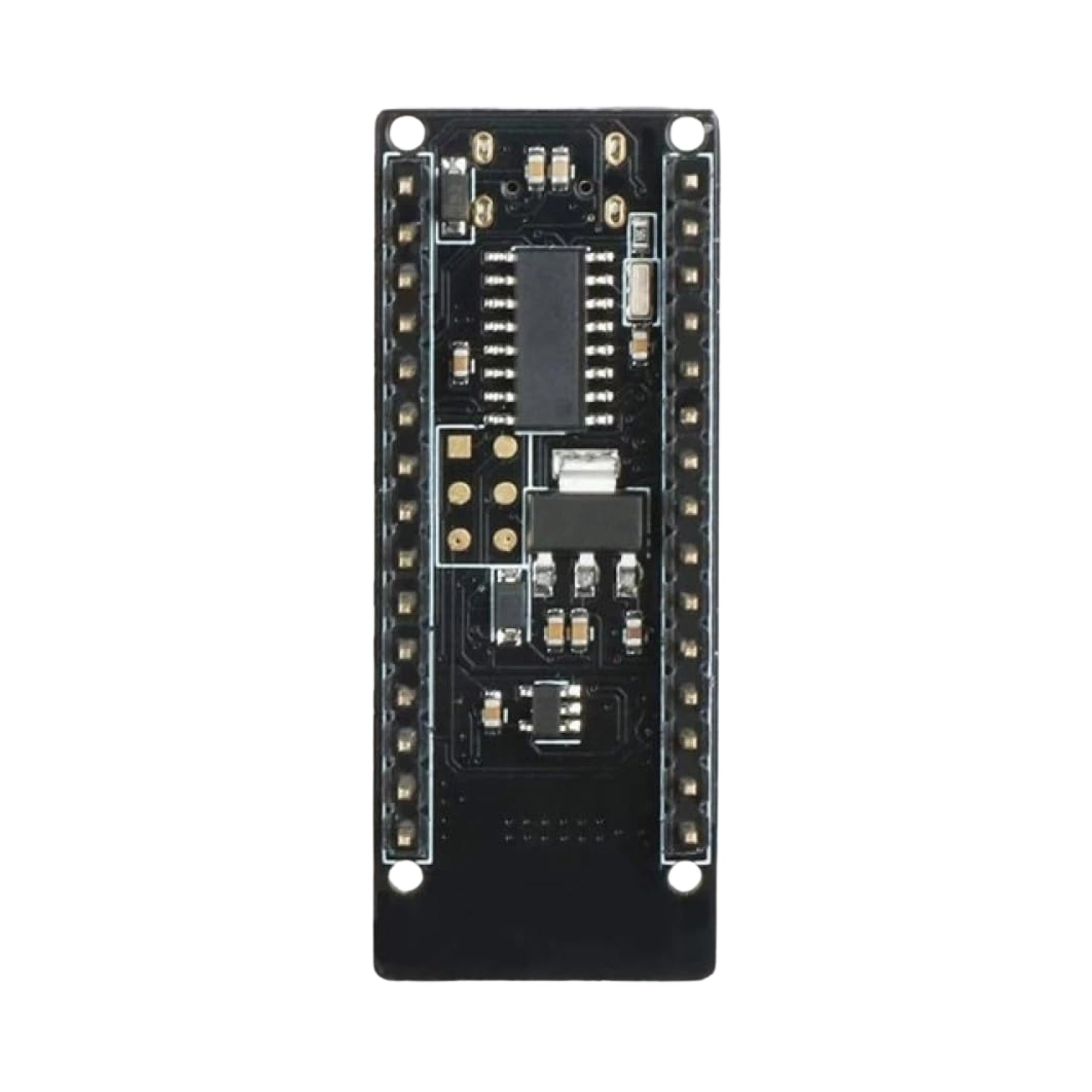

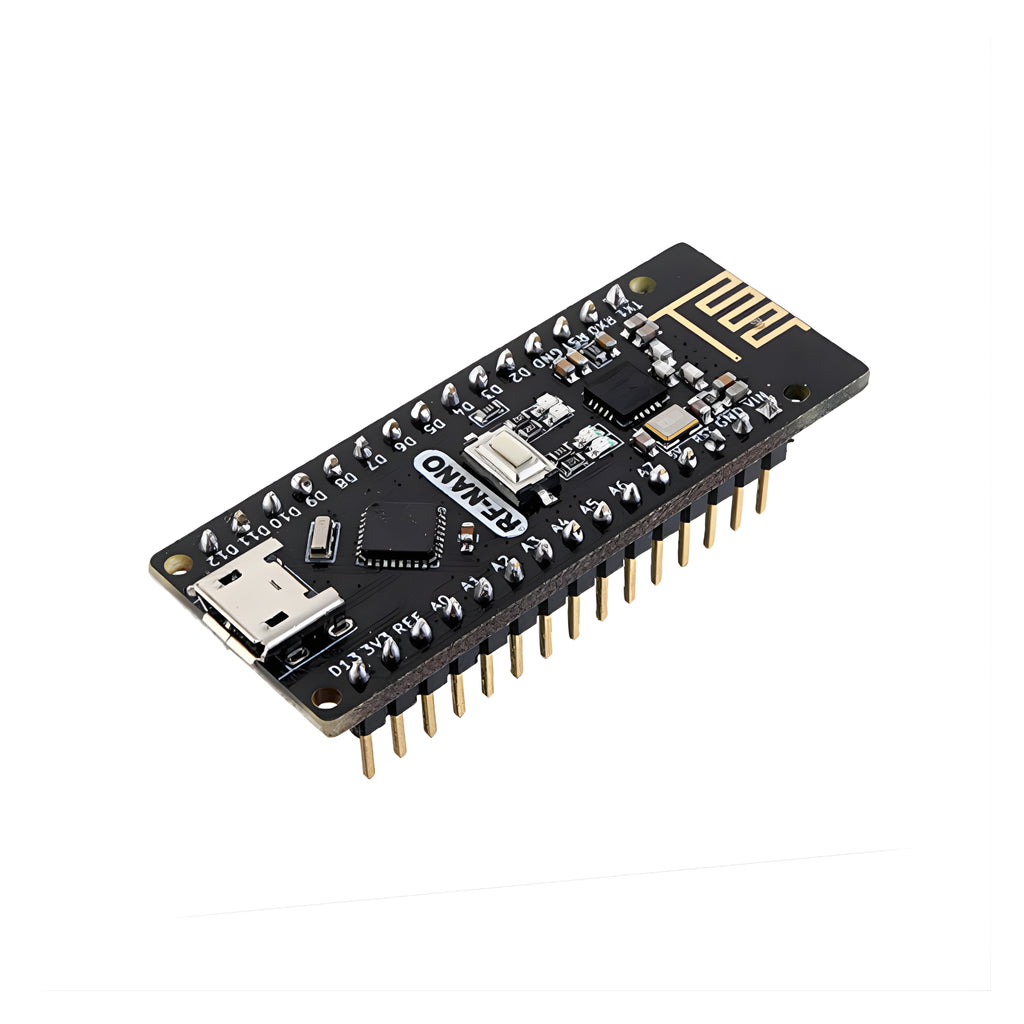

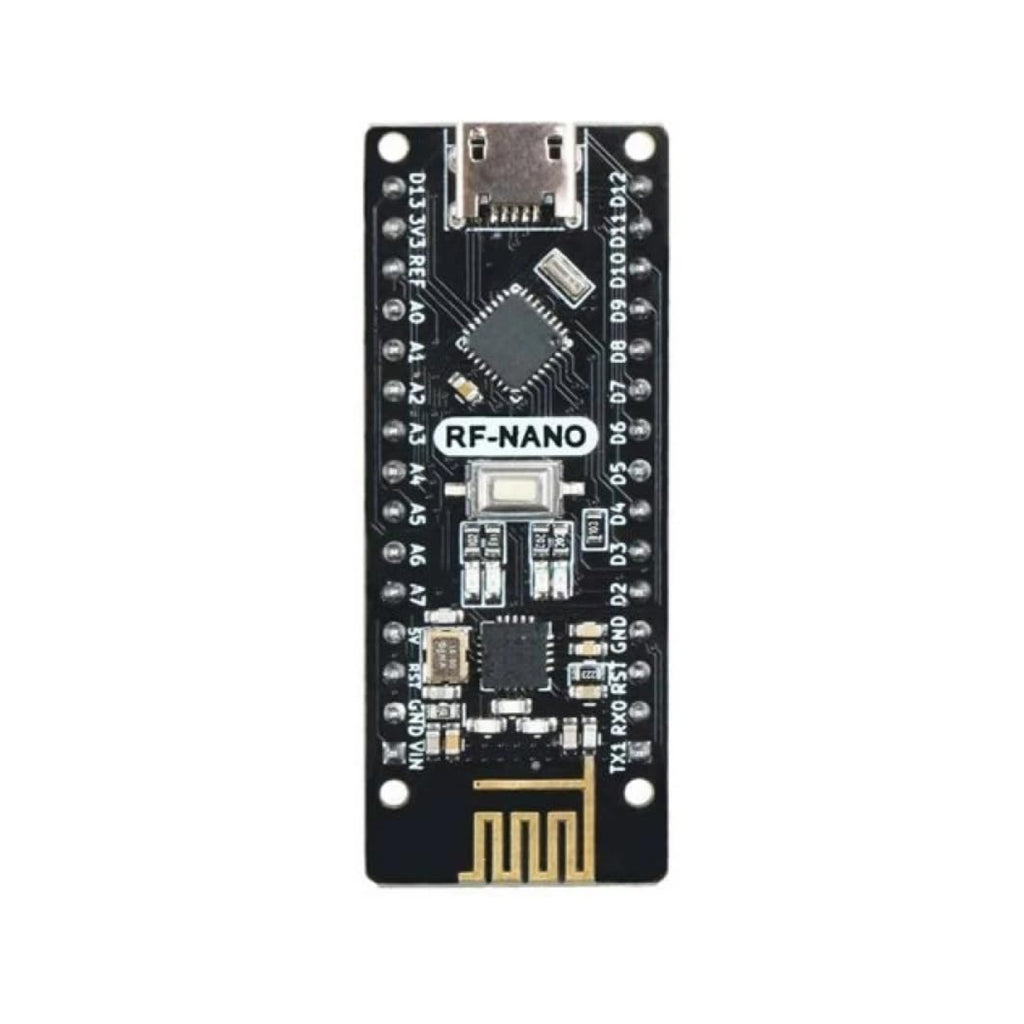

RF Nano Integrated NRF24L01 Wireless Module with Soldering

The RF Nano is a compact Arduino-Nano–compatible development board with an integrated NRF24L01+ 2.4 GHz wireless transceiver. It combines the ATmega328P microcontroller and wireless communication module on a single PCB, eliminating the need for external RF modules and complex wiring. Designed for low-power wireless projects, the RF Nano is ideal for IoT, sensor networks, and remote control applications.

Technical Specifications:

• Microcontroller: ATmega328P
• Operating Voltage: 5 V (logic), 3.3 V RF section
• Clock Speed: 16 MHz
• Wireless Chip: NRF24L01+
• Wireless Frequency: 2.4 GHz ISM band
• Communication Interface: SPI (internal to RF module)
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• I/O Pins: Same pinout as Arduino Nano
• Programming Interface: Micro-USB
• Operating Range: Up to ~100 m (line of sight, typical)

Features:

• Integrated NRF24L01+ wireless module
• Arduino Nano–compatible form factor and pinout
• Reduced wiring and compact design
• Low power consumption suitable for battery-powered devices
• Stable RF performance with onboard antenna
• Easy programming via Arduino IDE

Applications:

• Wireless sensor networks
• IoT and smart home projects
• Remote monitoring and control systems
• Wireless robotics communication
• DIY Arduino wireless projects
