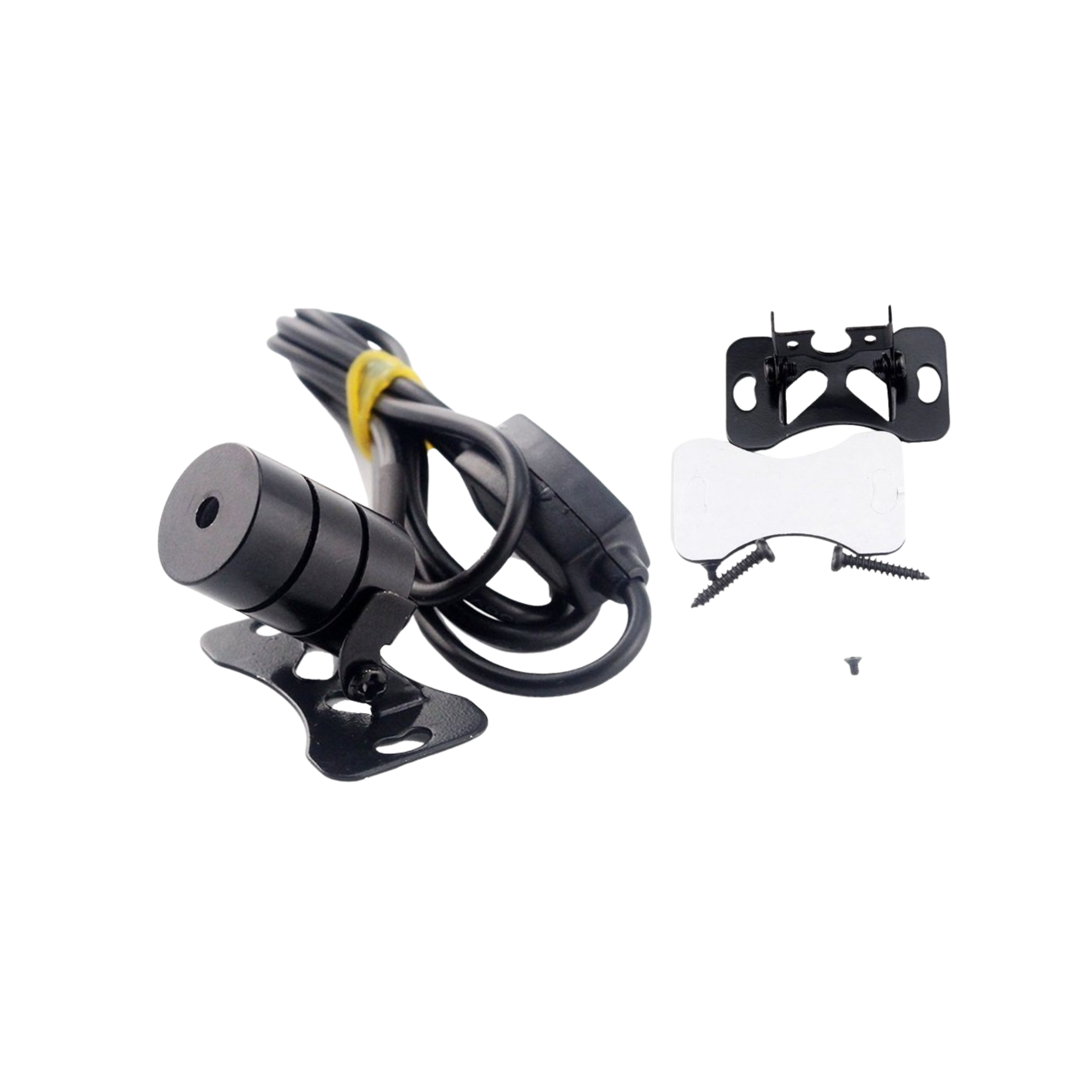

Red Laser Dot 650nm 10mW Module

The Red Laser Dot Module is a compact laser diode device that emits a visible red beam at a wavelength of around 650nm. It is commonly used in electronics, alignment systems, and sensing applications. The module integrates a laser diode, focusing lens, and driver circuit, making it easy to use with a simple DC power supply. Its small size and low power consumption make it ideal for embedded and DIY projects.

Technical Specifications:

• Wavelength: 650 nm (visible red light)

• Output Power: ~10 mW

• Operating Voltage: 3V – 5V DC

• Operating Current: ≤ 35–40 mA

• Laser Type: Semiconductor laser diode

• Beam Type: Dot (focused beam)

• Operating Temperature: approx. -30°C to 60°C

• Size: Compact cylindrical module (~6–12 mm diameter)

Features:

• Produces a bright and clearly visible red laser dot

• Low power consumption and efficient operation

• Simple interface (just power supply required)

• Compact and lightweight design

• Built-in driver for stable operation

• Long operational life and reliable performance

• Easy integration with microcontrollers and electronic circuits

• Suitable for continuous operation with proper heat management

Applications:

• Laser alignment and positioning systems

• Object detection and counting systems

• DIY electronics and Arduino projects

• Barcode scanners and optical instruments

• Laser pointers and targeting devices

• Industrial marking and measurement tools

• Security systems and tripwire detection
