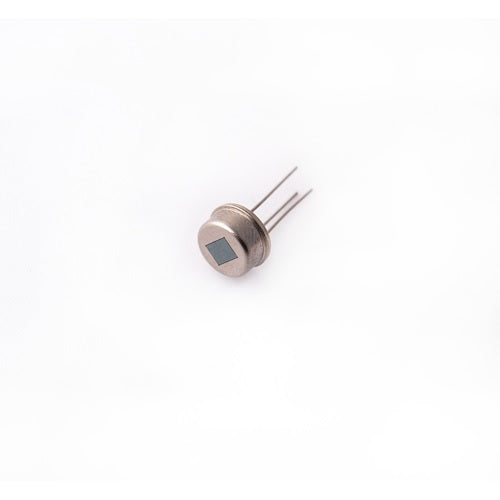

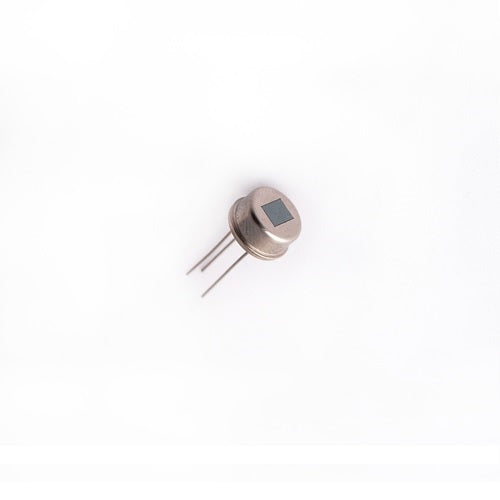

RE200B 3Pin PIR Pyroelectric Passive IR Infrared Sensor

SKU: VS00070

Send Inquiry

Description

The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation.

Technical Specification:

  • IR Receiving Electrode: 2*1mm, 2elements
  • Window Size: 3mm*4mm
  • Spectral Response: 5-14um
  • Transmittance: > 75%
  • Output Signal: > 3300mV
  • Detectivity: 1.4*108 cmHz1/2/W
  • Noise[Vp-p]: 70mV
  • Output Balance: 10%
  • Offset Voltage: 0.3-1.2V
  • Supply Voltage: 3-15V

Features:

  • High sensitivity
  • Long detecting distance
  • Wide angle
  • Strong stability
  • Wide application fields

Applications:

  • Security systems
  • Burglar alarms
  • Visitor acknowledgement
  • Light switch control
  • Intellectualized toy
