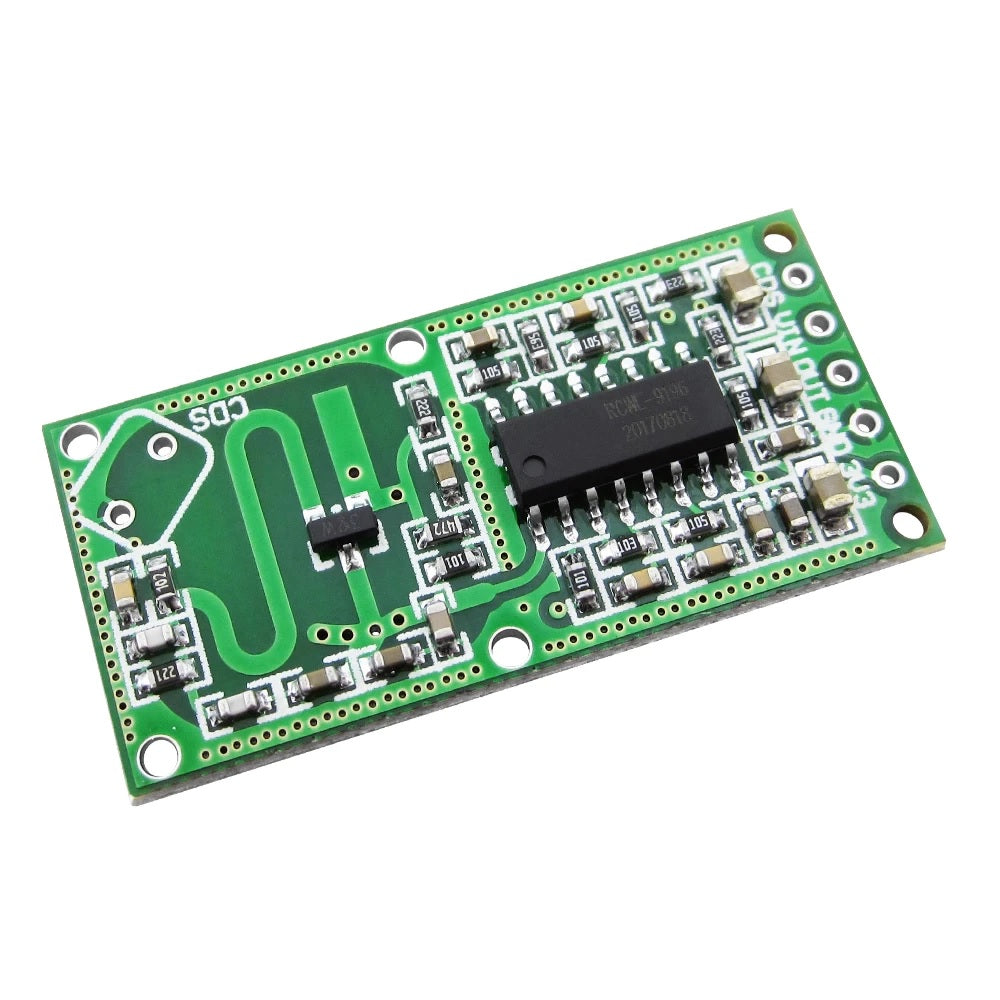

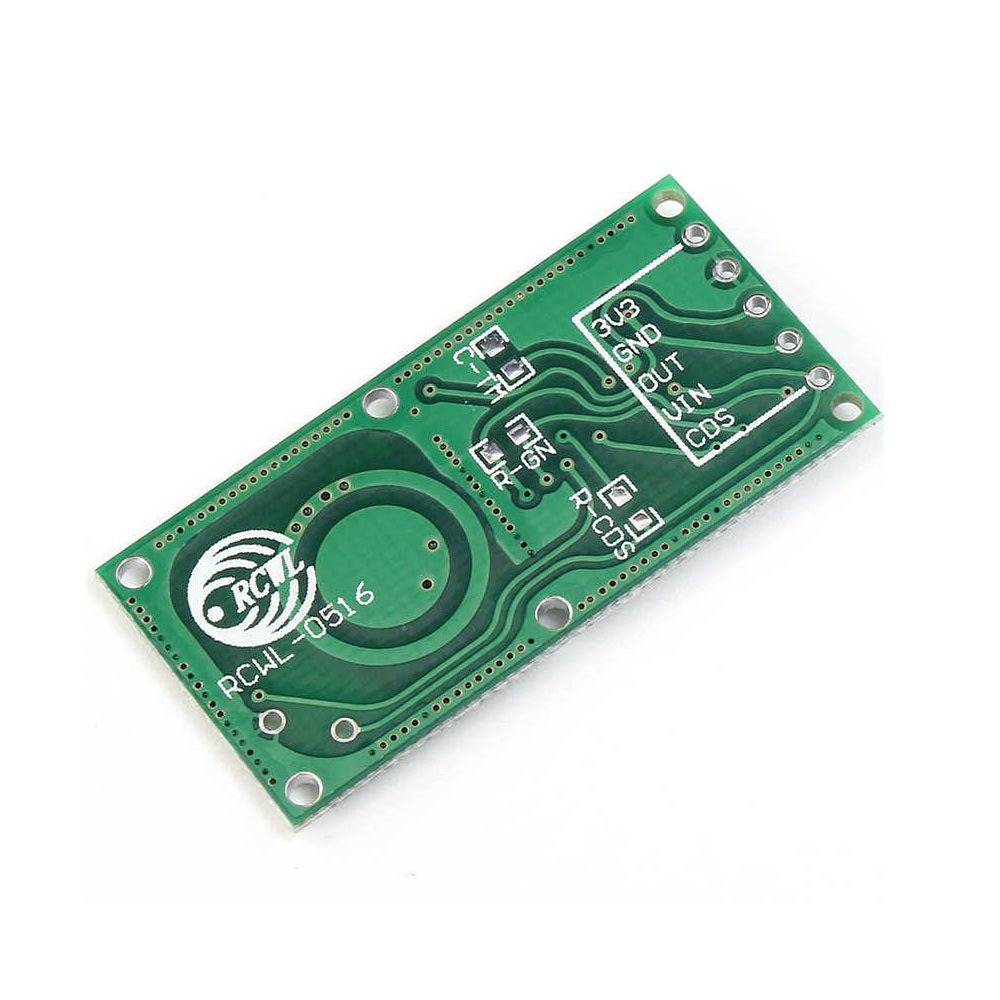

RCWL-0516 Microwave Radar Sensor Module

SKU: VM597

Price:
Sale priceRs. 60

Description

The RCWL0516 Microwave distance sensor uses microwave frequencies in a simple implementation of a Doppler radar. The circuitry inside the chip processes the signal and outputs an analog voltage that is proportional to the distance between the object and sensor.

Technical Specification:

  • Input Voltage – 4V to 28V
  • Operating current – 3mA (max.)
  • Operating frequency – 3.2GHz
  • Transmission power – 30mW (max.)
  • Regulated output voltage – 3.3V, max. 100mA
  • Sensing distance – 5 to 7 meters
  • Size: 36mm*17mm(L*W)

Features:

  • Transmission signal processing control chip RCWL-9196
  • Compared with the traditional infrared feeling PIR, with the penetrating detection capability
  • Block time, distance adjustable
  • Output 3.3V power supply

Applications:

  • Distance sensing
  • Radar applications
