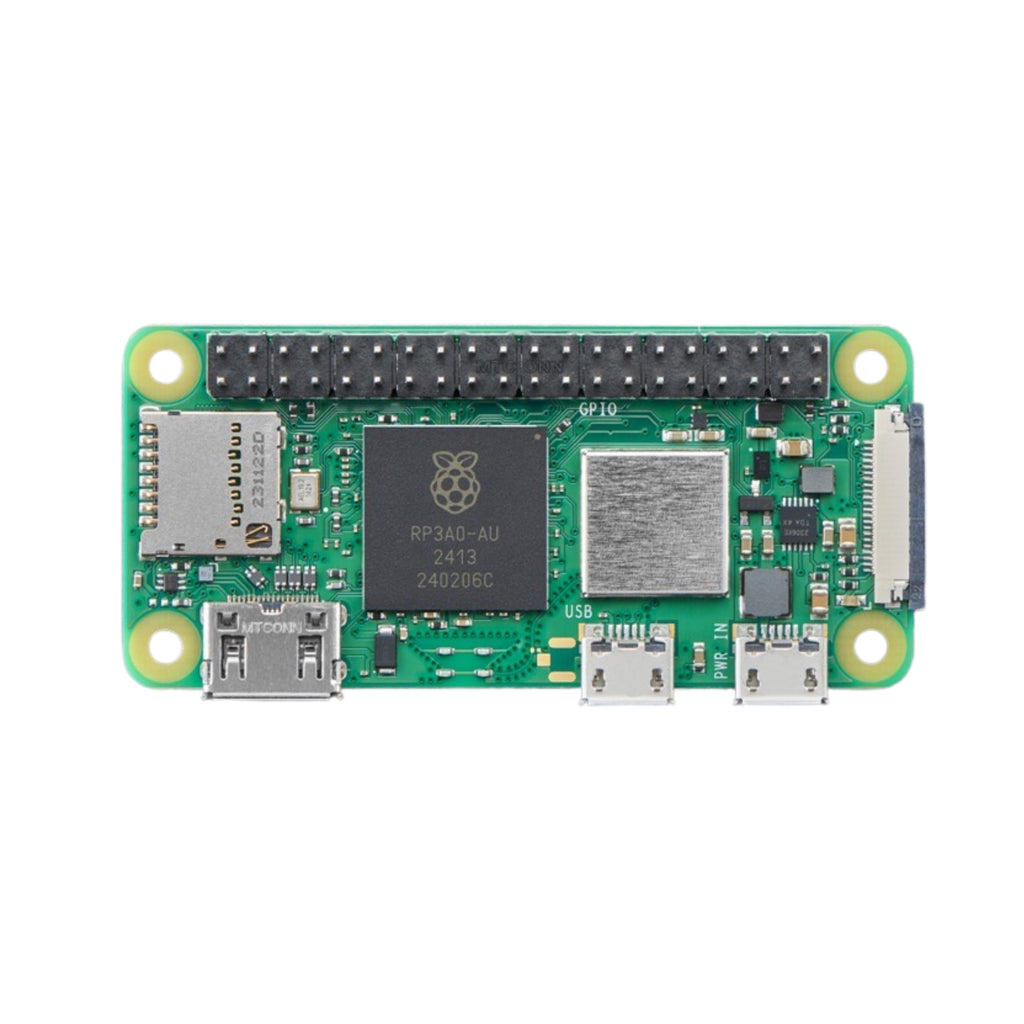

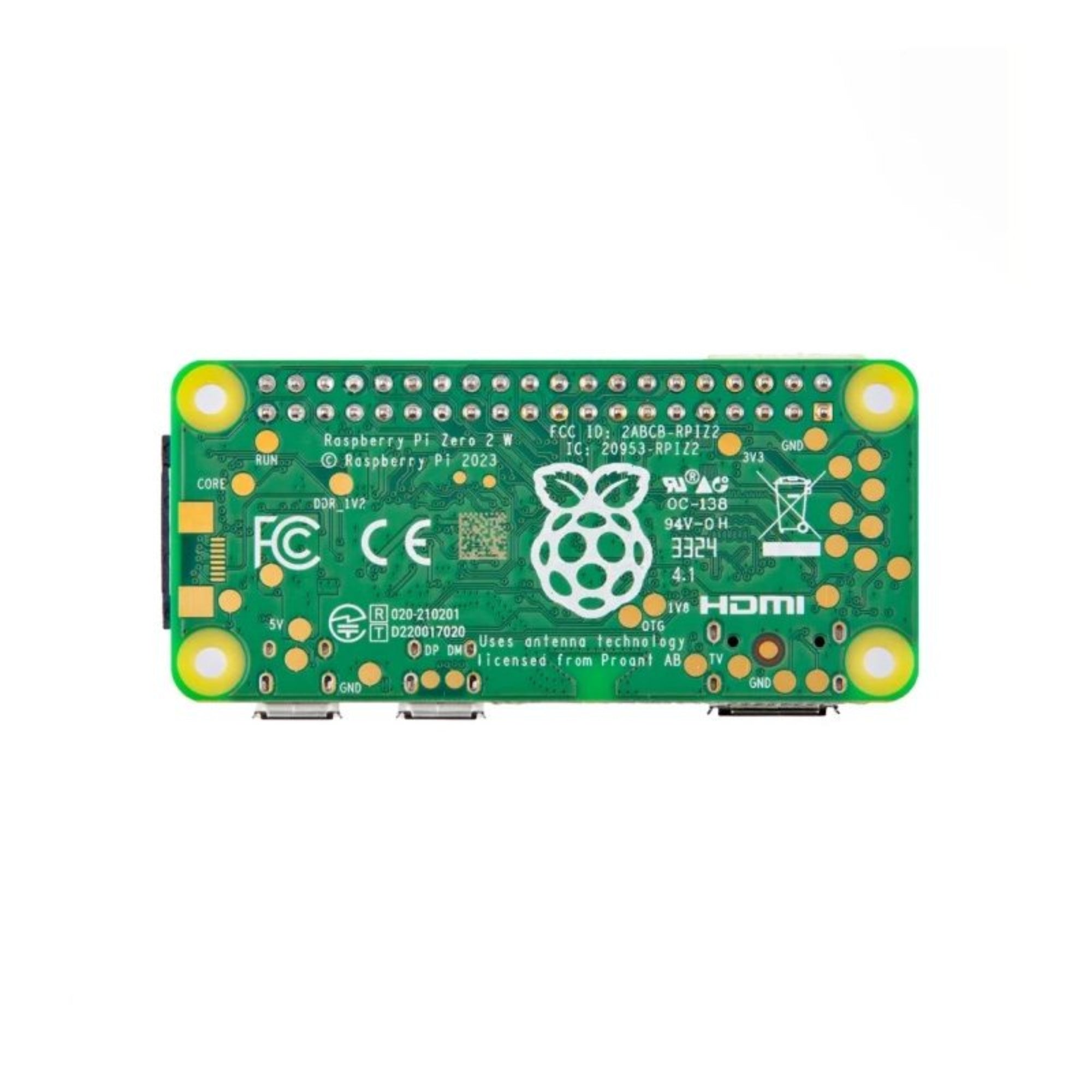

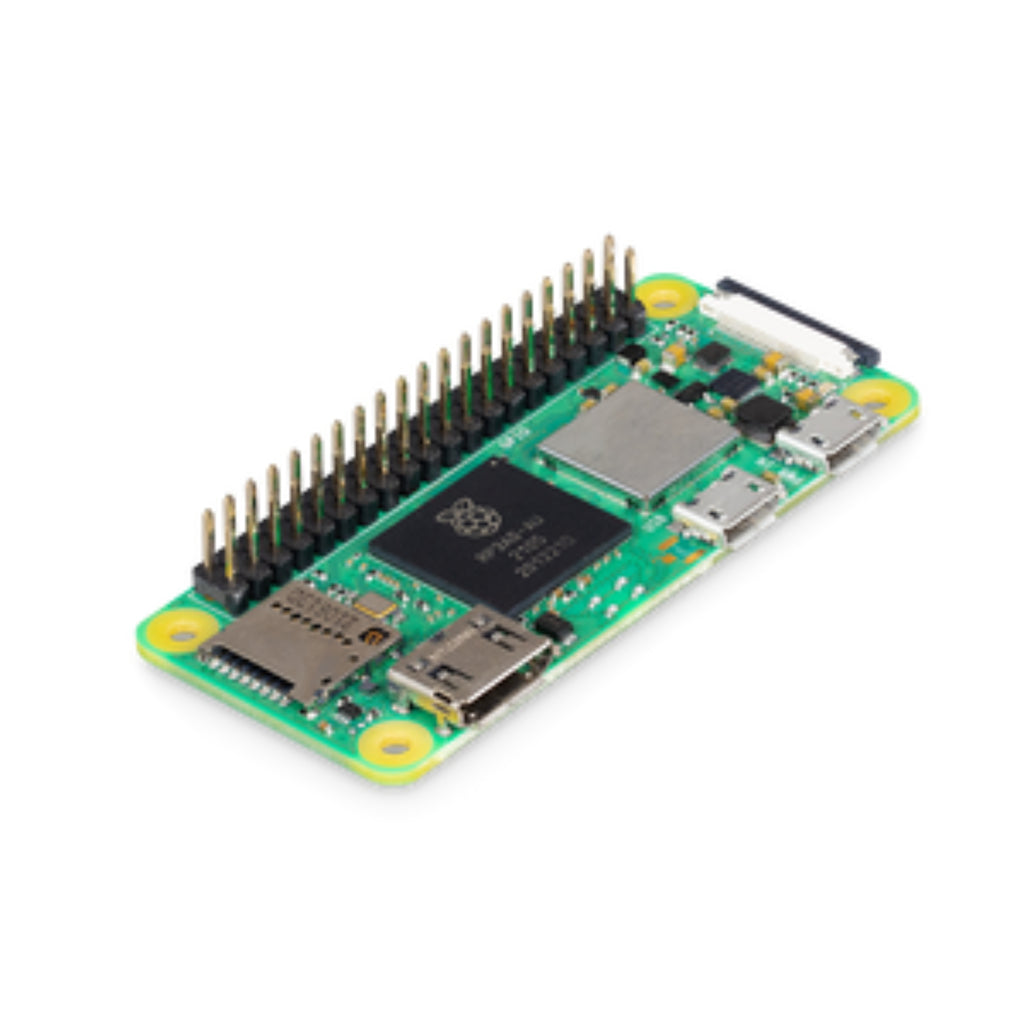

Raspberry Pi Zero 2W With Headers

Raspberry Pi Zero 2 W With Headers is a compact, low-cost single-board computer that delivers a significant performance upgrade over the original Raspberry Pi Zero while retaining the same small form factor. Powered by a quad-core ARM Cortex-A53 processor and equipped with pre-soldered GPIO headers, it is ready for immediate use in prototyping and embedded projects. With built-in Wi-Fi and Bluetooth, HDMI output, and broad software support via Raspberry Pi OS, the Zero 2 W is ideal for space-constrained applications, wireless projects, and educational use.

Technical Specifications:

• Processor: Broadcom BCM2710A1 quad-core ARM Cortex-A53 (64-bit)
• Clock Speed: Up to 1.0 GHz
• RAM: 512 MB LPDDR2 SDRAM
• Wireless: 2.4 GHz IEEE 802.11 b/g/n Wi-Fi, Bluetooth 4.2, BLE
• Video Output: Mini HDMI (up to 1080p)
• USB: Micro-USB OTG
• Storage: microSD card slot
• GPIO: 40-pin header (pre-soldered)
• Camera Interface: CSI camera connector
• Power Input: 5 V via Micro-USB
• Form Factor: Raspberry Pi Zero form factor

Features:

• Quad-core CPU delivers up to 5× performance over Raspberry Pi Zero
• Pre-soldered headers for instant prototyping
• Built-in Wi-Fi and Bluetooth connectivity
• Extremely compact and lightweight design
• Low power consumption suitable for portable projects
• Compatible with Raspberry Pi OS and existing Zero accessories
• Strong community and software ecosystem

Applications:

• IoT and wireless embedded devices
• Robotics and automation controllers
• Smart home and sensor nodes
• Portable and battery-powered projects
• Educational and STEM learning kits
• Camera-based projects and time-lapse systems
• DIY electronics and prototyping
