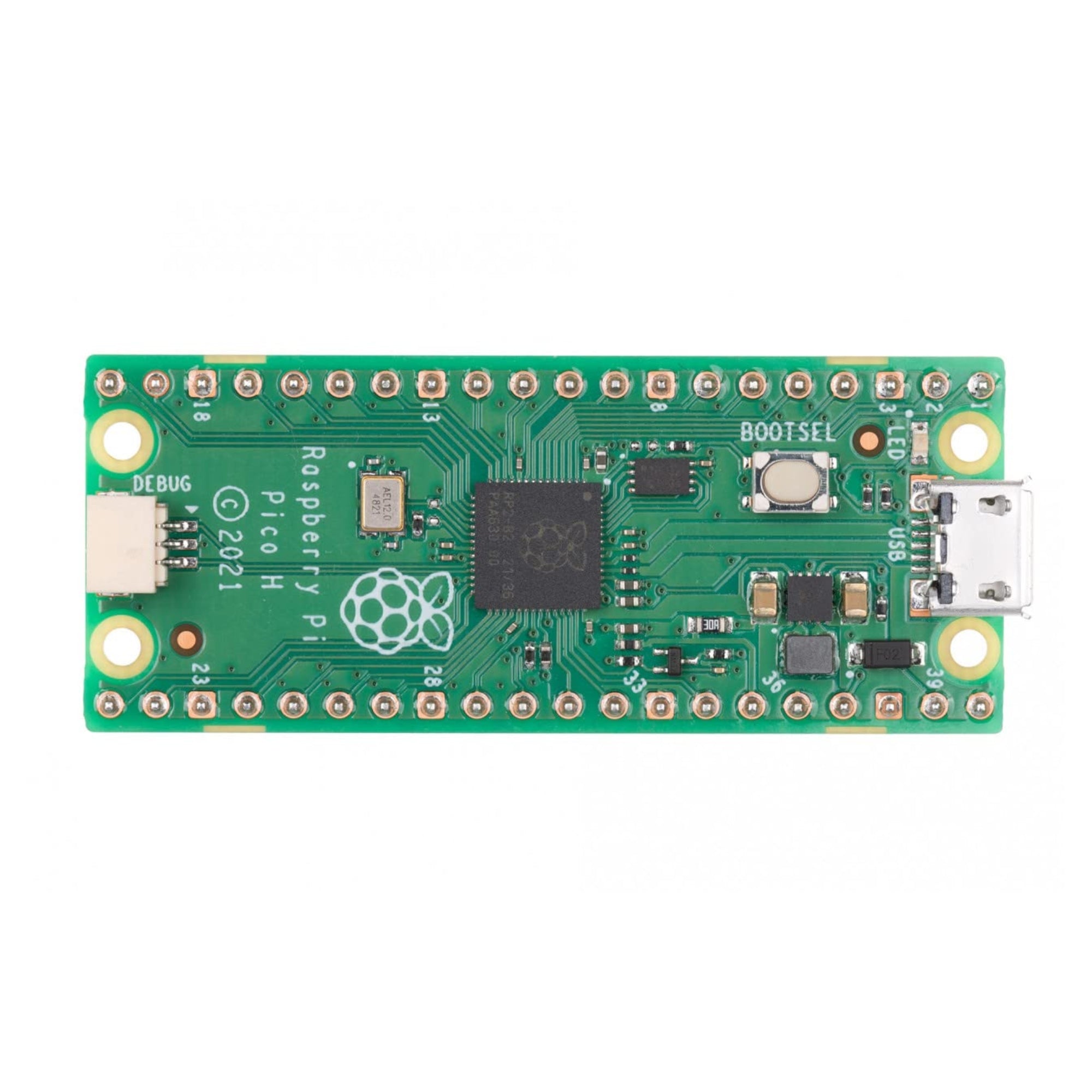

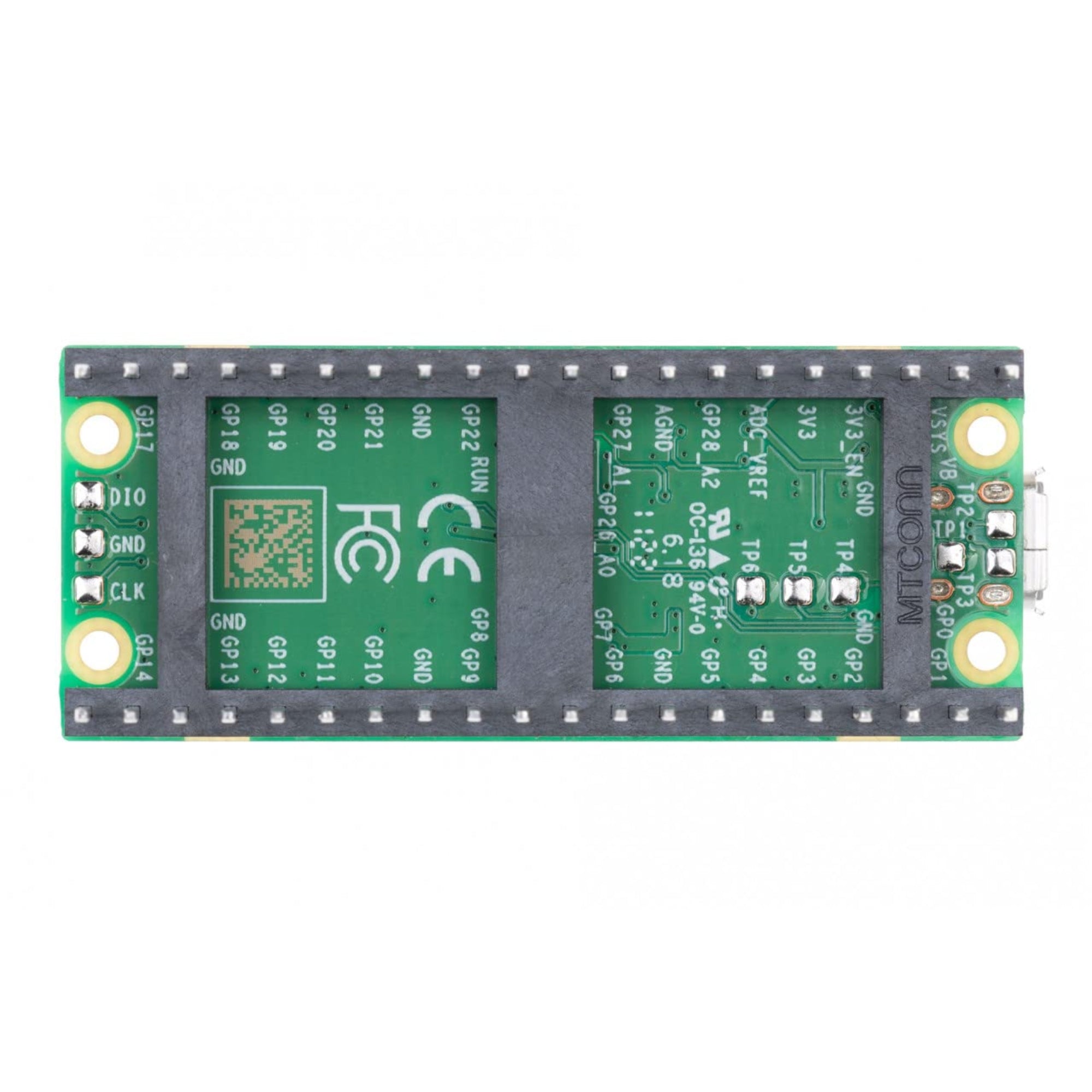

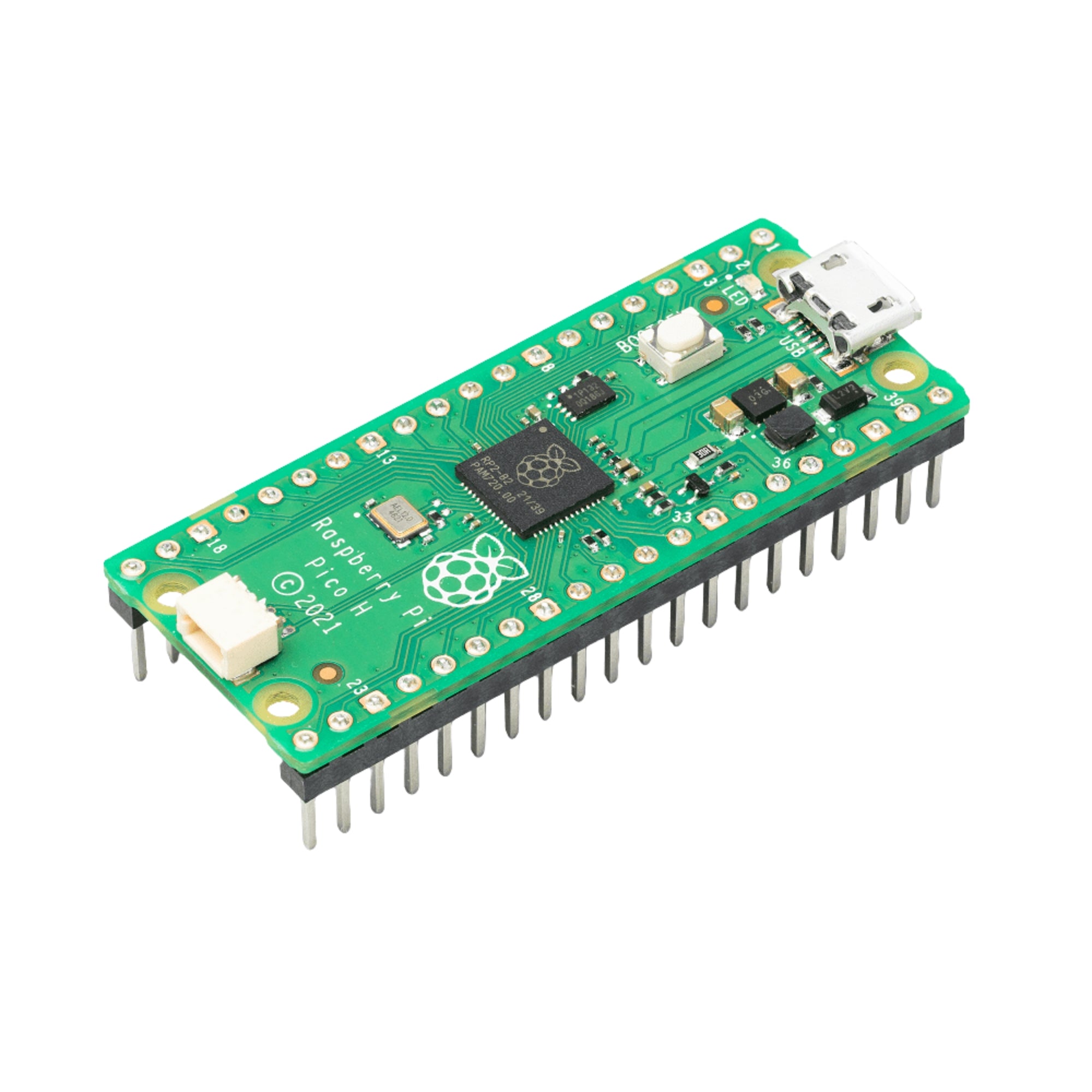

Raspberry Pi Pico H

Raspberry Pi Pico H is a compact, high-performance microcontroller development board powered by the RP2040 dual-core ARM Cortex-M0+ processor. It is the header-soldered variant of the Raspberry Pi Pico, making it ready for immediate use on breadboards and prototyping platforms without any additional soldering. Designed for embedded systems, IoT applications, robotics, and electronics education, the Pico H supports development using MicroPython as well as C/C++ SDK. With rich GPIO capabilities, programmable I/O, USB connectivity, and low power consumption, it is suitable for both beginners and professional developers looking for a reliable and flexible microcontroller solution.

Technical Specifications:

• Microcontroller: RP2040 dual-core ARM Cortex-M0+
• Clock Speed: Up to 133 MHz
• SRAM: 264 KB on-chip
• Flash Memory: 2 MB QSPI flash
• Operating Voltage: 1.8 V – 5.5 V (via VSYS)
• Logic Level: 3.3 V
• GPIO Pins: 26 multifunction GPIOs
• PWM: 16 channels
• ADC: 3 × 12-bit ADC channels
• Communication Interfaces: 2 × UART, 2 × SPI, 2 × I²C
• USB: Micro-USB 1.1 (device and host)
• Debug Interface: SWD (Serial Wire Debug)
• Form Factor: 40-pin DIP with pre-soldered headers

Features:

• Dual-core processor enables parallel task execution
• Pre-soldered headers allow instant prototyping
• Programmable I/O (PIO) for custom peripheral control
• On-board temperature sensor
• USB drag-and-drop programming support
• Low power consumption for embedded applications
• Extensive community support and documentation

Applications:

• IoT and smart electronics projects
• Robotics and motor control systems
• Sensor interfacing and data acquisition
• Home automation controllers
• Educational and STEM learning kits
• USB-based embedded devices
• Rapid prototyping and product development
