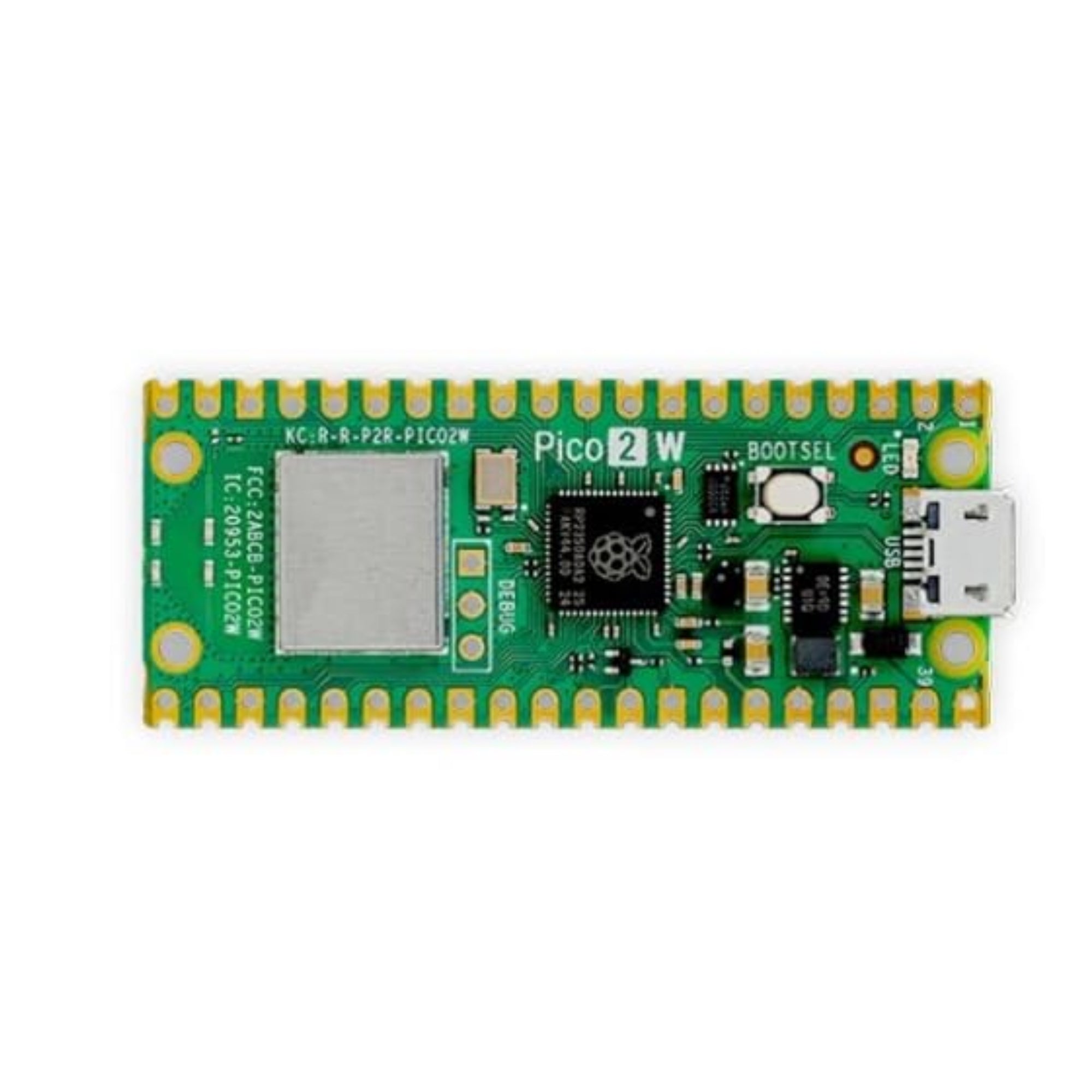

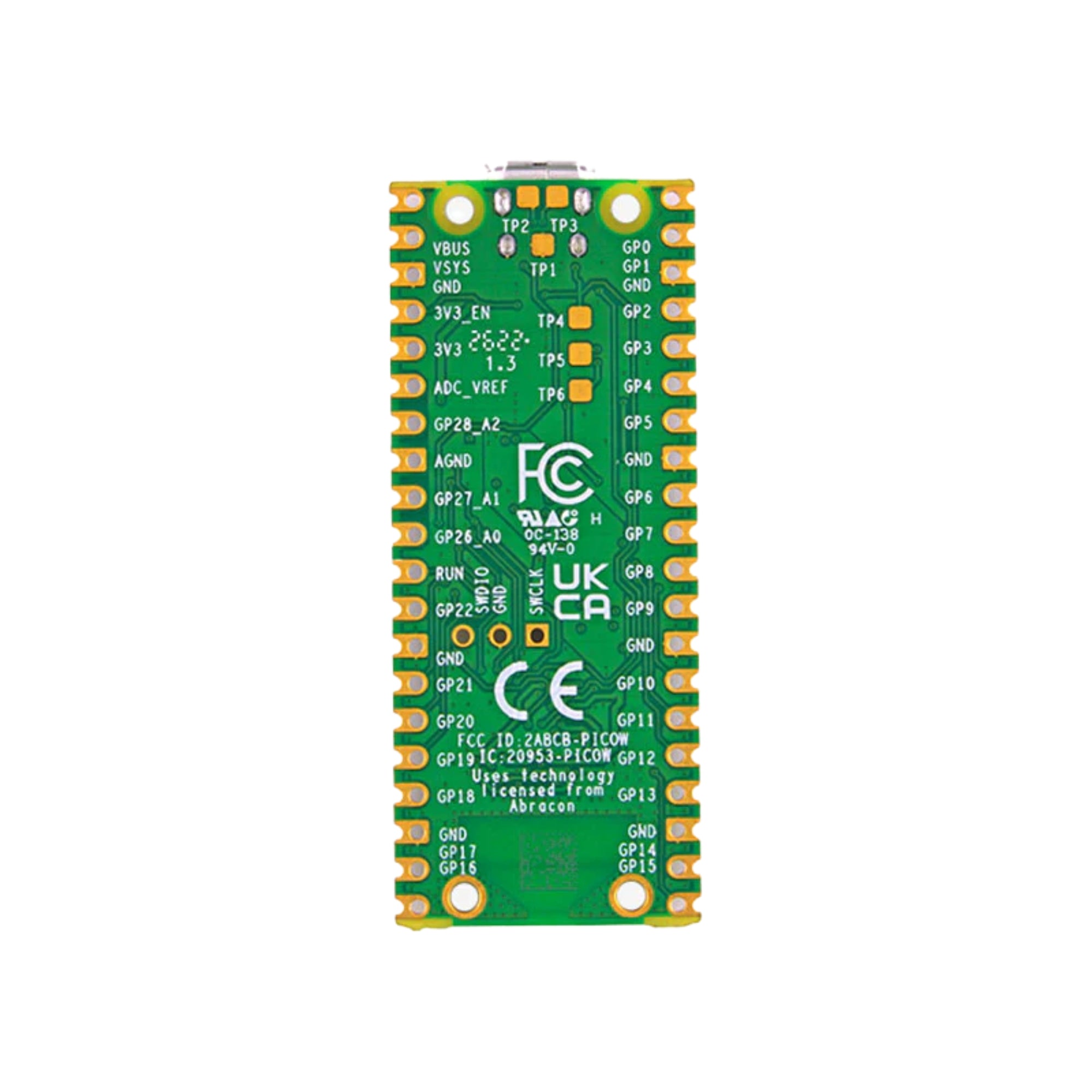

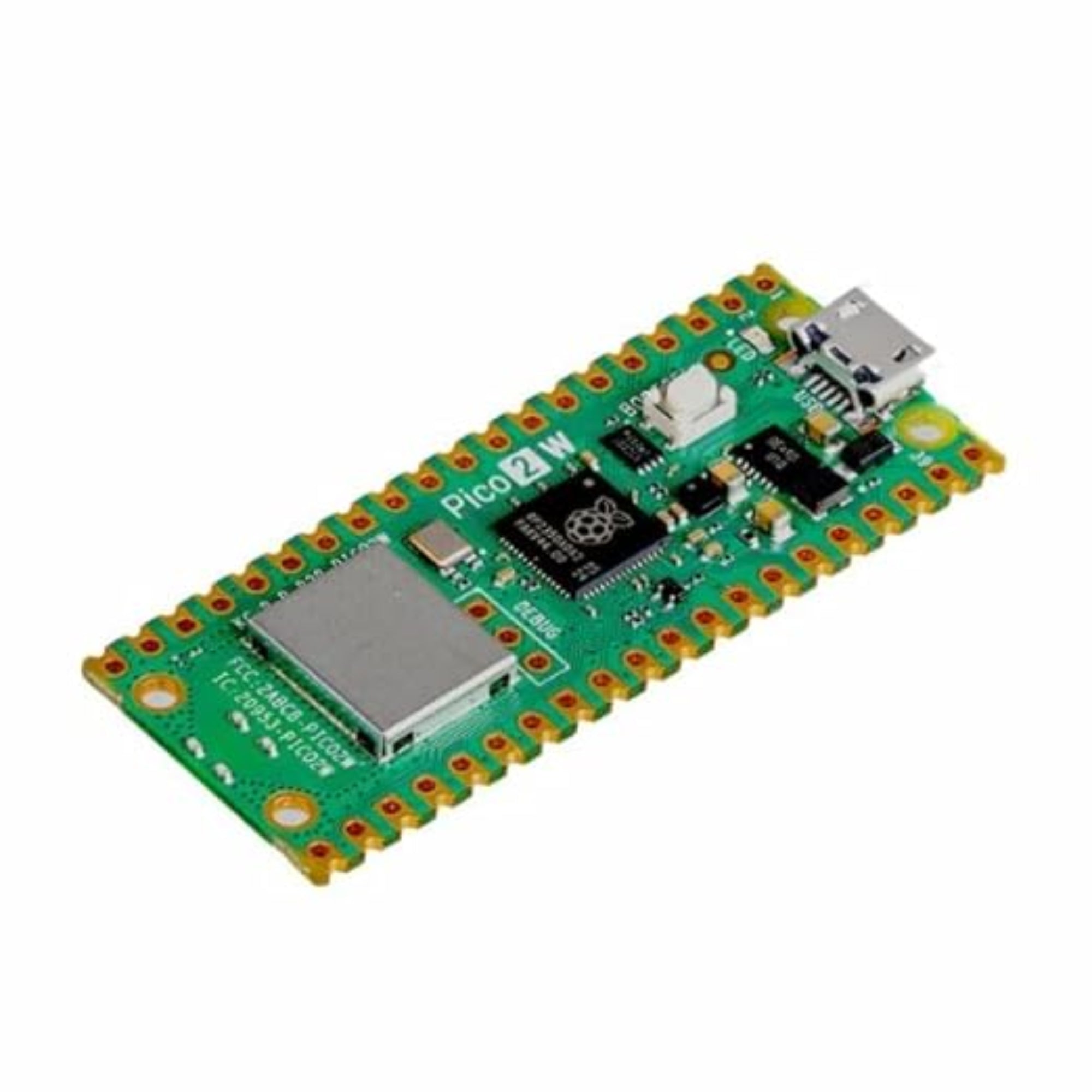

Raspberry Pi Pico 2W

Raspberry Pi Pico 2 W is a compact, high-performance wireless microcontroller board designed for modern embedded and IoT applications. It builds on the Pico family with a next-generation microcontroller, higher performance, and integrated wireless connectivity, while retaining the familiar Pico form factor. With built-in Wi-Fi and Bluetooth, rich GPIO capability, and support for MicroPython and C/C++, Pico 2 W is well suited for connected devices, rapid prototyping, and educational use.

Technical Specifications

• Microcontroller: RP2350
• CPU: Dual-core Arm Cortex-M33 (64-bit capable)
• Clock Speed: Up to 150 MHz
• SRAM: 520 KB on-chip
• Flash Memory: 4 MB QSPI flash
• Wireless: 2.4 GHz Wi-Fi 802.11 b/g/n, Bluetooth 5.2 / BLE
• Operating Voltage: 1.8 V – 5.5 V (VSYS)
• Logic Level: 3.3 V
• GPIO Pins: 26 multifunction GPIOs
• PWM: 16 channels
• ADC: 4 × 12-bit ADC channels
• Communication Interfaces: 2 × UART, 2 × SPI, 2 × I²C
• USB: USB 1.1 with device and host support
• Debug Interface: SWD
• Form Factor: 40-pin DIP Pico standard

Features

• Integrated Wi-Fi and Bluetooth for wireless applications
• Significant performance upgrade over previous Pico W
• Dual-core processing for multitasking
• Programmable I/O (PIO) for custom interfaces
• Low power operation for battery-powered projects
• USB drag-and-drop programming
• Extensive documentation and community support

Applications

• IoT and smart device development
• Wireless sensor nodes and data loggers
• Home automation and control systems
• Robotics and motor control
• Wearable and portable electronics
• Educational and STEM projects
• Rapid prototyping of connected products
