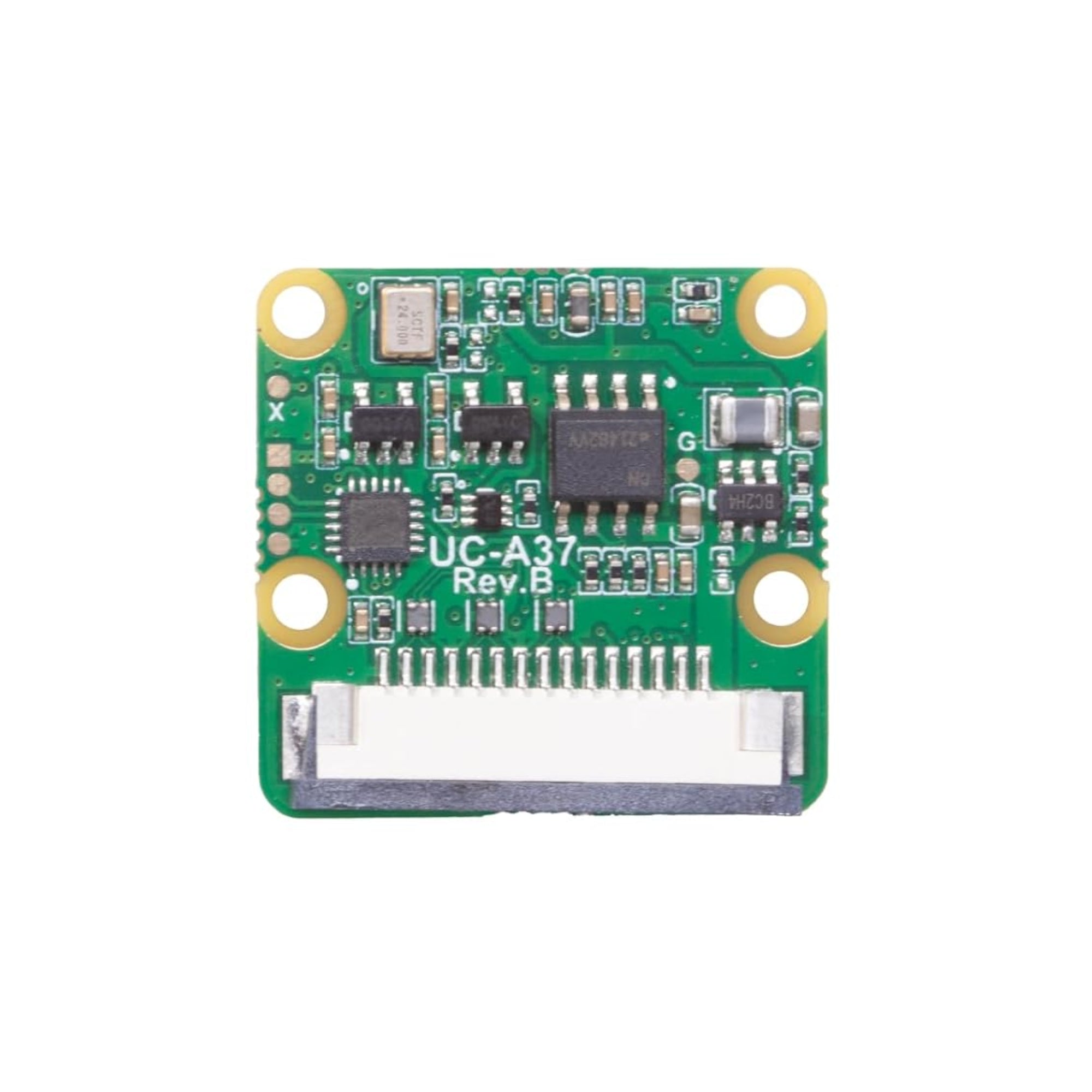

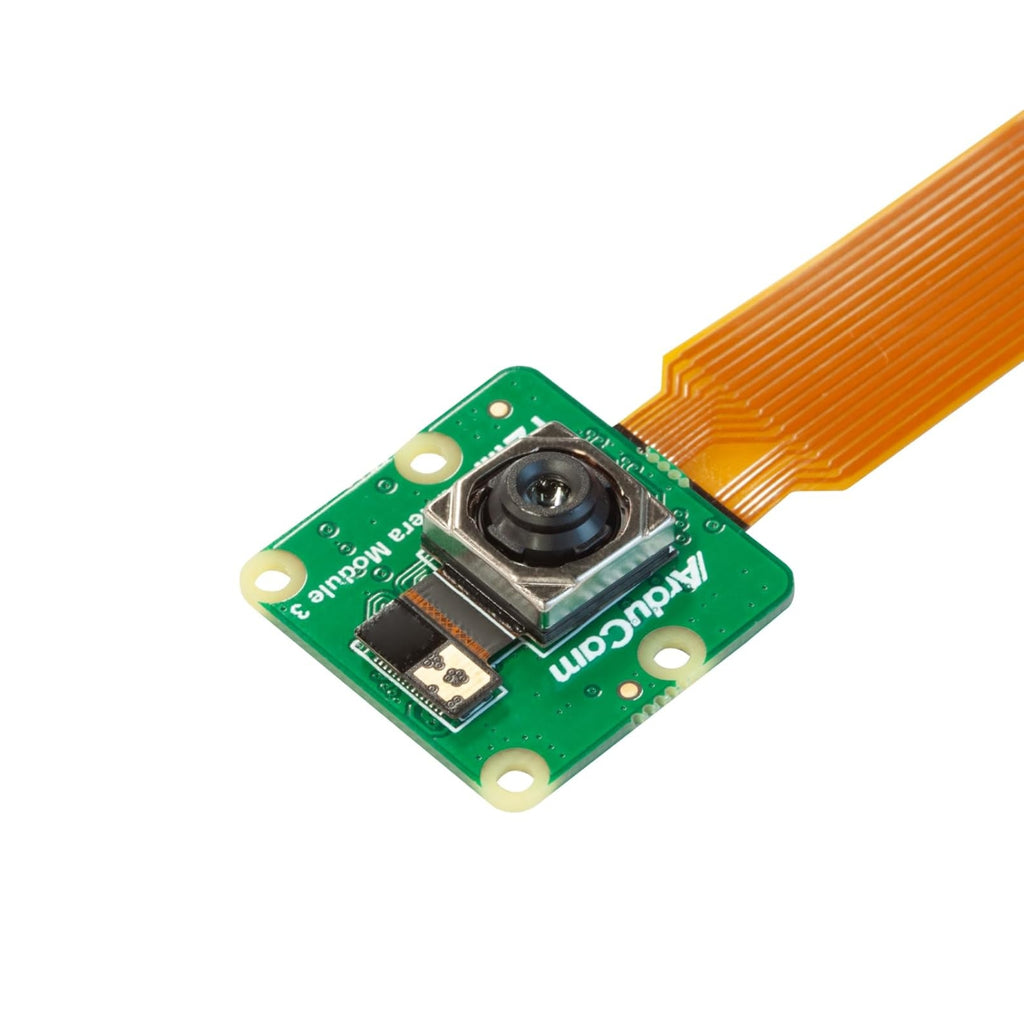

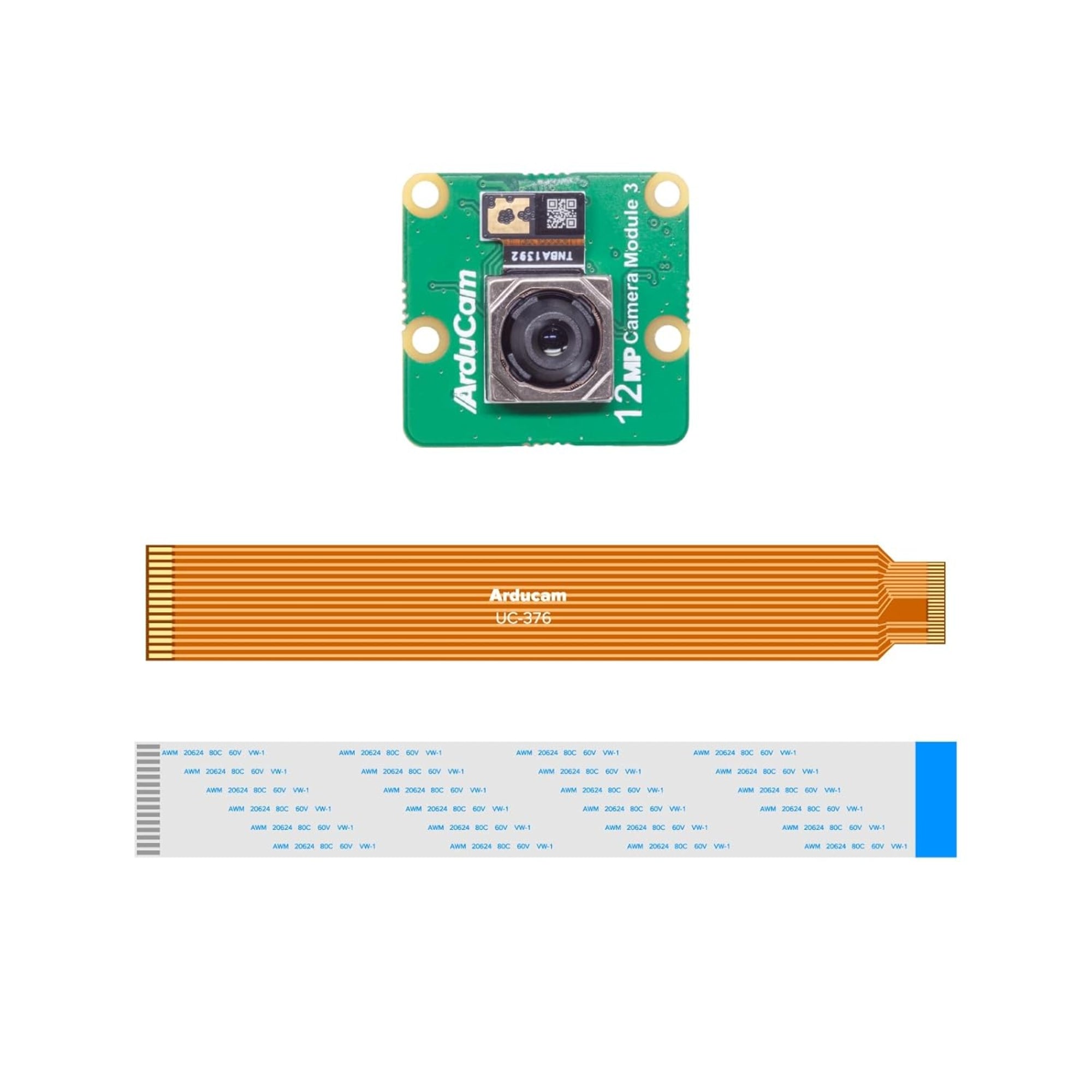

Raspberry Pi Camera Module 3

Raspberry Pi Camera Module 3 is a compact, high-quality camera designed specifically for Raspberry Pi single-board computers. It features a 12-megapixel Sony image sensor with improved image quality, fast autofocus, and high dynamic range compared to earlier camera modules. The module connects directly to the Raspberry Pi via the CSI interface and is ideal for capturing still images and videos in embedded vision applications. Available in standard and wide-angle variants, Camera Module 3 is suitable for both close-up imaging and wide field-of-view use cases.

Technical Specifications:

• Image Sensor: Sony IMX708 CMOS sensor
• Resolution: 12.3 megapixels (4608 × 2592)
• Sensor Size: 1/2.43 inch
• Pixel Size: 1.4 µm
• Autofocus: Phase Detection Autofocus (PDAF)
• Field of View: Standard (~66°) / Wide (~102°)
• Video Modes: 1080p50, 720p100, 480p120
• Still Image Formats: JPEG, RAW (DNG)
• Interface: MIPI CSI-2
• Supported Boards: Raspberry Pi 5, 4, 3, Zero series (with adapter)
• Operating Voltage: Powered via Raspberry Pi CSI interface

Features:

• High-resolution 12 MP sensor for detailed images
• Fast and accurate autofocus for dynamic scenes
• Improved low-light performance and HDR support
• Compact and lightweight design
• Seamless integration with Raspberry Pi hardware
• Supported by Raspberry Pi OS and libcamera stack
• Available in standard and wide-angle versions

Applications:

• Computer vision and image processing projects
• Robotics and autonomous systems
• Surveillance and security cameras
• AI and machine learning vision applications
• Time-lapse photography and video recording
• Educational and STEM projects
• Smart home and IoT imaging solutions
