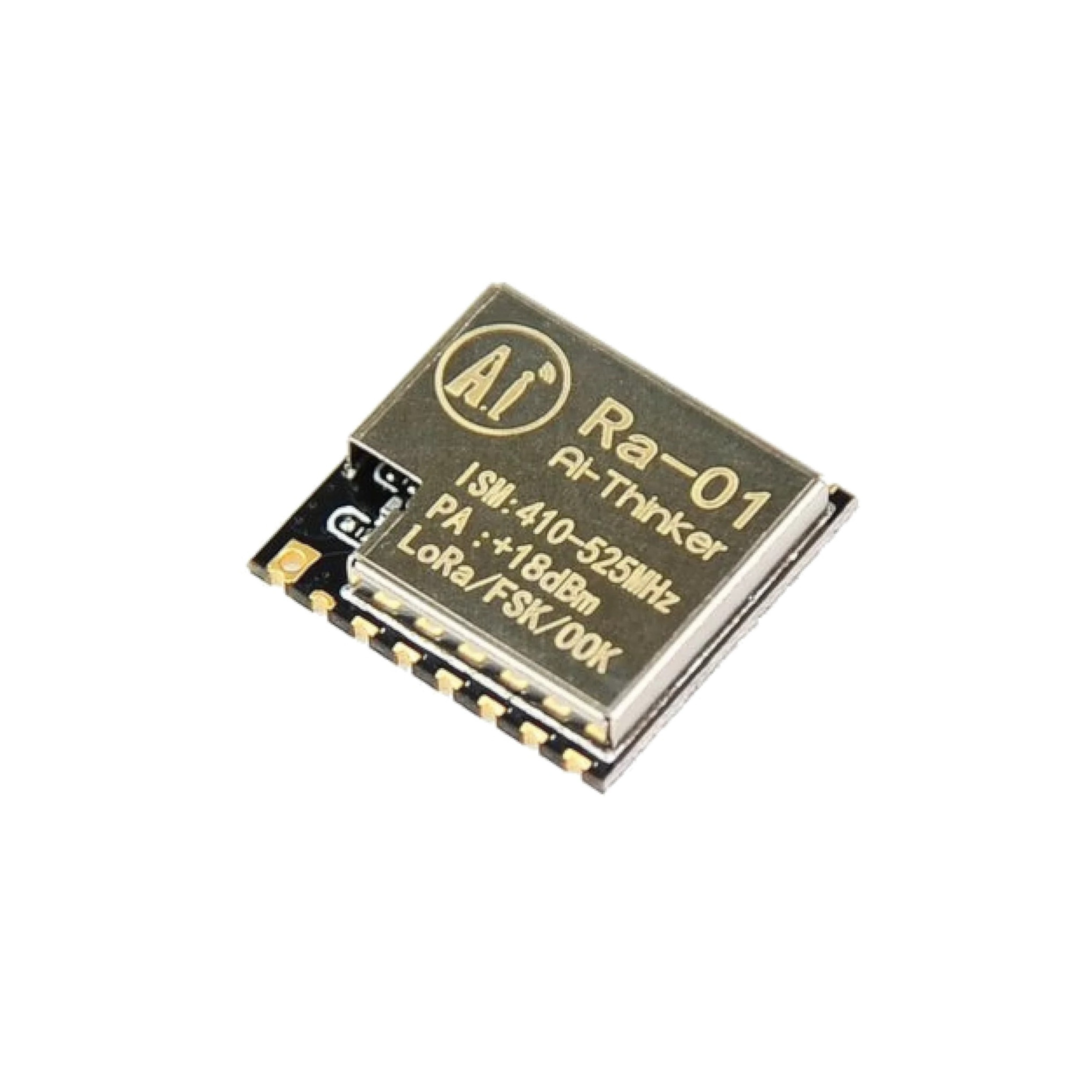

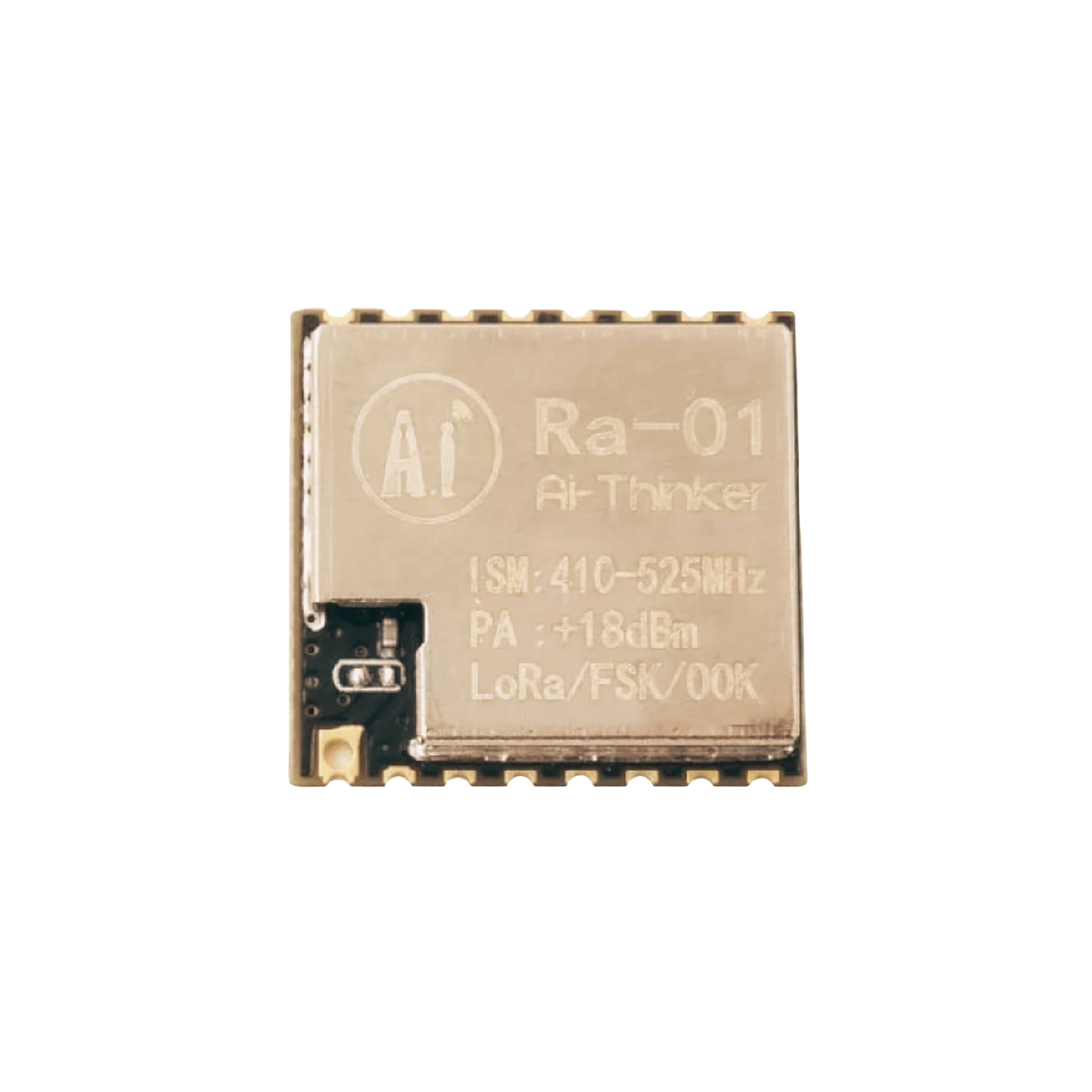

RA-01 LoRa RF Module (Ai-Thinker)

The RA-01 LoRa module by Ai-Thinker is a compact, high-performance wireless communication module based on the Semtech SX1278 LoRa transceiver. It operates in the ISM band (typically 410–525 MHz) and is designed for long-range, low-power communication applications. The module supports LoRa, FSK, and OOK modulation, enabling flexible wireless solutions for IoT systems. Its small size and SPI interface make it easy to integrate with microcontrollers for reliable long-distance data transmission.

Technical Specifications:

• Module Type: LoRa RF Transceiver Module

• Core Chipset: SX1278 (Semtech)

• Frequency Range: 410 – 525 MHz (typically 433 MHz band)

• Modulation: LoRa / FSK / OOK

• Output Power: Up to +18 dBm

• Communication Interface: SPI

• Supply Voltage: 1.8V – 3.7V (typical 3.3V)

• Sensitivity: Up to −140 dBm (LoRa mode)

• Data Rate: 0.3 kbps – 37.5 kbps (LoRa dependent)

• Antenna Interface: External antenna pad / IPEX (variant dependent)

• Operating Temperature: −40°C to +85°C

Features:

• Long-range communication (several kilometers in open areas)

• Ultra-low power consumption suitable for battery devices

• High receiver sensitivity for reliable signal reception

• Supports multiple modulation modes (LoRa, FSK, OOK)

• Compact SMD design for embedded applications

• SPI interface for easy integration with microcontrollers

• Strong anti-interference capability

• Adjustable transmission power

Applications:

• IoT (Internet of Things) networks

• Wireless sensor networks

• Smart agriculture systems

• Remote monitoring and telemetry

• Industrial control systems

• Smart city infrastructure

• Home automation and automation systems

• Long-range data communication projects
