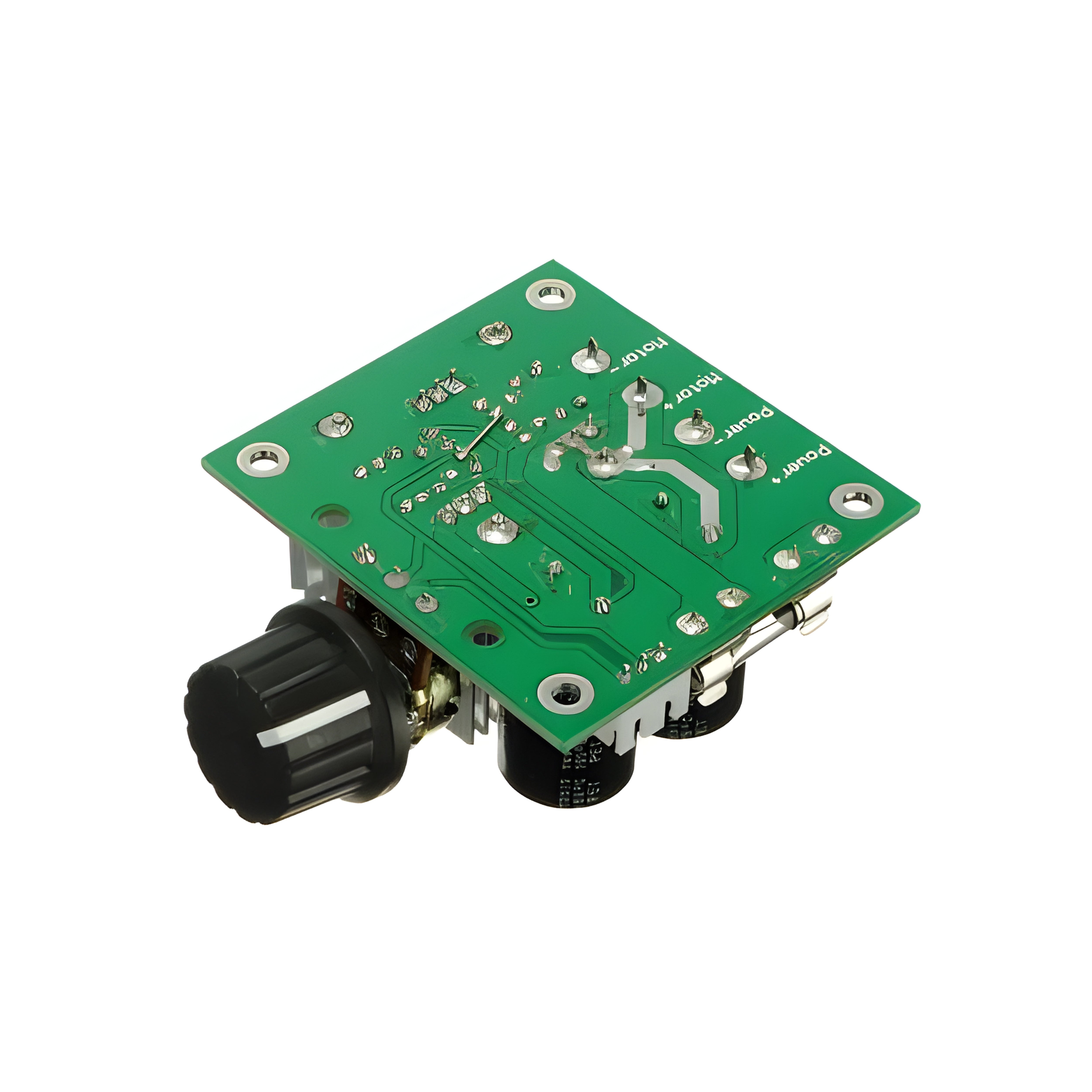

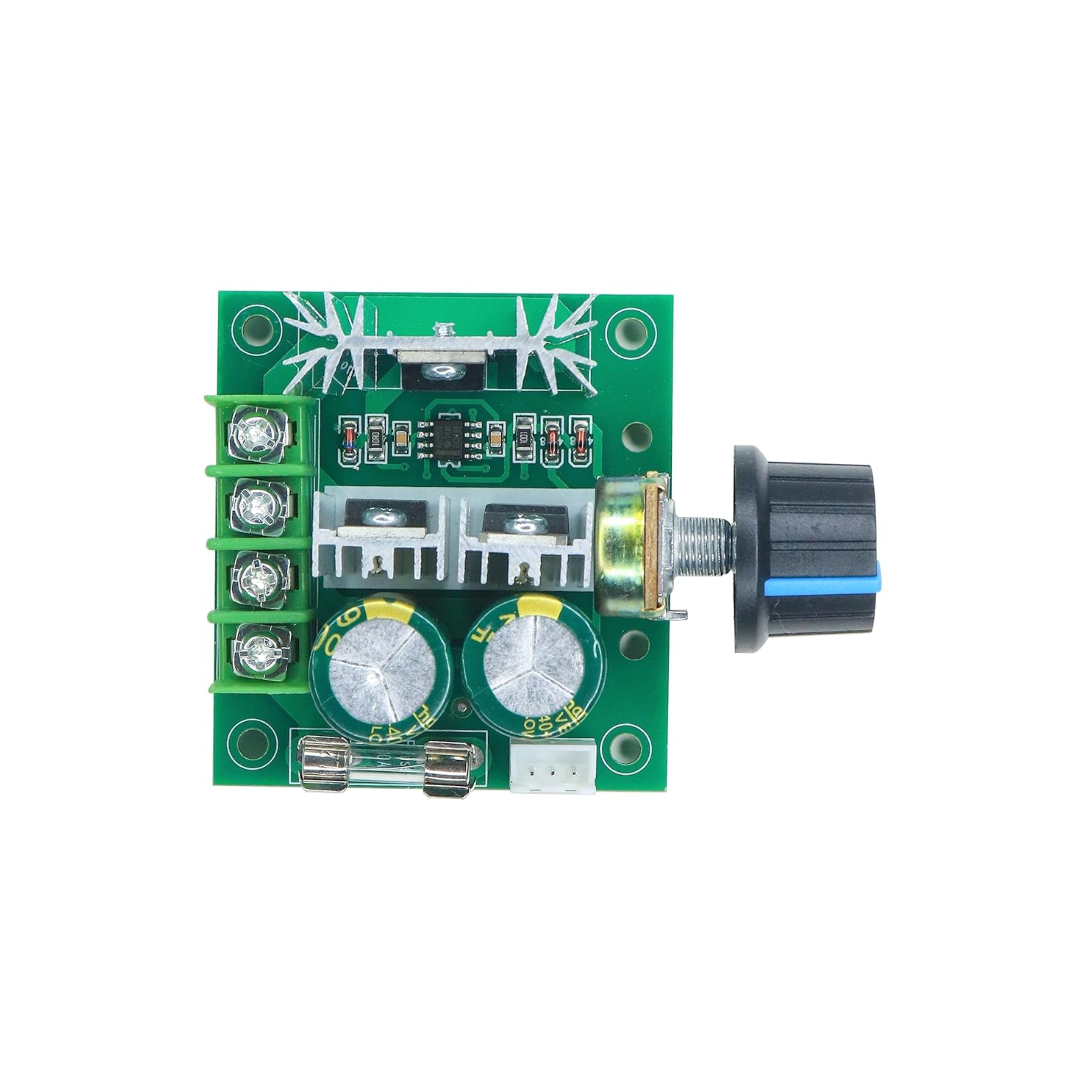

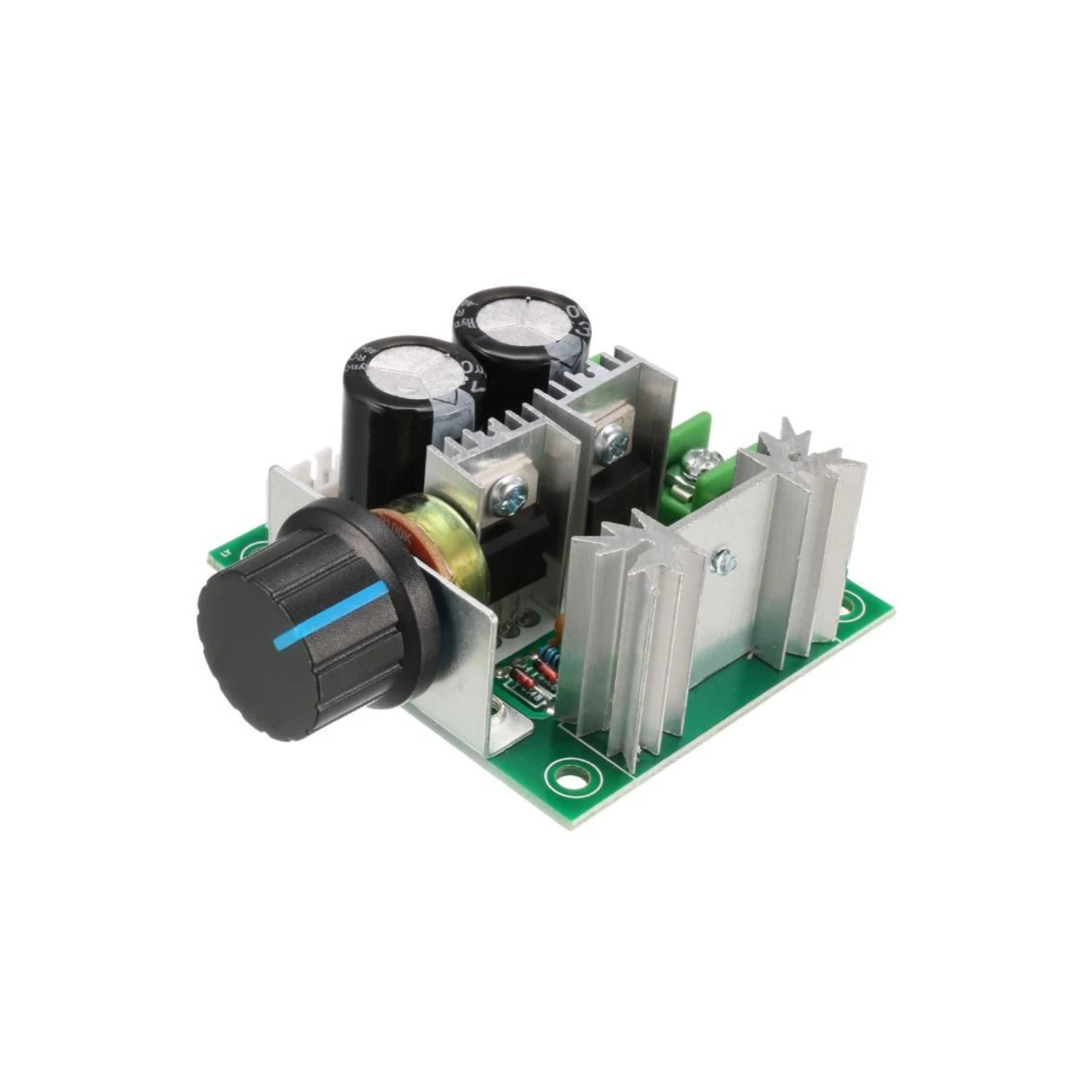

PWM Speed Controller (12V / 10A)

The PWM (Pulse Width Modulation) Speed Controller is an electronic module designed to control the speed of brushed DC motors by varying the duty cycle of the input voltage. It provides smooth and efficient speed regulation without significant power loss, making it ideal for applications requiring precise motor control. The module typically includes a rotary potentiometer for manual speed adjustment and built-in protection features for safe operation.

Technical Specifications:

• Input Voltage: 12V – 40V DC

• Maximum Current: 10A (continuous ~8A)

• Maximum Power: Up to 400W

• PWM Frequency: ~13 kHz

• Duty Cycle: 10% – 100% adjustable

• Control Method: Potentiometer (rotary knob)

Features:

• Smooth and precise speed control using PWM technique

• High efficiency with low heat generation

• Wide input voltage range for flexible applications

• Compact design with onboard potentiometer

• Built-in protection (reverse polarity and overload)

• Stable performance with minimal noise

• Suitable for continuous motor operation

Applications:

• DC motor speed control in robotics and automation

• Fan speed regulation

• Pump and blower control

• DIY electronics and hobby projects

• Conveyor systems and small machinery

• Light dimming (for compatible loads)

• Battery-powered motor control systems
